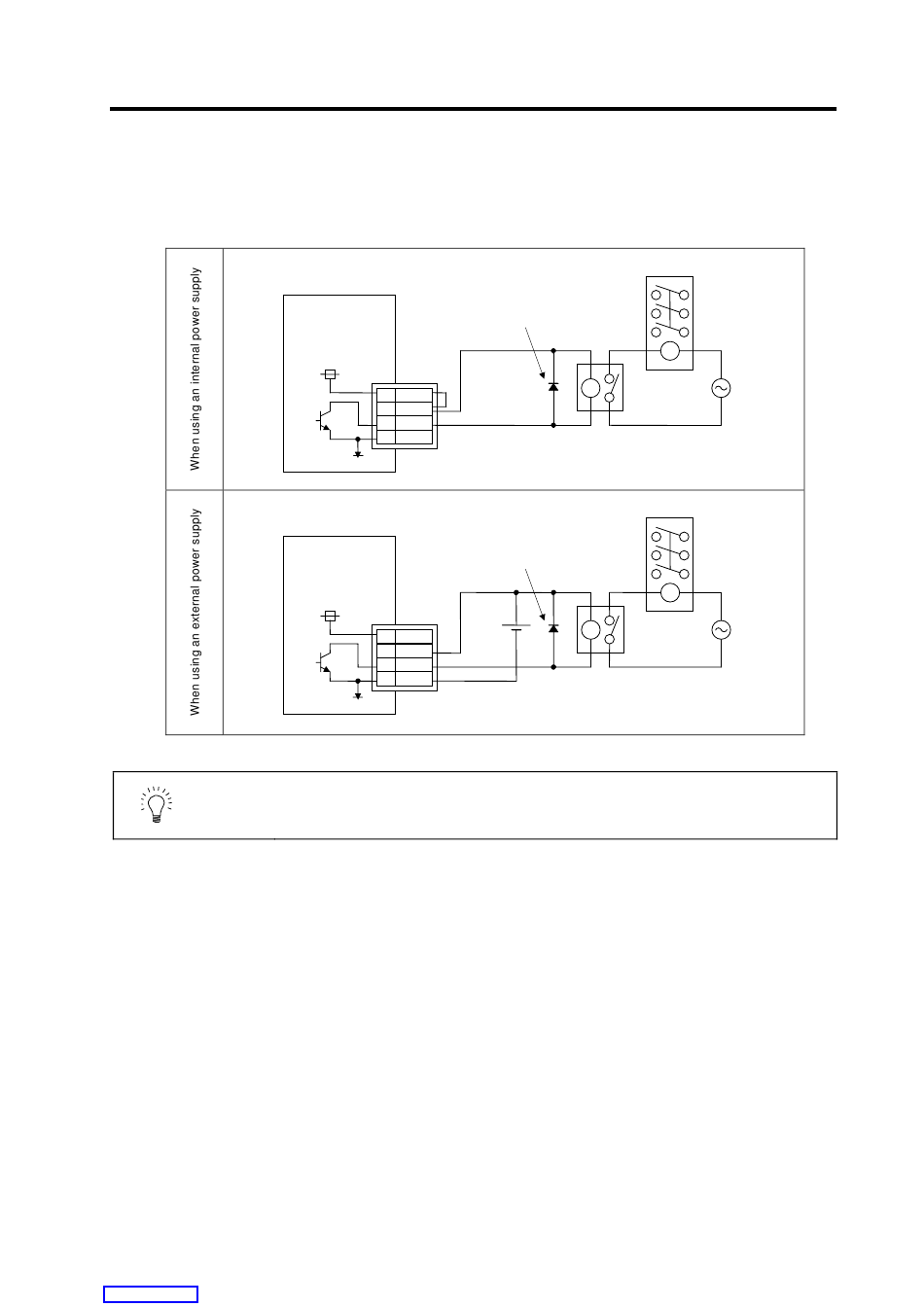

7-7-2 Contactor control signal (MC) output circuit

A relay or photo coupler can be driven. When using an inductive load, install a diode.
(Tolerable current: 40mA or less, rush current: 100mA or less)
Downloaded from
ManualsNet.com
MDS-R-V1/V2
24VDC
MDS-R-V1/V2
24VDC
When using the internal power supply, the power can be directly connected to
VDD if using only the digital output (MC, MBR). When using the digital input
POINT
(EMGX), always connect across VDD-COM.
search engine
7. Wiring and Connection
The servo drive unit will
fail if the diode polarity is
incorrect.
CN9
10 VDD
5
COM
15
MC
3
SG
The servo drive unit will
fail if the diode polarity is
incorrect.
CN9
10 VDD
27VDC
5
COM
or less
15
MC
3
SG
7 - 15
Contactor
Contactor control relay
(There are also types that
are built into the contactor.)
Contactor
Contactor control relay
(There are also types that
are built into the contactor.)
