Parallel Board Setting And Power Module - INFOSEC Mod5T User Manual

甲、 9.2. Parallel Board Setting and Power Module
9.2.1 Install Power Module of Rack1
1. The parallel board(s) of the Rack 1, the SW2 must be set at the right side. Please refer to the
figure 9-2 as below.
Warning:
For the cabinets which can insert more than 5 power modules, there are two parallel boards
inside the cabinets. These two SW2s have to be adjusted simultaneously.
2. Refer to Table 2-1 to set the module address.
9.2.2 Install Power Module of Rack2
1. For the parallel board(s) of the Rack 2, the SW2 must be to switch to the left side, please refer
to Figure 9-3 below.
Warning:
For the cabinets which can contain more than 5 power modules, there are two parallel boards
inside the cabinets. These two SW2s have to be adjusted simultaneously.
2. Refer to Table 2-1 to set the module address.
INFOSEC UPS SYSTEM - 15, rue du Moulin - 44880 Sautron - FRANCE - www.infosec-ups.com
Hot Line – Tel + 33 (0)2 40 76 15 82 - Fax + 33 (0)240 94 29 51 - hotline@infosec.fr – 03 17 AA 59 201 24

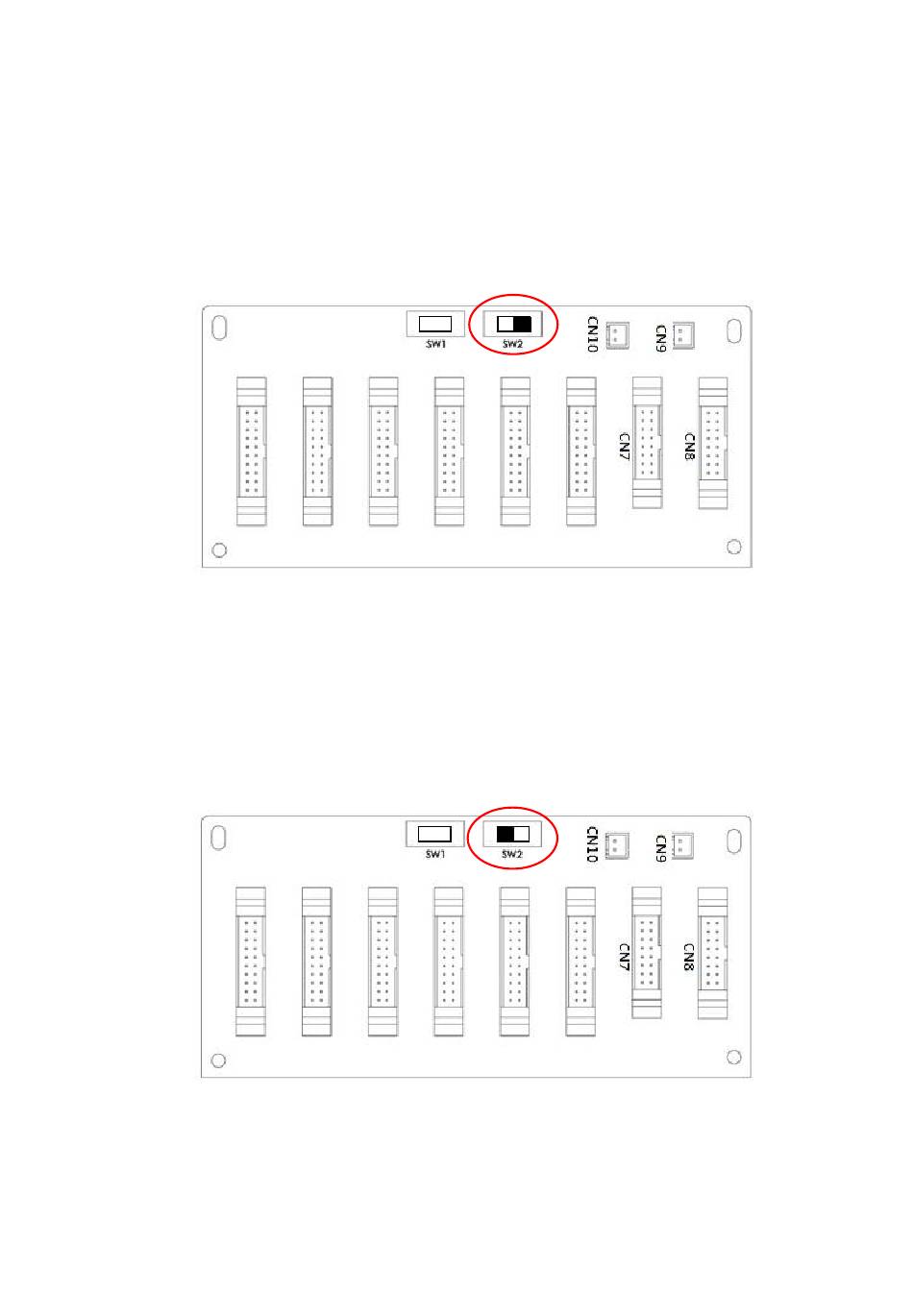

Figure 9-2 Rack 1 SW2 set to the right side
