INFOSEC Mod5T User Manual page 68

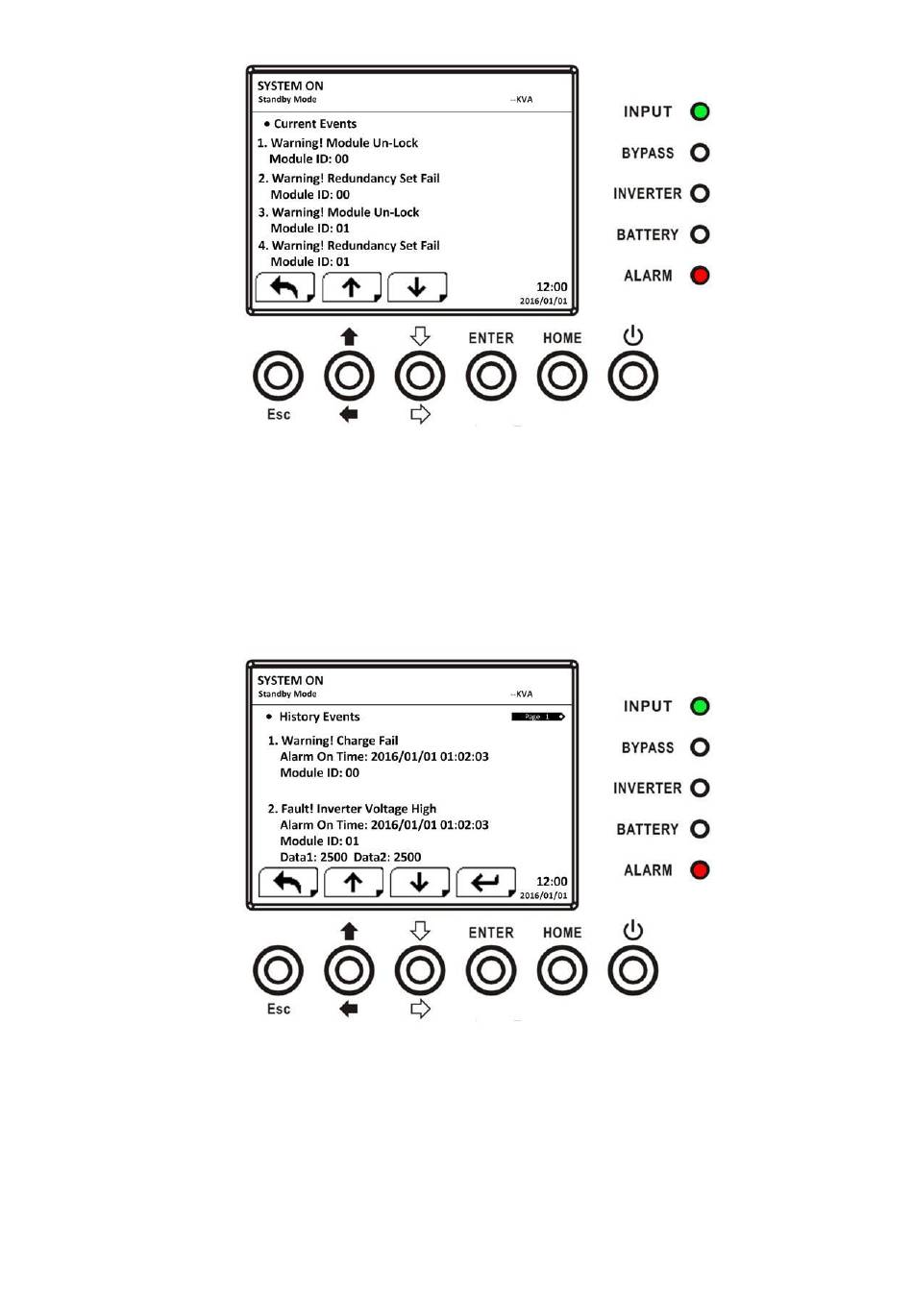

Figure 4-40 Current Events screen
4.2.8.2 History Events
The detailed event information is saved in history events. It can save up to 500 events in history
events. When warning occurs, it will display alarm code, alarm time and Module ID. When fault
event occurs, it will display alarm code, alarm time, Module ID and data 1~2. (Refer to Table
4-12 Alarm List) In order to record more historical information about the UPS system, the
important setting changed (refer to Table 4-13 Important setting changed), UPS operation mode
changes (refer to Table 4-14 UPS mode change) and control action executes (refer to Table
4-15 Control execution) will be saved in History Events. Refer to Figure 4-41 for display screen.
Figure 4-41 History Events screen
1.2.8.3 Reset All Events
The Maintainer password is required to enter Reset All Events screen as shown in Figure 4-42.
Then, use LEFT and RIGHT buttons to choose YES or NO. Choose YES and press ENTER button to
reset all events or choose NO to cancel this action as shown in Figure 4-43.
