2.8 Control Panel

2.8.1 LCD Display
Through the graphic LCD display, the user can easily understand the operation mode of UPS. In
addition, the measurement, parameters, versions of firmware and warnings can be browsed in the
friendly interface. For detailed information, please refer to Charter 4.
2.8.2 LED Indicators
LED Color
INPUT Green
BYPASS Yellow
INVERTER Green
BATTERY Red
ALARM Red
INFOSEC UPS SYSTEM - 15, rue du Moulin - 44880 Sautron - FRANCE - www.infosec-ups.com
Hot Line – Tel + 33 (0)2 40 76 15 82 - Fax + 33 (0)240 94 29 51 - hotline@infosec.fr – 03 17 AA 59 201 24

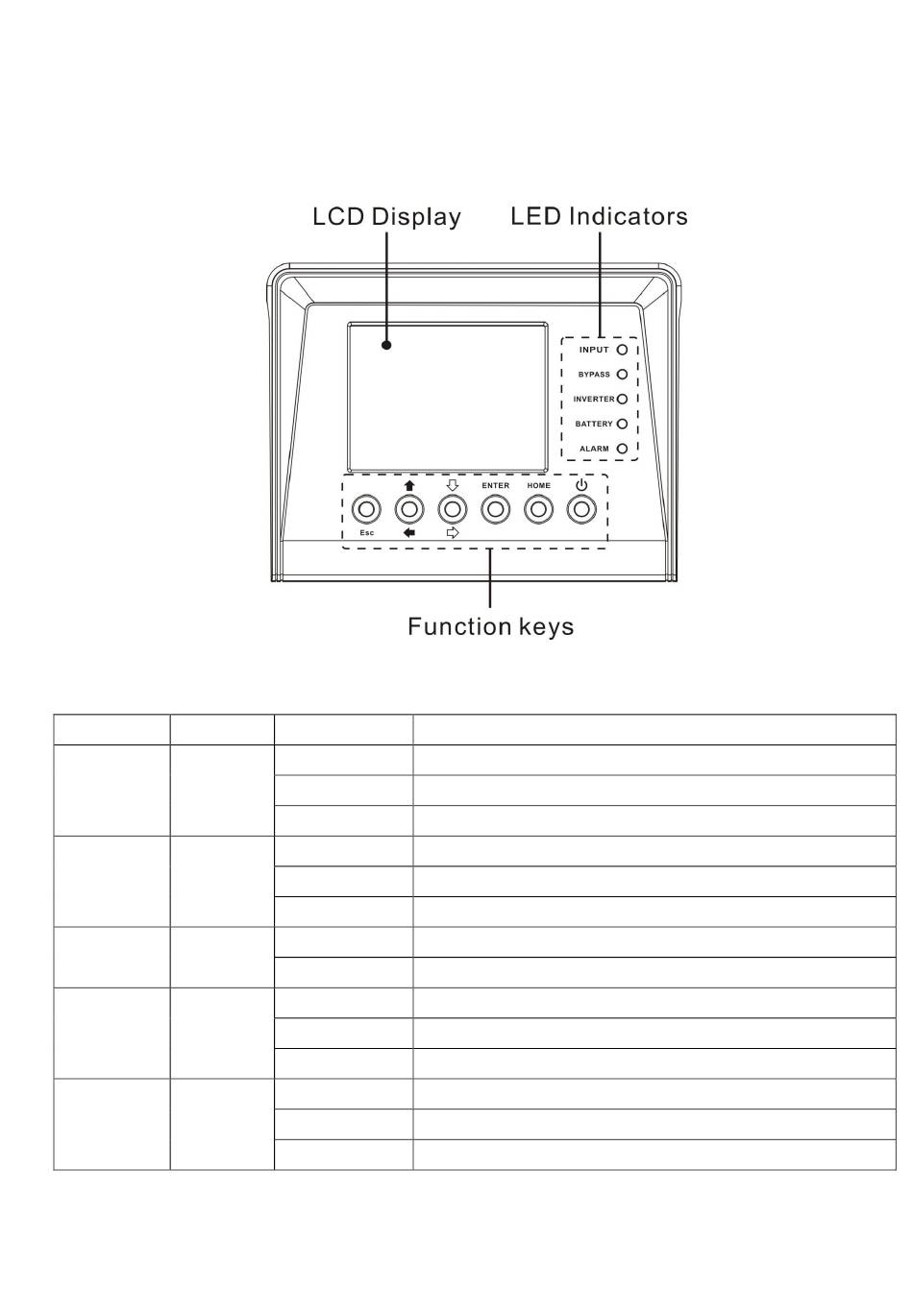

Figure 2-16 Control Panel
Status
On Input source is normal.
Flashing Input source is abnormal (out of limit).
Off No input source
On Load on Bypass.
Flashing Input source is abnormal (out of limit).
Off Bypass not operating.
On Load on inverters.
Off Inverters not operating.
On Load on Battery.
Flashing Low battery
Off Battery converter is normal and battery is charging.
On UPS fault.
Flashing UPS alarm.
Off Normal.
Definition
17
