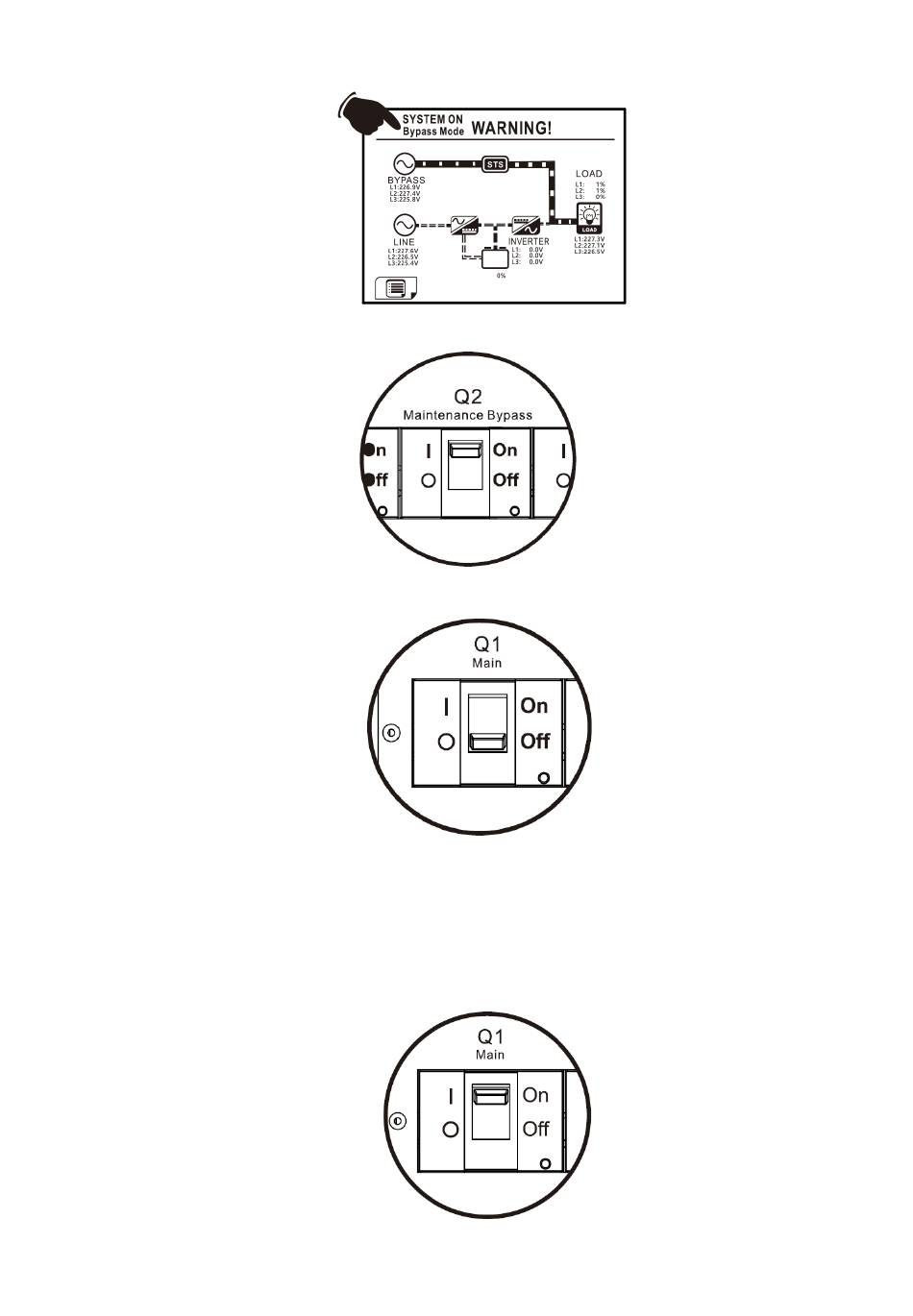

Step 2: Make sure the UPS operates in Bypass mode as shown below.
Step 3: Switch ON the Maintenance Bypass Breaker as shown below.
Step 4: Switch OFF the Main Breaker (Q1) as shown below.
Step 5: It is possible to change the STS module and Power Module.
3.3.3.2 Transfer to UPS Protection
Step 1: Make sure the maintenance is complete. The Power Modules and STS module have been
installed well.
Step 2: Switch ON the Main Breaker (Q1) as shown below.
