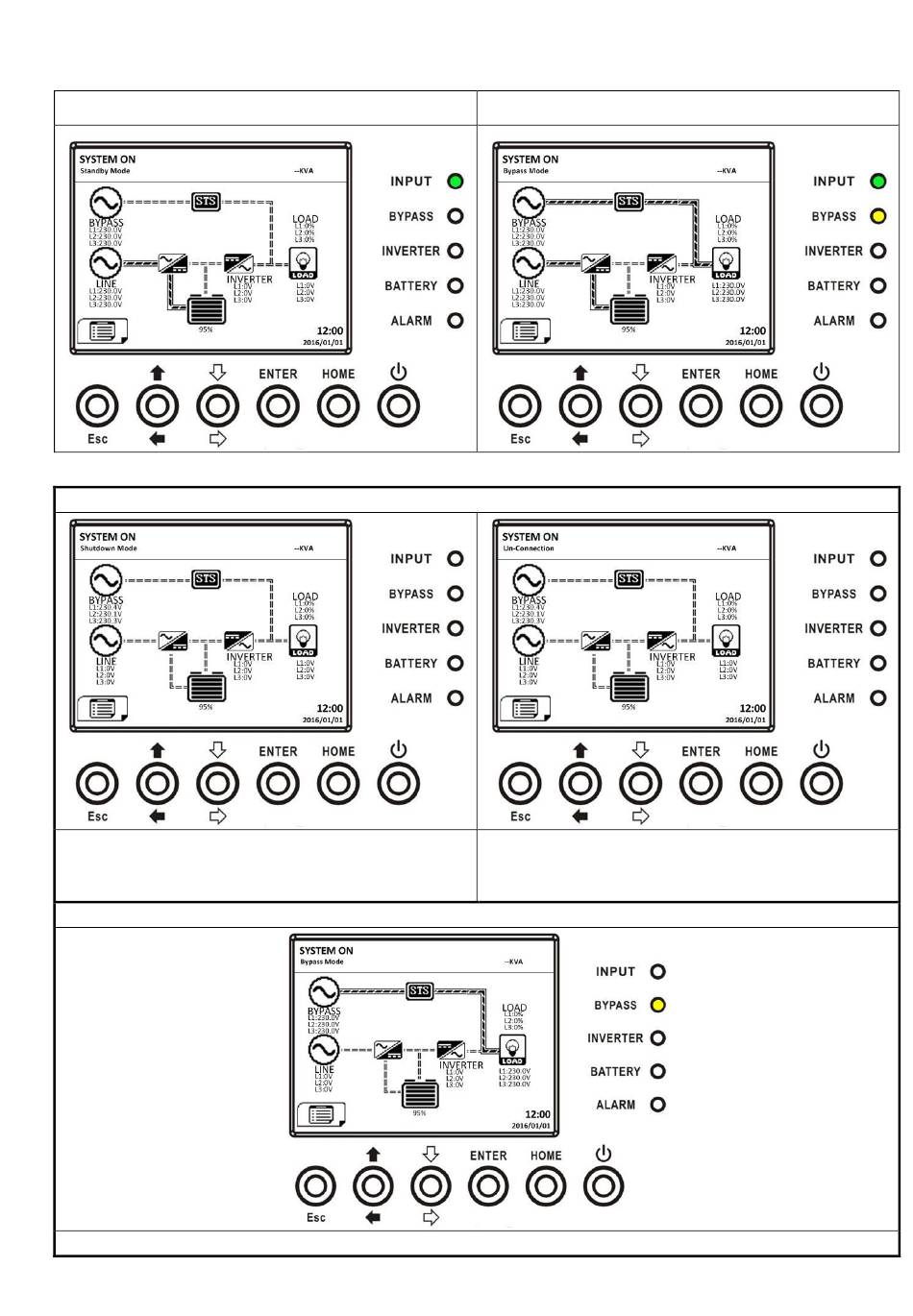

The LCD diagrams are shown below.
Bypass Mode Setting is Disabled
Step 1: Switch OFF the Main Breaker. The LCD diagrams are shown below.
UPS enters Shutdown Mode.
INFOSEC UPS SYSTEM - 15, rue du Moulin - 44880 Sautron - FRANCE - www.infosec-ups.com
Hot Line – Tel + 33 (0)2 40 76 15 82 - Fax + 33 (0)240 94 29 51 - hotline@infosec.fr – 03 17 AA 59 201 24
Bypass Mode Setting is Disabled
Bypass Mode Setting is Enabled
UPS stay in Bypass mode and No AC input is indicated.
Bypass Mode Setting is Enabled
It is normal the Un-Connection is shown when
Power Modules have shut off their control
power.
