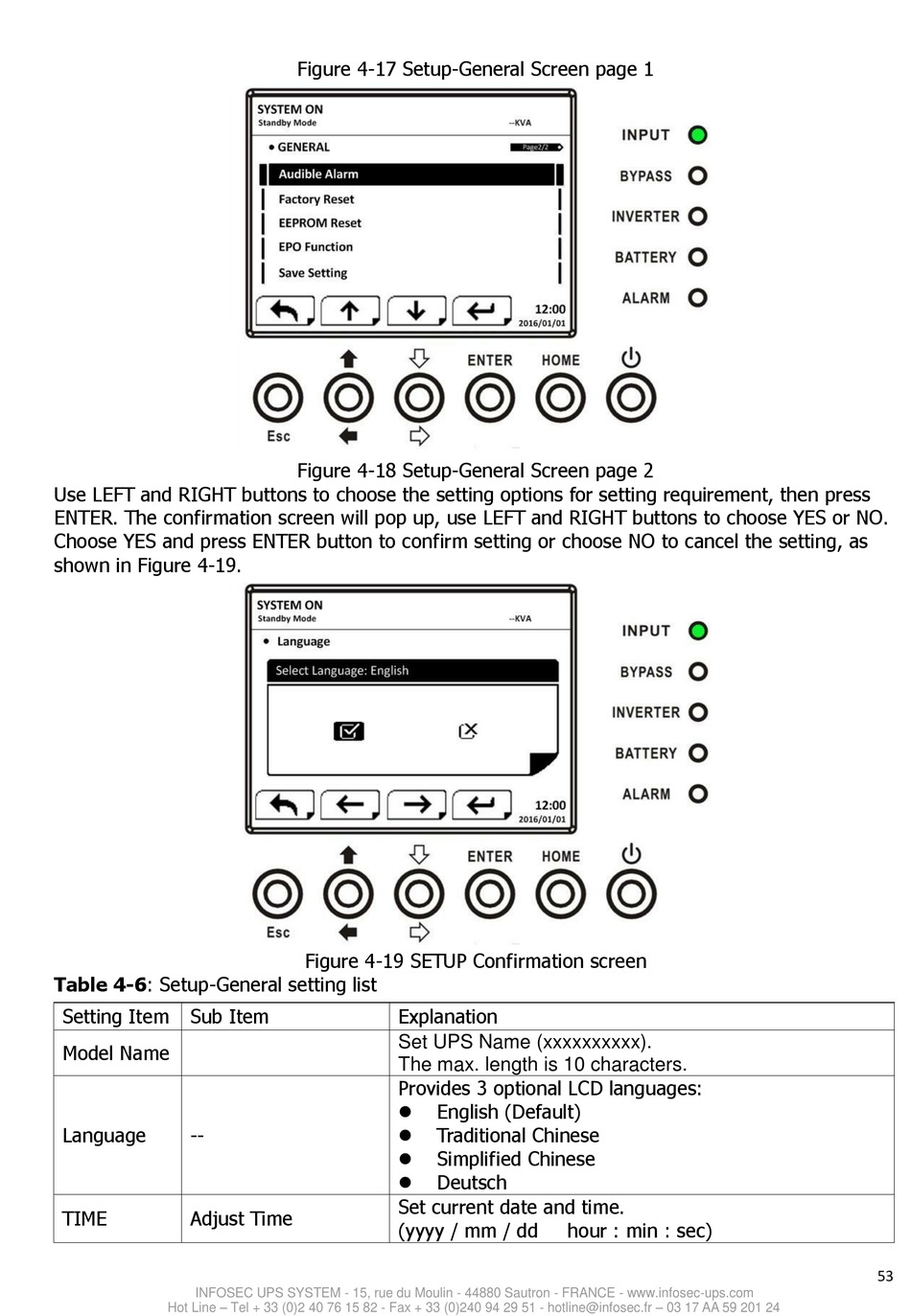

INFOSEC Mod5T User Manual page 53

Use LEFT and RIGHT buttons to choose the setting options for setting requirement, then press
ENTER. The confirmation screen will pop up, use LEFT and RIGHT buttons to choose YES or NO.
Choose YES and press ENTER button to confirm setting or choose NO to cancel the setting, as
shown in Figure 4-19.
Table 4-6: Setup-General setting list
Setting Item Sub Item
Model Name
Language --
TIME Adjust Time
INFOSEC UPS SYSTEM - 15, rue du Moulin - 44880 Sautron - FRANCE - www.infosec-ups.com
Hot Line – Tel + 33 (0)2 40 76 15 82 - Fax + 33 (0)240 94 29 51 - hotline@infosec.fr – 03 17 AA 59 201 24
Figure 4-17 Setup-General Screen page 1
Figure 4-18 Setup-General Screen page 2
Figure 4-19 SETUP Confirmation screen
Explanation
Set UPS Name (xxxxxxxxxx).
The max. length is 10 characters.
Provides 3 optional LCD languages:
English (Default)

Traditional Chinese

Simplified Chinese

Deutsch

Set current date and time.
(yyyy / mm / dd hour : min : sec)
53
