4. Control Panel and Display Description

4.1 Introduction

This control panel and display description are located on the front door of the UPS. It is the USER
control, monitoring of all measured parameters, UPS and battery status and alarms. The control
panel and display description are divided into four functional areas: (1) LCD display, (2) LED
indications, (3) Control keys, (4) Audio Alarm, as shown in Figure 4-1.
(1) LCD display: Graphic display and all measured parameters.
(2) LED indications. Refer to Table 4-1.
(3) Control keys. Refer to Table 4-2.
(4) Audible alarm. Refer to table 4-3
Table 4-1: LED indications
LED Color
INPUT Green
BYPASS Yellow
INVERTER Green
BATTERY Red
ALARM Red
INFOSEC UPS SYSTEM - 15, rue du Moulin - 44880 Sautron - FRANCE - www.infosec-ups.com
Hot Line – Tel + 33 (0)2 40 76 15 82 - Fax + 33 (0)240 94 29 51 - hotline@infosec.fr – 03 17 AA 59 201 24

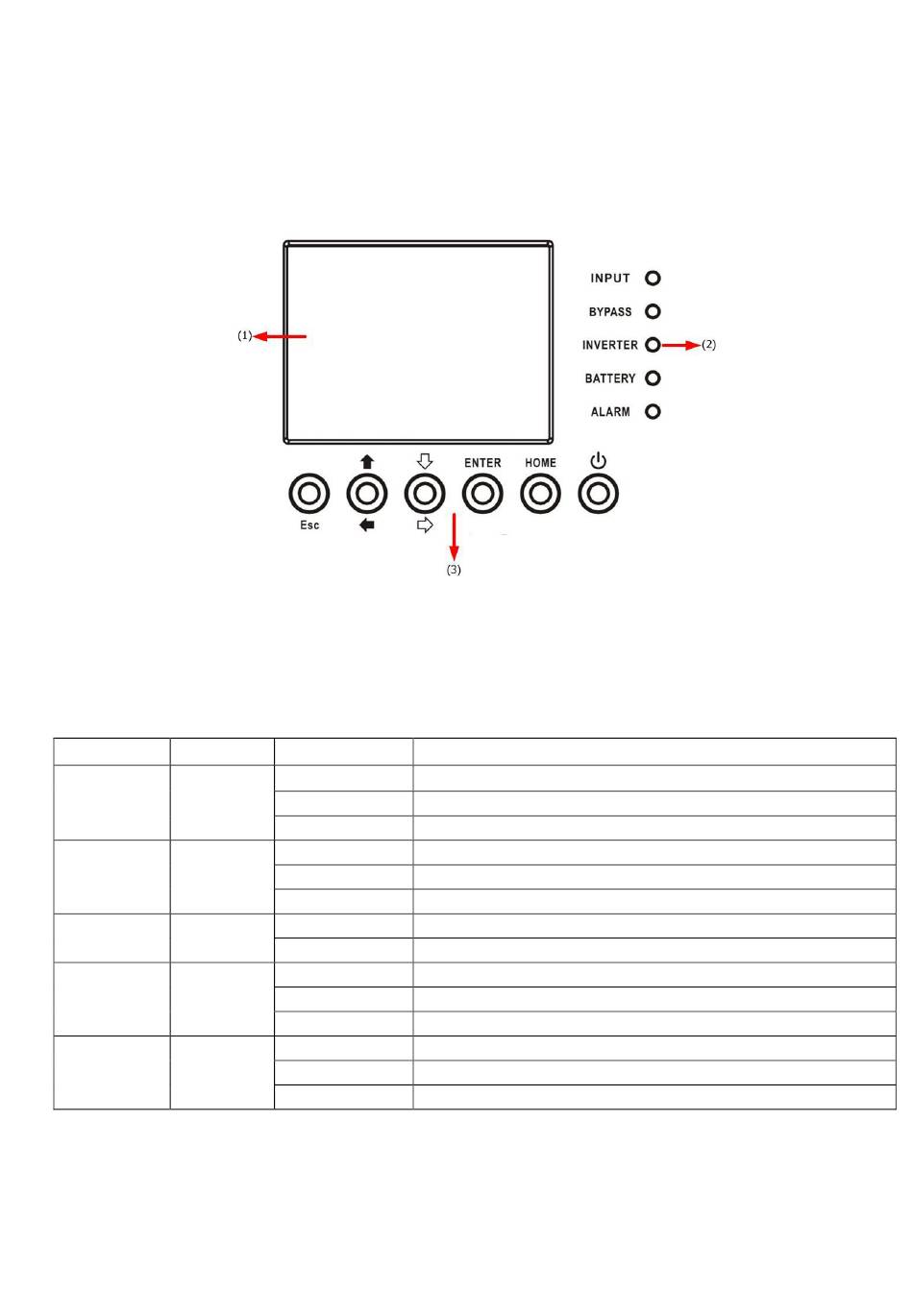

Figure 4-1 Control panel
Status
On Input source is normal.
Flashing Input source is abnormal.
Off No input source
On Load on Bypass.
Flashing Input source is abnormal.
Off Bypass not operating.
On Load on inverters.
Off Inverters not operating.
On Load on Battery.
Flashing Low battery
Off Battery converter is normal and battery is charging.
On UPS fault.
Flashing UPS alarm.
Off Normal.
Definition
