INFOSEC Mod5T User Manual page 40

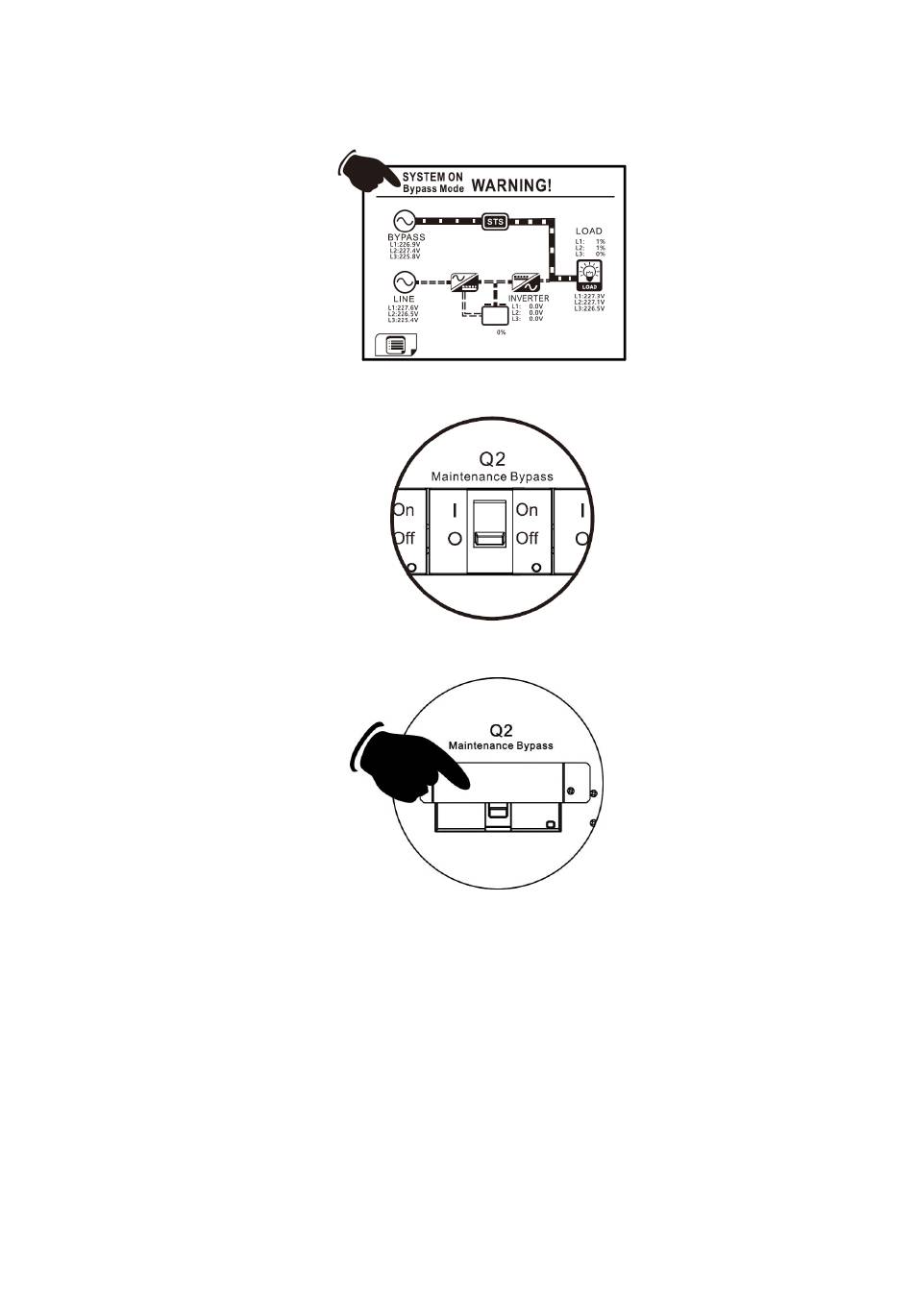

Step 3: Please enter LCD SETUP MENU and choose "SYSTEM" to ensure that the "Bypass mode" is
enabled. If the "Bypass mode" is disabled, you have to set it enabled. Then, exit the SETUP menu
and check if the UPS operates in bypass mode.
Step 4: Turn off Maintenance Bypass Breaker as shown below.
Step 5: Lock back the mechanical lock plate as shown below.
3.3.4 Turn off Operation
3.3.4.1 Bypass Mode/ Standby Mode Turn Off Operation
When the UPS neither is turned on nor be turned off, the UPS operates in the Standby Mode or
Bypass Mode. It depends on the "Bypass Mode" Setting.
40
