Step 2: Switch OFF the external power switch to disconnect the AC power to the UPS. Wait until
the LCD is OFF.
Step 3: Switch OFF the battery breaker, if the UPS will disconnect the AC power for a long time.
3.3.4.2 Line Mode Turn Off Operation

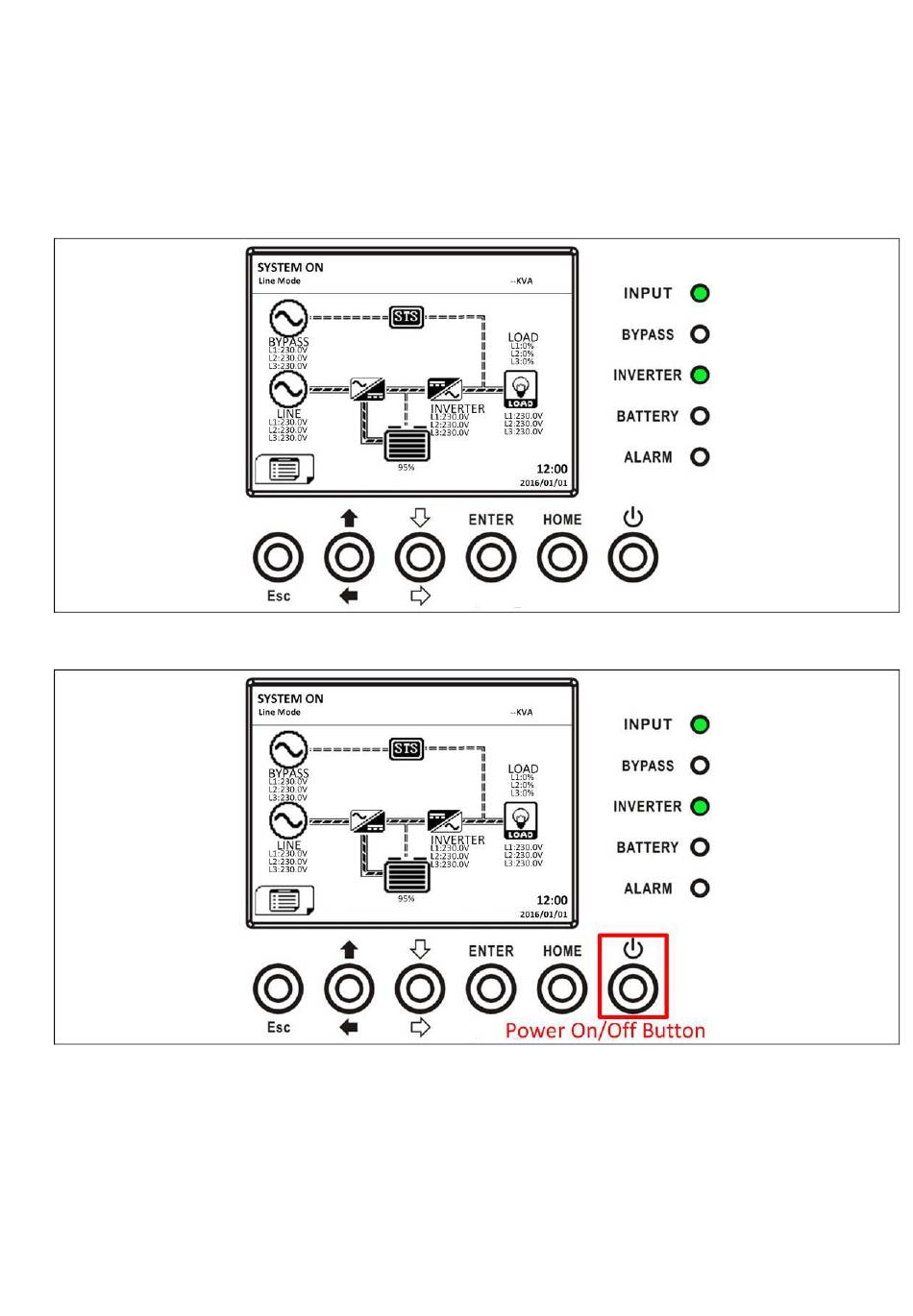

The LCD diagrams are shown below when the UPS operates in the Line Mode.
Step 1: Press "Power On/Off" button for 2 second to turn off the UPS. Or use the
Menu-Control-System Turn Off to turn off the UPS.
After turning off, the UPS will tranfer to Standby Mode or Bypass Mode. It depends on the "Bypass
Mode" Setting.
Next, follow the Bypass Mode/ Standby Mode Turn Off Operation procedure.
