INFOSEC Mod5T User Manual page 49

to go into the submenu, as shown in Figure 4-12.
Use UP and DOWN buttons to choose Input, Output, Bypass, Load, and Battery option, and press
ENTER button to go into submenu. The measurement can be read listed in Table 4-4.
Table 4-4: Measurement data
Menu Item
L-N Voltage (V)
Input
Frequency (Hz)
L-N Voltage (V)
L-N Current (A)
Output
Frequency (Hz)
Power Factor
L-N Voltage (V)
Bypass Frequency (Hz)
Power Factor
Sout (KVA)
Load Pout (KW)
Load Level (%)
Positive Voltage (V)
Negative Voltage (V)
Positive Current (A)
Negative Current (A)
Remain Time (Sec)
Capacity (%)
Test Result
Battery
Charging Status
Temperature1(℃)
Temperature2(℃)
Temperature3(℃)
INFOSEC UPS SYSTEM - 15, rue du Moulin - 44880 Sautron - FRANCE - www.infosec-ups.com
Hot Line – Tel + 33 (0)2 40 76 15 82 - Fax + 33 (0)240 94 29 51 - hotline@infosec.fr – 03 17 AA 59 201 24

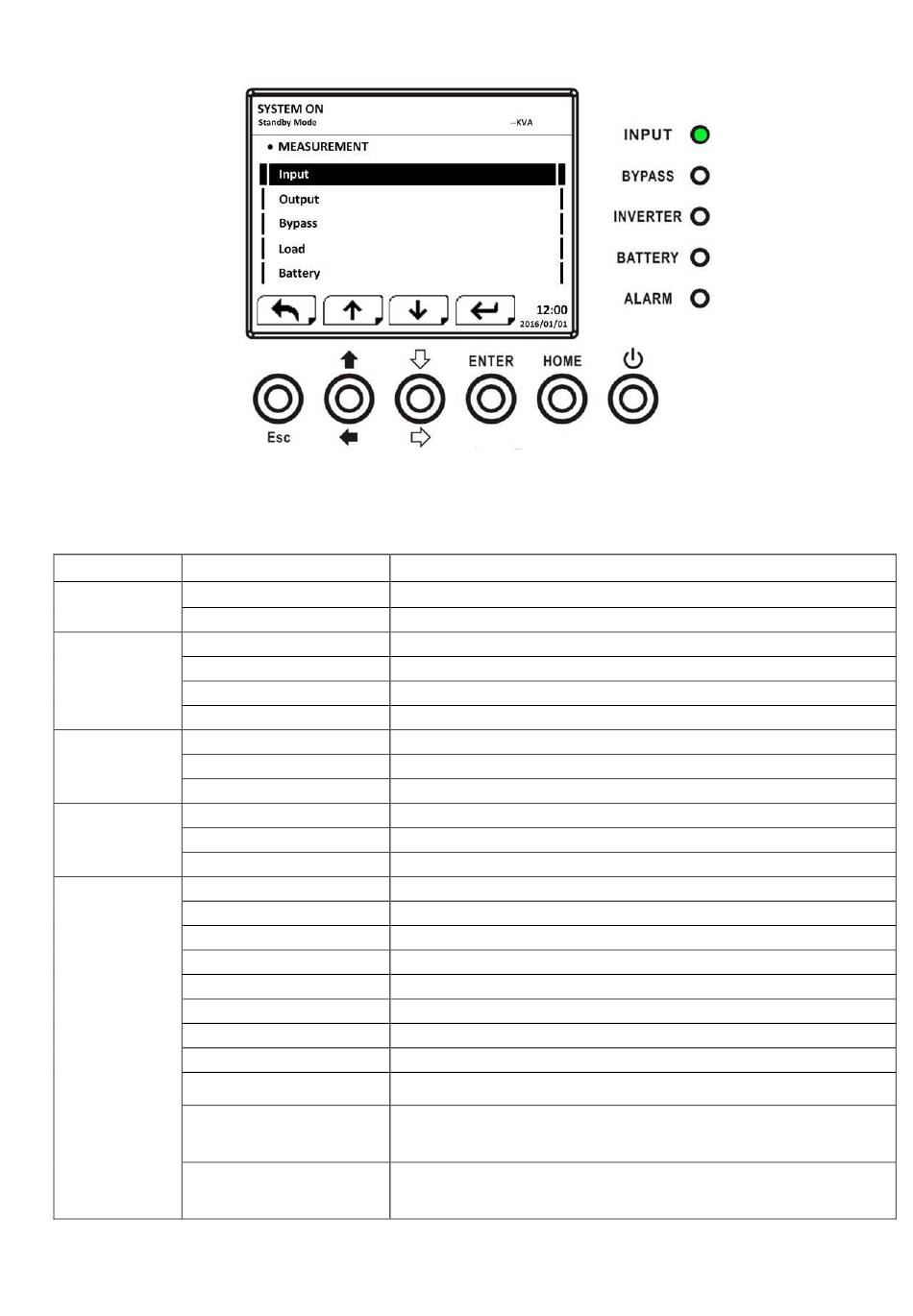

Figure 4-12 Measurement source selection Screen
Explanation
Input phase voltage (L1, L2, L3). Units 0.1V.
Input Frequency (L1, L2, L3). Units 0.1Hz.
Output phase voltage (L1, L2, L3). Units 0.1V.
Output phase current (L1, L2, L3). Units 0.1A.
Output Frequency (L1, L2, L3). Units 0.1Hz.
Output Power Factor (L1, L2, L3).
Bypass phase voltage (L1, L2, L3). Units 0.1V.
Bypass Frequency (L1, L2, L3). Units 0.1Hz.
Bypass Power Factor (L1, L2, L3).
Apparent power. Units 0.1KVA.
Active power. Units 0.1KW.
The percentage of the UPS rating load. Units 1%.
Battery Positive Voltage. Units 0.1V.
Battery Negative Voltage. Units 0.1V.
Battery Positive Current. Units 0.1A.
Battery Negative Current. Units 0.1A.
Battery run time remaining. Units 1sec.
The percentage of the capacity of the battery. Units 1%.
Battery test result
Battery charging status
Battery cabinet temperature of STS module. Units 0.1℃.
Battery cabinet temperature of extra communication
card T1. Units 0.1℃.
Battery cabinet temperature of extra communication
card T2. Units 0.1℃.
