INFOSEC Mod5T User Manual page 67

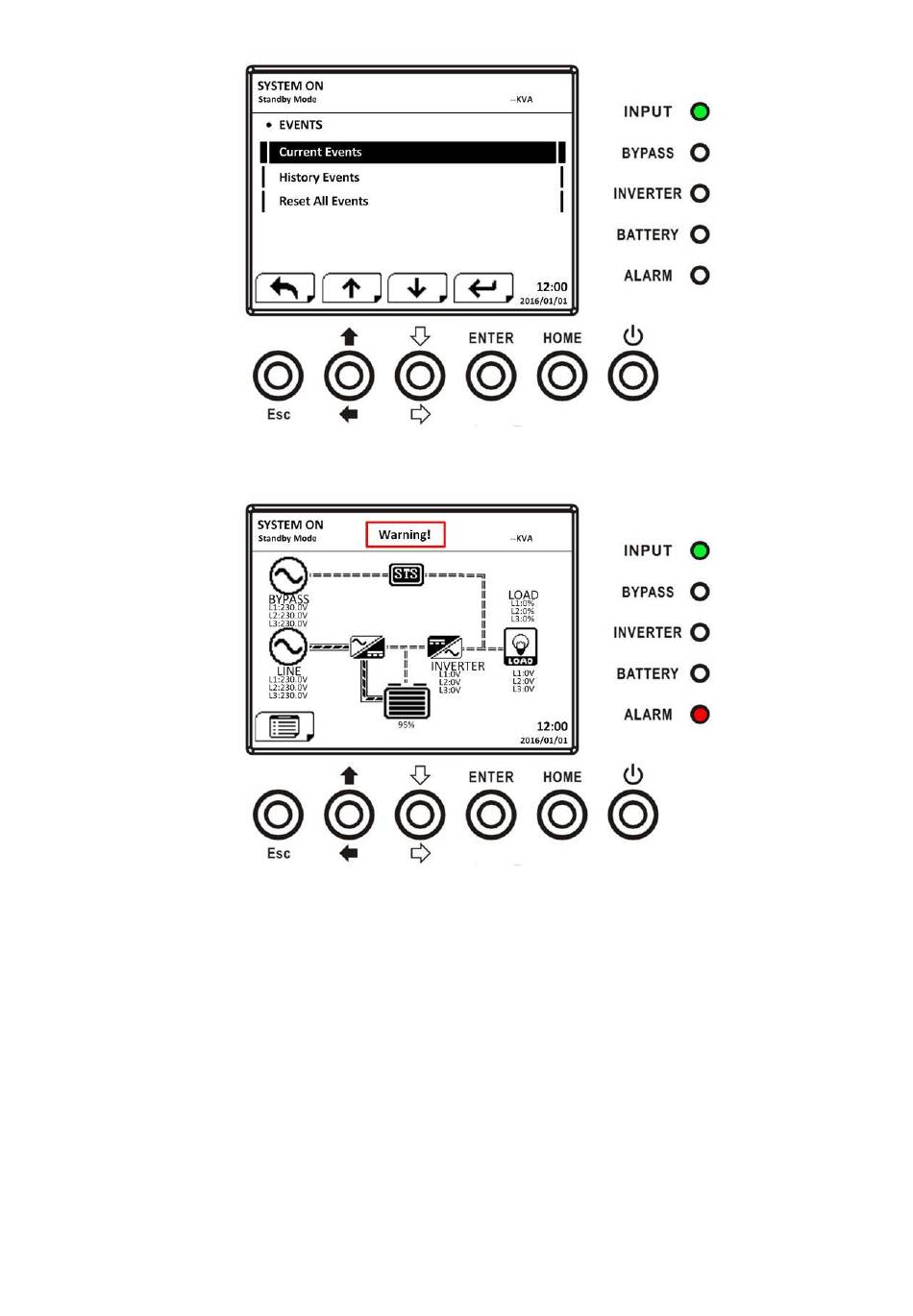

Figure 4-38 Events screen
When event occurs, you will see flashing warning text in the Main Screen as shown in Figure 4-39.
Figure 4-39 Alarm warning screen
4.2.8.1 Current Events
When event occurs, it will display Module ID and alarm code in Current Events screen. It can save
up to 50 events in current list. Only 4 events can be listed in one page. Therefore, if it exceeds
more than four, you have to press UP or DOWN button to read other events as shown in Figure
4-40.
67
