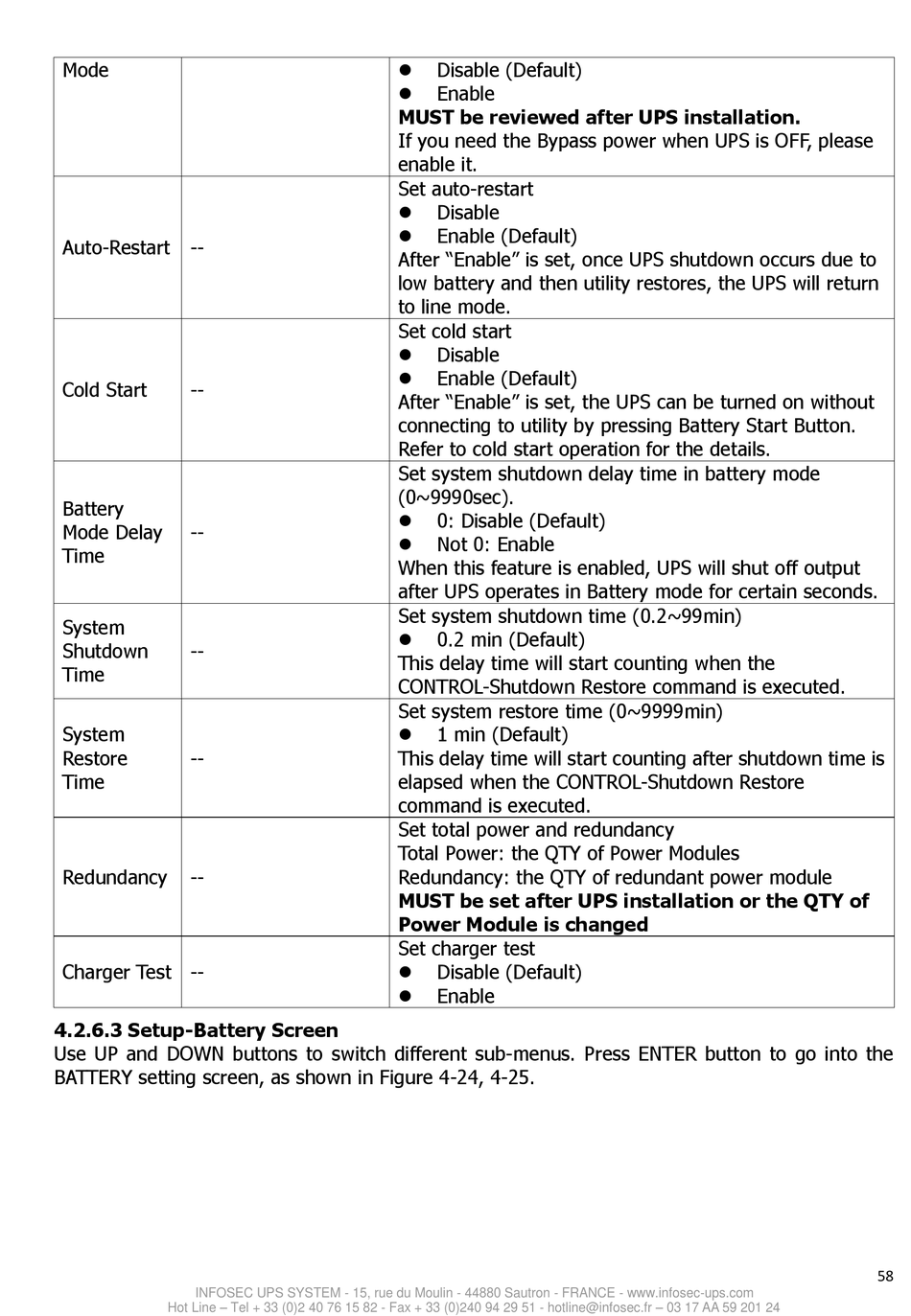

INFOSEC Mod5T User Manual page 58

Mode
Auto-Restart --
Cold Start --
Battery
Mode Delay --
Time
System
Shutdown --
Time
System
Restore --
Time
Redundancy --
Charger Test --
4.2.6.3 Setup-Battery Screen
Use UP and DOWN buttons to switch different sub-menus. Press ENTER button to go into the
BATTERY setting screen, as shown in Figure 4-24, 4-25.
INFOSEC UPS SYSTEM - 15, rue du Moulin - 44880 Sautron - FRANCE - www.infosec-ups.com
Hot Line – Tel + 33 (0)2 40 76 15 82 - Fax + 33 (0)240 94 29 51 - hotline@infosec.fr – 03 17 AA 59 201 24
Disable (Default)

Enable

MUST be reviewed after UPS installation.
If you need the Bypass power when UPS is OFF, please
enable it.
Set auto-restart
Disable

Enable (Default)

After "Enable" is set, once UPS shutdown occurs due to
low battery and then utility restores, the UPS will return
to line mode.
Set cold start
Disable

Enable (Default)

After "Enable" is set, the UPS can be turned on without
connecting to utility by pressing Battery Start Button.
Refer to cold start operation for the details.
Set system shutdown delay time in battery mode
(0~9990sec).
0: Disable (Default)

Not 0: Enable

When this feature is enabled, UPS will shut off output
after UPS operates in Battery mode for certain seconds.
Set system shutdown time (0.2~99min)
0.2 min (Default)

This delay time will start counting when the
CONTROL-Shutdown Restore command is executed.
Set system restore time (0~9999min)
1 min (Default)

This delay time will start counting after shutdown time is
elapsed when the CONTROL-Shutdown Restore
command is executed.
Set total power and redundancy
Total Power: the QTY of Power Modules
Redundancy: the QTY of redundant power module
MUST be set after UPS installation or the QTY of
Power Module is changed
Set charger test
Disable (Default)

Enable

58
