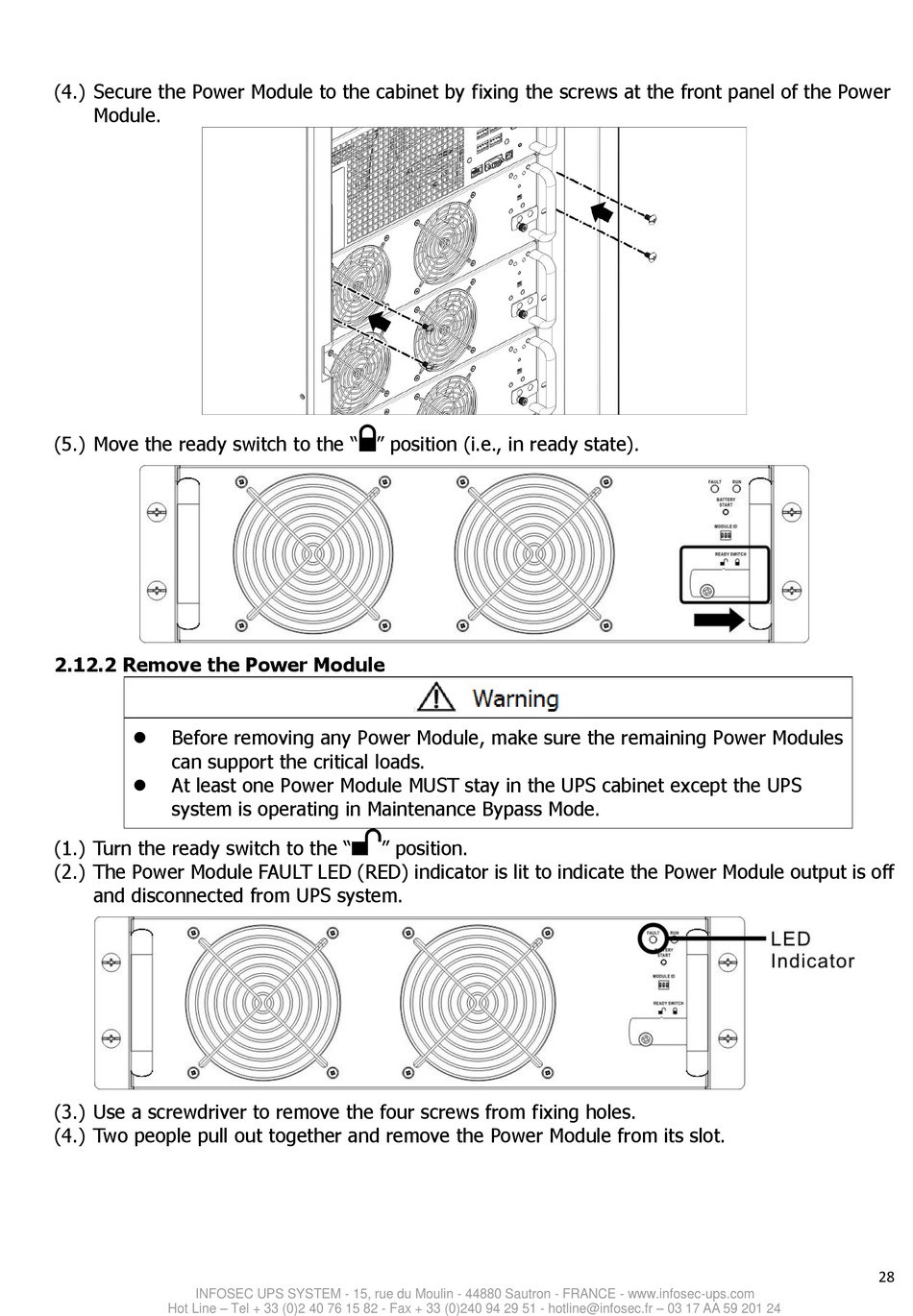

(4.) Secure the Power Module to the cabinet by fixing the screws at the front panel of the Power
Module.
(5.) Move the ready switch to the " " position (i.e., in ready state).
2.12.2 Remove the Power Module
Before removing any Power Module, make sure the remaining Power Modules

can support the critical loads.
At least one Power Module MUST stay in the UPS cabinet except the UPS

system is operating in Maintenance Bypass Mode.
(1.) Turn the ready switch to the "
(2.) The Power Module FAULT LED (RED) indicator is lit to indicate the Power Module output is off
and disconnected from UPS system.
(3.) Use a screwdriver to remove the four screws from fixing holes.
(4.) Two people pull out together and remove the Power Module from its slot.
