INFOSEC Mod5T User Manual page 60

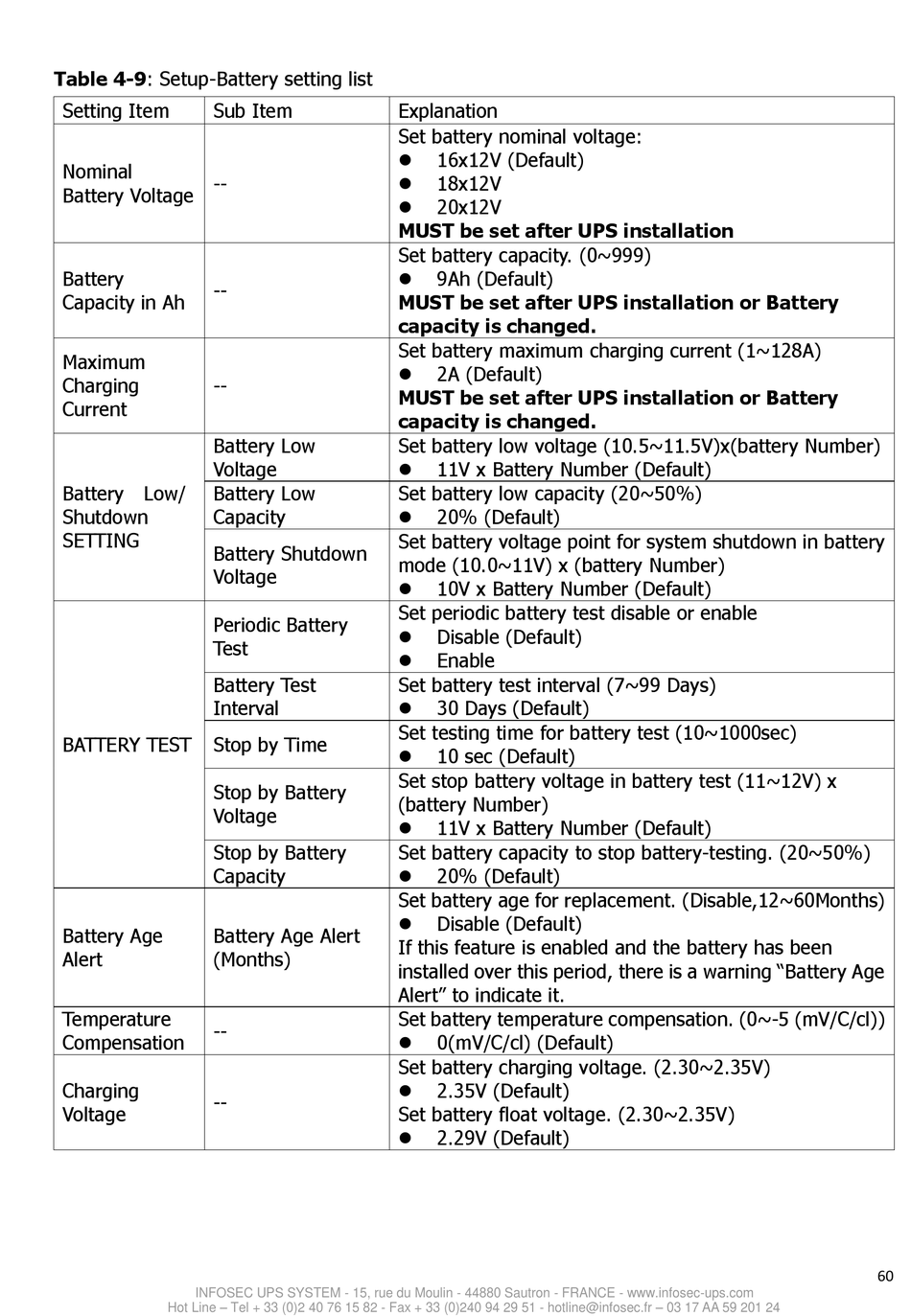

Table 4-9: Setup-Battery setting list
Setting Item Sub Item
Nominal
--
Battery Voltage
Battery
--
Capacity in Ah
Maximum
Charging --
Current
Battery Low
Voltage
Battery Low/ Battery Low
Shutdown Capacity
SETTING
Battery Shutdown
Voltage
Periodic Battery
Test
Battery Test
Interval
BATTERY TEST Stop by Time
Stop by Battery
Voltage
Stop by Battery
Capacity
Battery Age Battery Age Alert
Alert (Months)
Temperature
--
Compensation
Charging
--
Voltage
INFOSEC UPS SYSTEM - 15, rue du Moulin - 44880 Sautron - FRANCE - www.infosec-ups.com
Hot Line – Tel + 33 (0)2 40 76 15 82 - Fax + 33 (0)240 94 29 51 - hotline@infosec.fr – 03 17 AA 59 201 24
Explanation
Set battery nominal voltage:
16x12V (Default)

18x12V

20x12V

MUST be set after UPS installation
Set battery capacity. (0~999)
9Ah (Default)

MUST be set after UPS installation or Battery
capacity is changed.
Set battery maximum charging current (1~128A)
2A (Default)

MUST be set after UPS installation or Battery
capacity is changed.
Set battery low voltage (10.5~11.5V)x(battery Number)
11V x Battery Number (Default)

Set battery low capacity (20~50%)
20% (Default)

Set battery voltage point for system shutdown in battery
mode (10.0~11V) x (battery Number)
10V x Battery Number (Default)

Set periodic battery test disable or enable
Disable (Default)

Enable

Set battery test interval (7~99 Days)
30 Days (Default)

Set testing time for battery test (10~1000sec)
10 sec (Default)

Set stop battery voltage in battery test (11~12V) x
(battery Number)
11V x Battery Number (Default)

Set battery capacity to stop battery-testing. (20~50%)
20% (Default)

Set battery age for replacement. (Disable,12~60Months)
Disable (Default)

If this feature is enabled and the battery has been
installed over this period, there is a warning "Battery Age
Alert" to indicate it.
Set battery temperature compensation. (0~-5 (mV/C/cl))
0(mV/C/cl) (Default)

Set battery charging voltage. (2.30~2.35V)
2.35V (Default)

Set battery float voltage. (2.30~2.35V)
2.29V (Default)

