INFOSEC Mod5T User Manual page 26

2.11.3 External Battery Cabinet Connection
External Battery
Cabinet
+ Battery - Battery

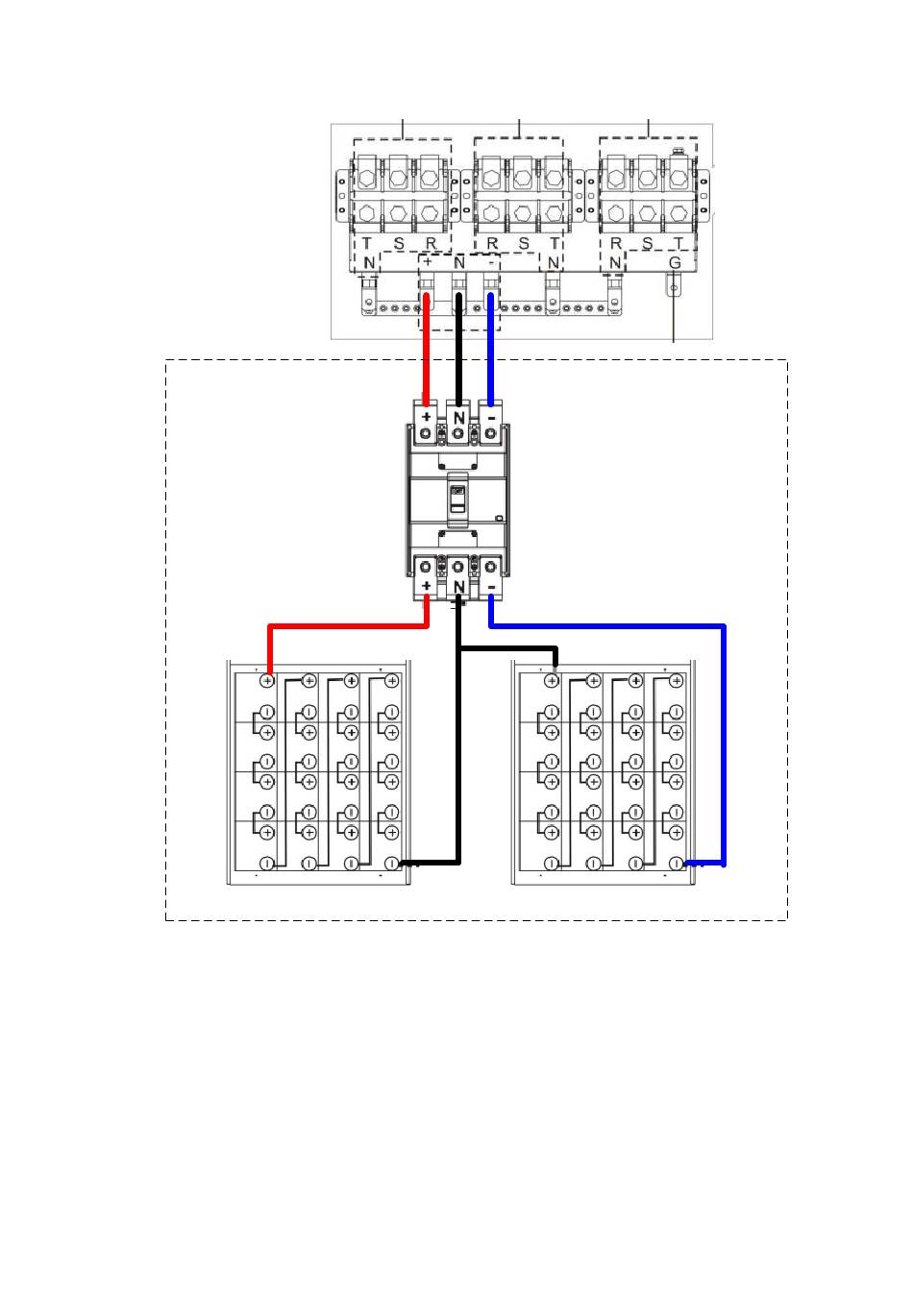

Figure 2-24 External Battery Cabinet Wiring
After the battery is completely installed, be sure to set up nominal battery voltage, battery capacity
and maximum charging current in LCD setting. Otherwise, if battery setting is different from actual
installation, the UPS will keep warning. Please refer to section 4.2.6.3 and Table 4-9 for the
details.
