2.9.2 Power Module
Each Power Module is shipped with its own package. It has to be installed during the UPS system
installation.
The capacity of each Power Module is 20KVA/20kWA. It includes a power factor correction rectifier,
a battery charger, an inverter and control circuit.
No. Item

Fan

Ready Switch

DIP Switches
Battery Start

Button

FAULT LED

RUN LED
INFOSEC UPS SYSTEM - 15, rue du Moulin - 44880 Sautron - FRANCE - www.infosec-ups.com
Hot Line – Tel + 33 (0)2 40 76 15 82 - Fax + 33 (0)240 94 29 51 - hotline@infosec.fr – 03 17 AA 59 201 24
The Power Module uses forced convection cooling by these fans.
Cooling air enters the module through ventilation grills and exhausted
through grills located in the rear of the module. Please do not block
the ventilation area.
Unlock it before removing the Power Module.
Lock it when the Power Module is well installed. Then the Power
Module can start to work.
There are three DIP switches for Power Module address setting. In
the same cabinet, each Power Module ID MUST be exclusive. The
setting method is shown in Table 2-1.
When AC input is not existing, use this button to start battery power
for UPS.
ON
ON/OFF 0.5 sec
ON/OFF 0.15 sec
ON
ON/OFF 0.5 sec
ON/OFF 0.15 sec

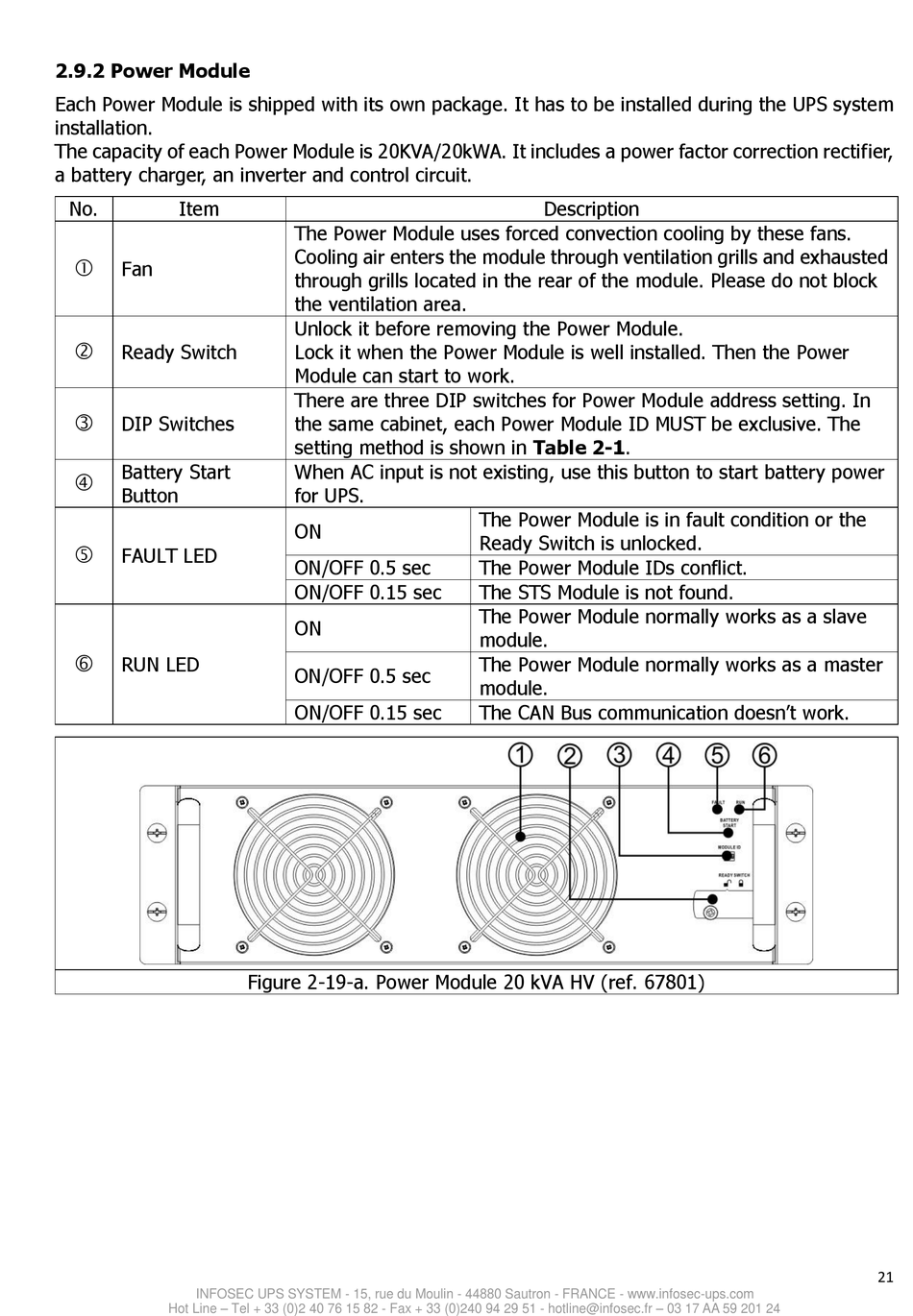

Figure 2-19-a. Power Module 20 kVA HV (ref. 67801)
