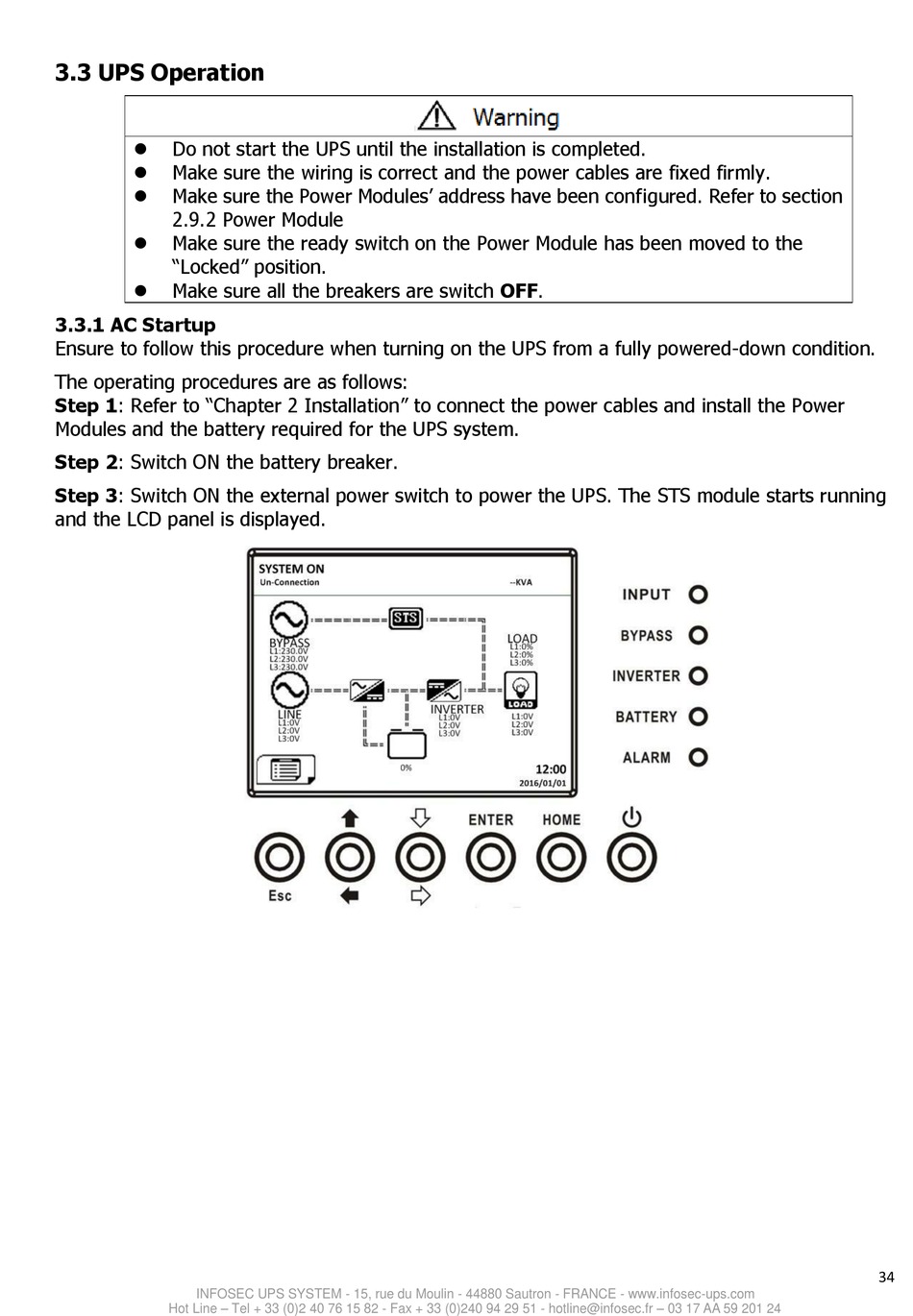

3.3 UPS Operation

Do not start the UPS until the installation is completed.

Make sure the wiring is correct and the power cables are fixed firmly.

Make sure the Power Modules' address have been configured. Refer to section

2.9.2 Power Module
Make sure the ready switch on the Power Module has been moved to the

"Locked" position.
Make sure all the breakers are switch OFF.

3.3.1 AC Startup
Ensure to follow this procedure when turning on the UPS from a fully powered-down condition.
The operating procedures are as follows:
Step 1: Refer to "Chapter 2 Installation" to connect the power cables and install the Power
Modules and the battery required for the UPS system.
Step 2: Switch ON the battery breaker.
Step 3: Switch ON the external power switch to power the UPS. The STS module starts running
and the LCD panel is displayed.
