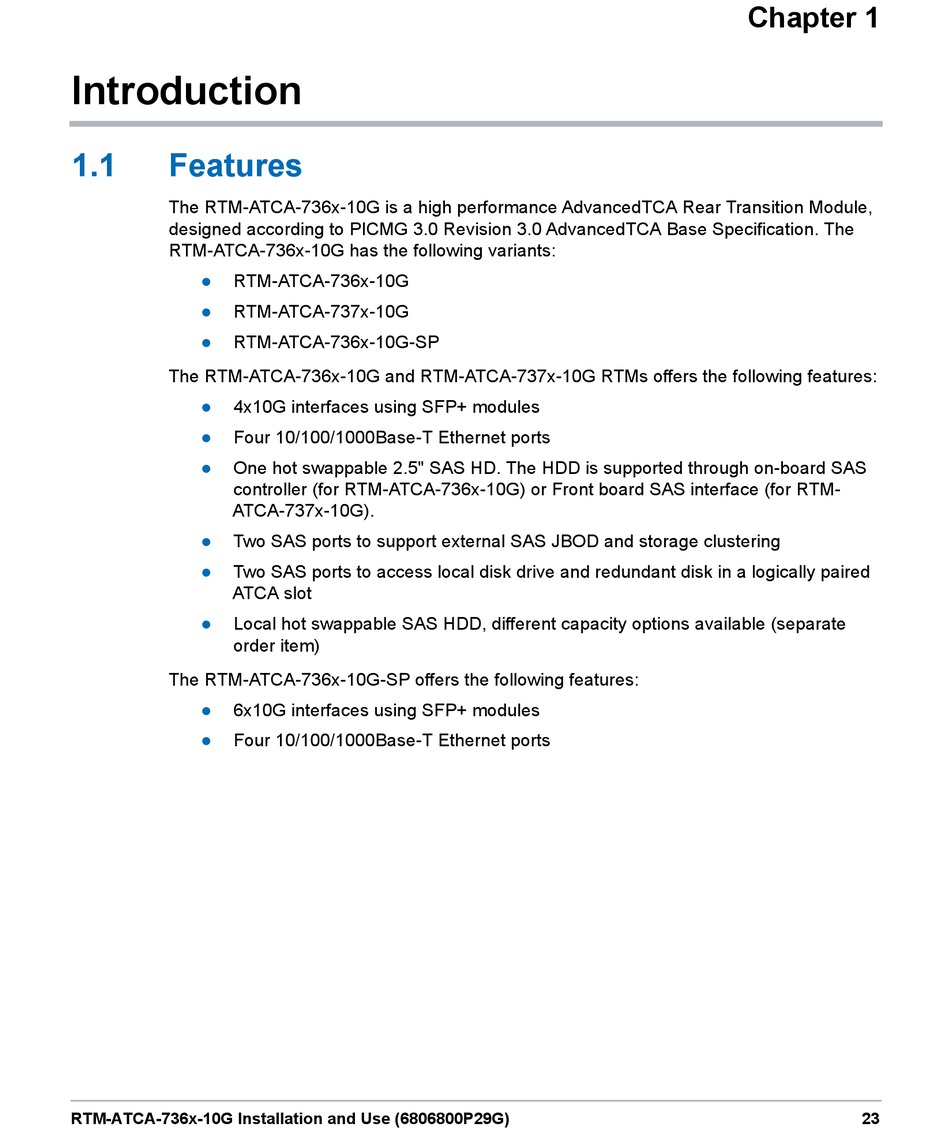

Introduction

1.1

Features

The RTM-ATCA-736x-10G is a high performance AdvancedTCA Rear Transition Module,
designed according to PICMG 3.0 Revision 3.0 AdvancedTCA Base Specification. The
RTM-ATCA-736x-10G has the following variants:
RTM-ATCA-736x-10G

RTM-ATCA-737x-10G

RTM-ATCA-736x-10G-SP

The RTM-ATCA-736x-10G and RTM-ATCA-737x-10G RTMs offers the following features:
4x10G interfaces using SFP+ modules

Four 10/100/1000Base-T Ethernet ports

One hot swappable 2.5" SAS HD. The HDD is supported through on-board SAS

controller (for RTM-ATCA-736x-10G) or Front board SAS interface (for RTM-
ATCA-737x-10G).
Two SAS ports to support external SAS JBOD and storage clustering

Two SAS ports to access local disk drive and redundant disk in a logically paired

ATCA slot
Local hot swappable SAS HDD, different capacity options available (separate

order item)
The RTM-ATCA-736x-10G-SP offers the following features:
6x10G interfaces using SFP+ modules

Four 10/100/1000Base-T Ethernet ports

