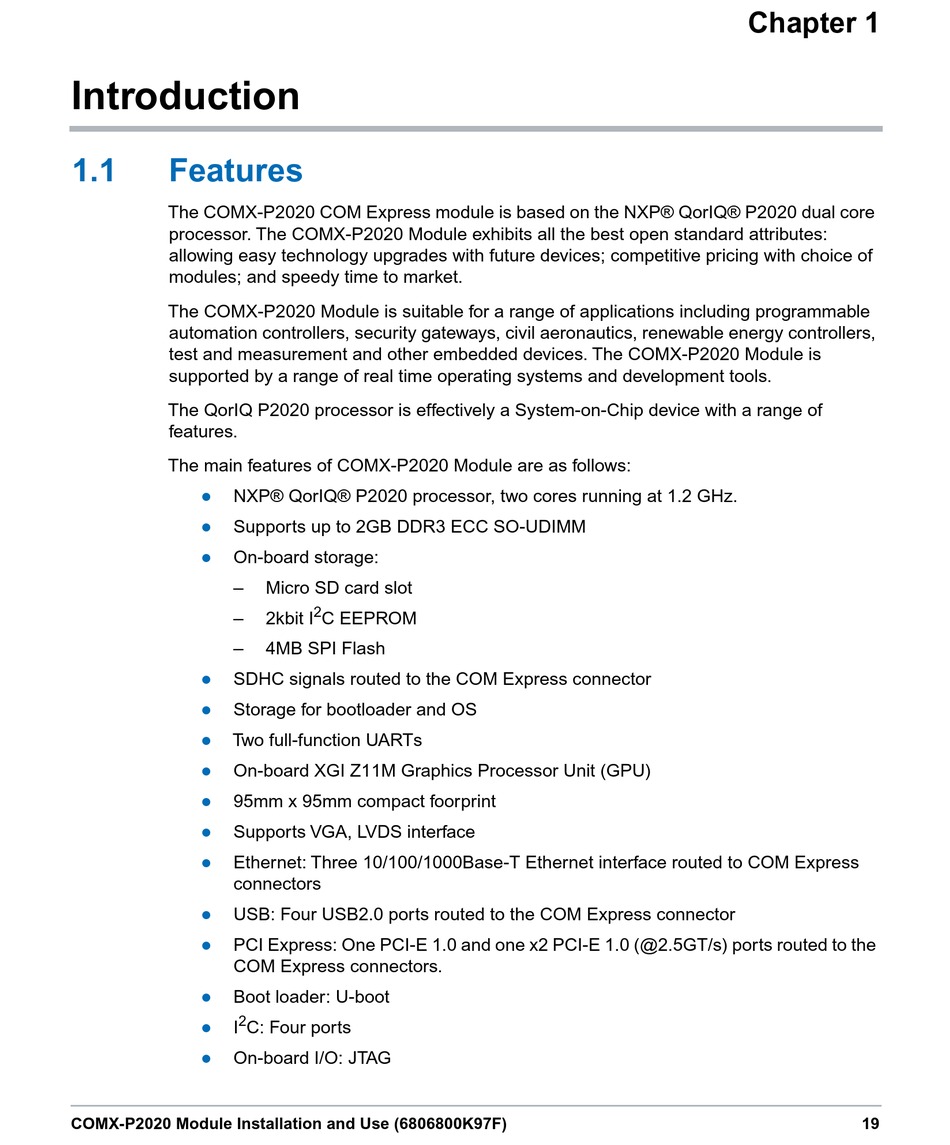

Introduction

1.1

Features

The COMX-P2020 COM Express module is based on the NXP® QorIQ® P2020 dual core
processor. The COMX-P2020 Module exhibits all the best open standard attributes:
allowing easy technology upgrades with future devices; competitive pricing with choice of
modules; and speedy time to market.
The COMX-P2020 Module is suitable for a range of applications including programmable
automation controllers, security gateways, civil aeronautics, renewable energy controllers,
test and measurement and other embedded devices. The COMX-P2020 Module is
supported by a range of real time operating systems and development tools.
The QorIQ P2020 processor is effectively a System-on-Chip device with a range of
features.
The main features of COMX-P2020 Module are as follows:
 NXP® QorIQ® P2020 processor, two cores running at 1.2 GHz.
 Supports up to 2GB DDR3 ECC SO-UDIMM
 On-board storage:
–
–
–
 SDHC signals routed to the COM Express connector
 Storage for bootloader and OS
 Two full-function UARTs
 On-board XGI Z11M Graphics Processor Unit (GPU)
 95mm x 95mm compact foorprint
 Supports VGA, LVDS interface
 Ethernet: Three 10/100/1000Base-T Ethernet interface routed to COM Express
connectors
 USB: Four USB2.0 ports routed to the COM Express connector
 PCI Express: One PCI-E 1.0 and one x2 PCI-E 1.0 (@2.5GT/s) ports routed to the
COM Express connectors.
 Boot loader: U-boot
2

I C: Four ports
 On-board I/O: JTAG
COMX-P2020 Module Installation and Use (6806800K97F)
Micro SD card slot
2
2kbit I C EEPROM
4MB SPI Flash
