1.4

Blank Front Panel

Refer to Figure 1–3 and Table 1-3 for description of the Blank Front Panel controls and Indicators.
1
No. Connection
1 Power Switch
2 Power Supply Model
3 Power LED
4 REM LED
5 OUT LED
Refer to section 1.9 for basic operation of Blank Front Panel power supply.
2

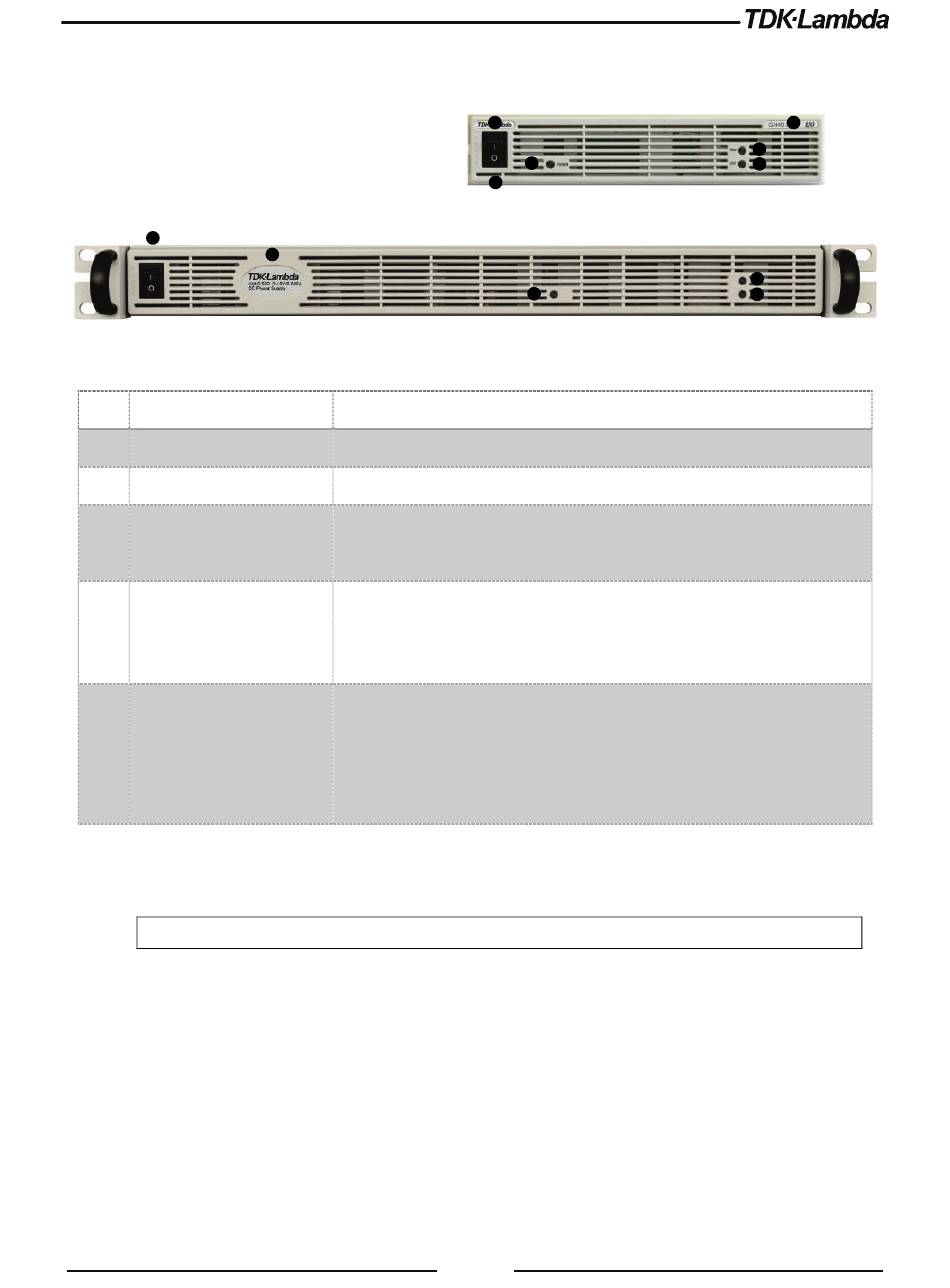

Figure 1–3: Blank Front Panel Controls
Description
POWER ON/OFF control.
Model, Voltage & Current Identifier.
Power supply ON/OFF status LED.
Green LED lights when power supply is ON (Power Switch ON).
REMOTE status LED.
Green LED lights if power supply is controlled by a remote communication
(RS232/485, USB, LAN, OPTional).
Output ON/OFF status LED.
Green LED lights when DC Output is enabled.
Red LED blinks in case of an alarm. Refer to Section 2.9 Alarms and
Protective Functions.
Table 1-3: Blank Front Panel Controls
