TDK-Lambda GH10-100 User Manual page 13

1
2
No. Control/Indicator
1 Power Switch
2 Power Supply Model
3 Voltage Encoder and
Button
4 Voltage Display
5 Operation Mode Indicator
6 Current Display
7 Indicators Bar
8 Current Encoder and
Button
9 BACK Button

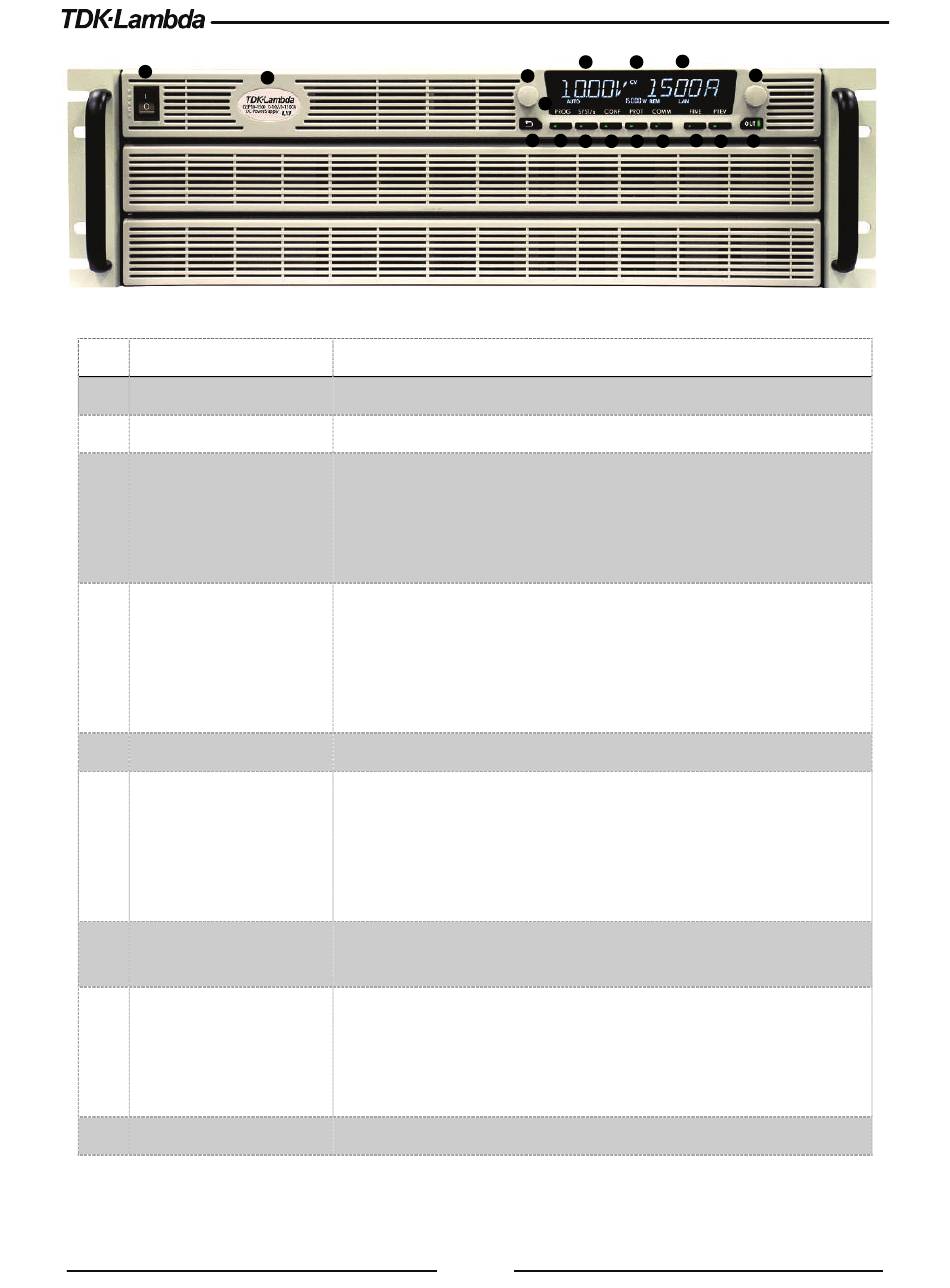

Figure 1–1: Front Panel Controls
Description
POWER ON/OFF control.
Model, Voltage & Current Identifier.
Encoder: A high-resolution detent rotary Encoder adjusting the output
voltage and navigating menu.
Button: An auxiliary function to accept the voltage-setting value in Preview
mode.
4-digit 16-segment Voltage display.
Normally displays the output voltage.
In Preview mode, the display indicates the setting of the output voltage.
In Menu navigation, the display indicates the selected function.
CV/CC/CP Operation mode indicator.
4-digit 16-segment Current display.
Normally displays the output current.
In Preview mode, the display indicates the setting of the output current.
In menu navigation, the display indicates the selected parameter.
Refer to Figure 1–2 and Table 1-2: Front Panel Display and Indicators for
description of the front panel Indicators bar.
Encoder: A high-resolution detent rotary Encoder adjusting the output
current and navigating menu.
Button: An auxiliary function to accept the current-setting value, select
menu level, and set parameter value.
Return one step back in menu navigation mode.
2
6
4 5
3
7
9 10 15
11 12 13 14
8
