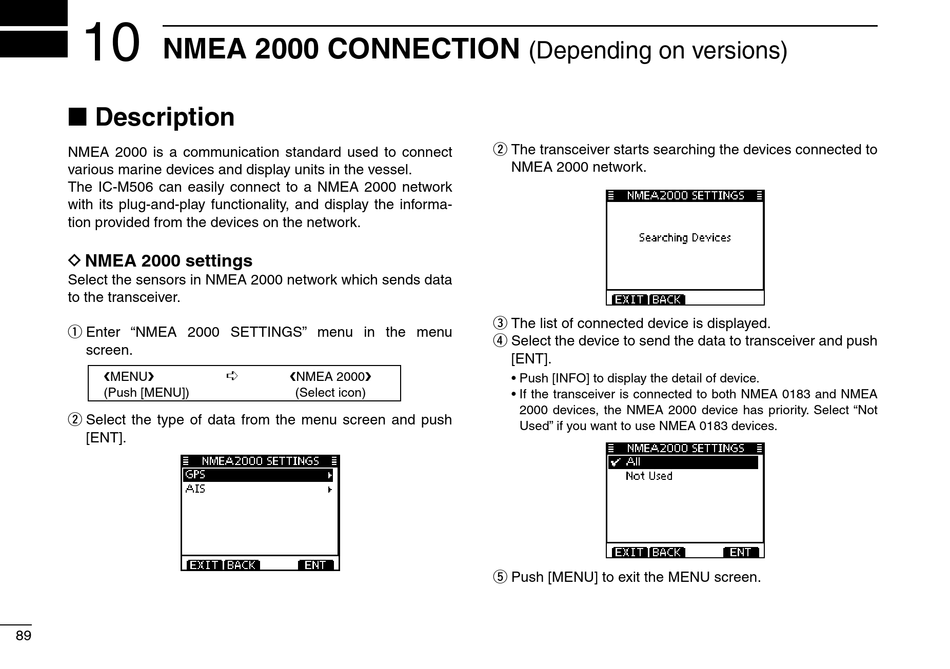

NMEA 2000 CONNECTION

Description

■
NMEA 2000 is a communication standard used to connect
various marine devices and display units in the vessel.
The IC-M506 can easily connect to a NMEA 2000 network
with its plug-and-play functionality, and display the informa-
tion provided from the devices on the network.
D NMEA 2000 settings
Select the sensors in NMEA 2000 network which sends data
to the transceiver.
q Enter "NMEA 2000 SETTINGS" menu in the menu
screen.
MENU
(Push [MENU])
w Select the type of data from the menu screen and push
[ENT].
89
➪ NMEA 2000
(Select icon)
(Depending on versions)
w The transceiver starts searching the devices connected to
NMEA 2000 network.
e The list of connected device is displayed.
r Select the device to send the data to transceiver and push
[ENT].
• Push [INFO] to display the detail of device.
• If the transceiver is connected to both NMEA 0183 and NMEA
2000 devices, the NMEA 2000 device has priority. Select "Not
Used" if you want to use NMEA 0183 devices.
t Push [MENU] to exit the MENU screen.
