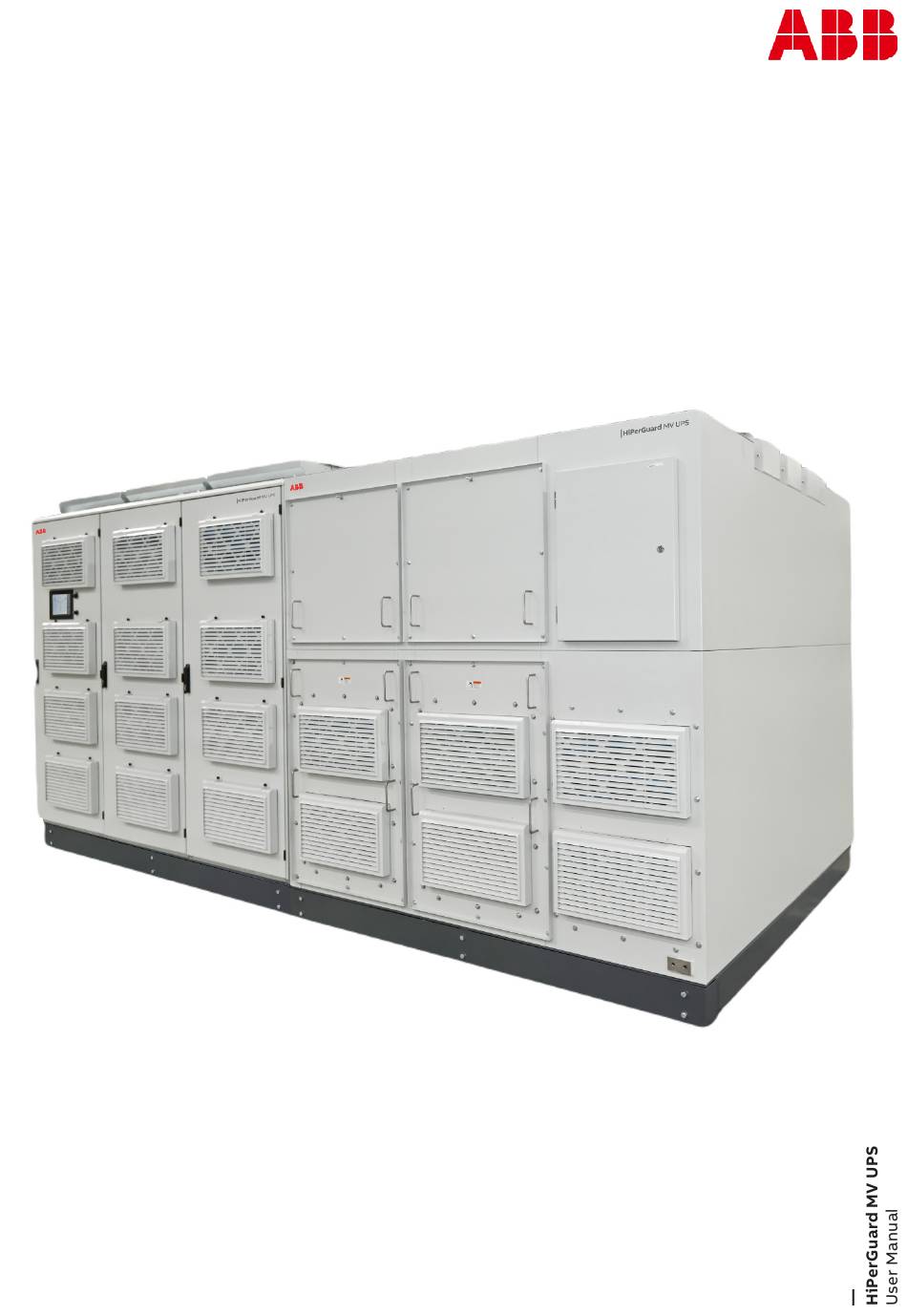

- Page 1 — M E D I U M VO LTAG E U P S HiPerGuard MV UPS User Manual COVER PICTURE © Copyright 2020 ABB, All rights reserved.
- Page 2 — ABB's HiPerGuard MV UPS is an industry-first that provides a continuous and reliable power sup- ply of up to 24 kV for mission critical facilities to protect loads, whilst reducing downtime. HiPerGuard supports sustainability with the highest levels of efficiency available on the market, at 98 percent –...
-
Page 3: About This Document
• Graphical Display Module (GDM) • Control and adjustments The manual does not claim to cover all variations and details of the HiPerGuard MV UPS, nor to consider all eventu- alities that may arise during installation, commissioning, operation and maintenance of the product. -
Page 4: Document Information
Responsibilities of the user It is the responsibility of those in charge of the HiPerGuard MV UPS to ensure that each person involved in the in- stallation, operation or maintenance of the product has received the appropriate training and has thoroughly read and clearly understood the instructions in this manual and the relevant safety instructions. -
Page 5: Document Information
Quality certificates and applicable standards The following certificates and conformity declarations are available from ABB: – ISO 9001 certificates stating that ABB Ltd in Napier has implemented and maintains a management system that fulfils the requirements of the normative standards. -
Page 6: Abbreviations & Terms
Abbreviations & Terms The following table lists terms and abbreviations users should be familiar with when using this manual. Some of the terms and abbreviations used in the manual are unique to ABB and might differ from the common use. Abbreviation/Term Meaning Low Voltage. -
Page 7: Abbreviations & Terms
The following table lists terms and abbreviations users should be familiar with when using this manual. Some of the terms and abbreviations used in the manual are unique to ABB and might differ from the common use. Impedance Isolated Static Converter. ZISC refers to the architecture of the HiPerGuard MV... -
Page 8: Abbreviations & Terms
The following table lists terms and abbreviations users should be familiar with when using this manual. Some of the terms and abbreviations used in the manual are unique to ABB and might differ from the common use. A state where the MV UPS is not operating, input and output breakers are opened, and the Bypass isolate state automatic bypass breaker is closed. -
Page 9: Related Documentation
— Related documentation The following documents are available for further information: Document title Document type Document number HiPerGuard MV UPS Installation Manual Installation Manual 2UCD400000E003 HiPerGuard MV UPS Commissioning Manual Commissioning Manual 2UCD400000E004 Layout Drawings Drawings 2UCD400000E102 Service Manual Service... -
Page 10: Introduction
HiPerGuard MV UPS. While every care has been taken to ensure the completeness and accuracy of this manual, ABB assumes no respon- sibility or liability for any losses or damages resulting from the use of the information contained in this document. -
Page 11: Table Of Contents
— Contents About this document ............3 Document information ..............3 Document information ..............4 Document information ..............5 Abbreviations & Terms ..............6 Abbreviations & Terms ..............7 Abbreviations & Terms ..............8 Trademarks ..................8 Related documentation ...............9 Introduction ..............10 Contents ................11 Safety ................. - Page 12 H I P E R G U A R D M V U P S U S E R M A N U A L 4.3 System frequency ..............35 4.4 Magnetics configuration ..........36 4.5 Medium voltage cable entry ..........36 4.6 System voltage 2 ..........................36 4.7 Energy storage code ............
- Page 13 8.1 Machine State Flow diagram ..........72 8.2 System Start ............... 74 8.3 System Bypass ..............78 8.4 Independent mode .............78 8.5 Resynchronize mode ............80 8.6 System EPO ................ 80 8.7 Hard fault ................81 8.8 Energy storage depleted ..........82 Maintenance Schedule .............
-
Page 14: Safety
H I P E R G U A R D M V U P S U S E R M A N U A L — Safety Предупреждение: Опасно напрежение! Вижте инструкциите за работа. Изключете и блокирайте захранването преди да работите с устройството. Внимание! Да... - Page 15 Įspėjimas: Pavojinga įtampa! Žr. naudojimo instrukcijas. Atjunkite ir laikinai užblokuokite maitinimą prieš dirbdami su šiuo įrenginiu. Dėmesio! Įrengti gali tik asmuo, turintis elektrotechniko patirties. Brīdinājums: Bīstams spriegums! Skatiet darba norādījumus. Pirms sākat darbu ar šo ierīci, atvienojiet un bloķējiet strāvas padevi. Uzmanību! Uzstādīšanu drīkst veikt tikai persona ar zināšanām par elektrotehniku.
-
Page 16: Safety Notices
CAUTION – Trained operators All operations on the HiPerGuard MV UPS must only be carried out by a trained operator familiar with the contents of this manual. Hazardous conditions could arise from incorrect adjustment. DANGER – Hazardous voltages An Operator must not open doors or panels marked as containing hazardous voltages. - Page 17 DANGER – Arc flash Arc flash is a dangerous phenomenon associated with operation at medium voltages. It may be caused by switchgear failure, insulation breakdown or foreign object intrusion. It may result in se- vere burns, severe eye injury, blindness, or death. To minimize the risk, keep all doors closed and cov- ers in place while operating the equipment.
-
Page 18: General Safety Information
1.2.1. Operator duties The scope of work for an operator of the HiPerGuard MV UPS is to control and monitor the MV UPS from the GDM, remote start/stop controls, or from the web page. An operator is not normally authorized to undertake any main- tenance, service or repair work. -
Page 19: Cyber Security
2.1 Deployment guidelines The recommended Cyber Security deployment for the HiPerGuard MV UPS is for it to be only used in a trusted net- work with restricted access. The user is responsible for creating a defense-in-depth protection by allocating fire- wall solutions to each network. -
Page 20: Product Description
Based on the ZISC (Impedance Isolated Static Converter) architecture, the HiPerGuard MV UPS uses a special cou- pling reactor combined with new generation PCS120 power modules to interface from the utility to the load. The reactor acts as a barrier, preventing grid disturbances to reach the load and improves the power factor seen from the grid side. -
Page 21: Operating Principle
— 3.2 Operating principle The HiPerGuard MV UPS has two modes of operation: Power Conditioning and Independent mode. In the Power Con- ditioning mode, the MV UPS supplies continuously regulated voltage, irrespective of utility conditions. The high-performance power electronic inverters ensure that the output voltage is regulated for combinations of in- put supply voltage disturbances. - Page 22 3.2.2 Independent mode If the utility power is no longer available or in a prolonged sag event, the HiPerGuard MV UPS opens its input breaker and transfers the load to the energy storage, operating now in Independent mode. The energy storage al- lows ride-through time for either the utility power to be restored or for the time necessary for an alternative en- ergy source to be activated, such as a generator for example.
- Page 23 — Figure 3.04: Three phase under/over voltage input breaker management graph. 3.2.4 Transition from Independent to Power Conditioning mode As soon as the input voltage returns to the nominal level, the MV UPS starts the transition from the Independent to the Power Conditioning mode. A “trust period” of two seconds before the transition assures that the input volt- age is stable, avoiding unnecessary breakers operations.
- Page 24 H I P E R G U A R D M V U P S U S E R M A N U A L — Figure 3.05: MV UPS fed by an upstream generator. The MV UPS understands that the generator can handle the load when it increases the frequency back towards nominal frequency.
- Page 25 3.2.6 Automatic bypass operation In case of an expected or unexpected HiPerGuard MV UPS shutdown, the load current is transferred to the au- to-bypass breaker. The MV switchgear acts as the primary system bypass, and its operation is fully controlled by the MV UPS, while the MV UPS control switch located on the switchgear is in “UPS Control”...
- Page 26 MV UPS provides the control interface, but all the logic operations and power setpoints are provided by the DRC. The DRC is not part of the HiPerGuard's scope of supply and can be obtained from ABB or a third party supplier.
- Page 27 The HiPerGuard MV UPS can optionally be configured to prevent grid power back-feed if a DRC Power-setpoint is greater than the current load power. This is useful if the load reduces faster than the DRC can respond. This func- tion is enabled via a configurable parameter on the MV UPS.
- Page 28 The auxiliary power supply of the MV UPS during PCM and IM modes of operation is generated internally. However, an external auxiliary power supply must be available during the commissioning and servicing for starting of the HiPerGuard MV UPS. This is required for powering the main controller, precharging the DC bus, and controlling the MV switchgear.
-
Page 29: Major Mv Ups Components
— 3.3 Major MV UPS components This section introduces the main components of the HiPerGuard MV UPS. — Figure 3.17: HiPerGuard MV UPS 2.25 MVA product overview — Note: The utility enclosure located between the DCT and the APS is not populated on the Li-Ion version. - Page 30 H I P E R G U A R D M V U P S U S E R M A N U A L — Figure 3.18: HiP- erGuard MV UPS major components - front side. — Figure 3.19: HiP- erGuard MV UPS major compo- nents - rear side.
- Page 31 3.3.1.2 Graphical Display Module (GDM) The GDM is located in the PE120-1 enclosure. This user interface of the HiPerGuard MV UPS is connected to the main controller. Through the GDM, it is possible to operate the HiPerGuard, read/edit its parameters, reset alarms and faults, and access power-quality events data.
- Page 32 3.3.3 Medium Voltage Magnetics enclosure (MVM) iliary Charger) This is the medium voltage section of the HiPerGuard MV UPS that includes the coupling transformer and the line reactor. The coupling transformer connects the low voltage power converters to the medium voltage network. The isolating line reactor, which is a 50% impedance, isolates the coupler transformer and the load from the utility.
-
Page 33: Cooling System
The air enters the HiPerGuard MV UPS enclosures through the louver panels at the front and exits through the air outlet at the top (except for the APS enclosure where the outlet is located on the front door). - Page 34 H I P E R G U A R D M V U P S U S E R M A N U A L — Figure 3.30: Air flow direction for the rear side. 3.4.1 PE120 Enclosure air flow diagram The enclosure airflow is managed as shown in Figure 3.31, where the air gets drawn from the enclosure front through the PEBBs fans and routed to the back and then upwards to the top exhaust.
-
Page 35: Model Definition
The product type code defines the char-acteristics and features of the HiPerGuard MV UPS. The type code is unique for each model of HiPerGuard MV UPS and specifies all the parameters needed to order the product. Fig- ure 4.01 outlines the structure of the type code. -
Page 36: Magnetics Configuration
“T” corresponds to the top cable entry for the medium voltage input/output cables. — 4.6 System voltage The HiPerGuard MV UPS covers a wide range of medium voltage levels. The voltage is referred to as the line to line RMS voltage unless otherwise is specified. Service Voltage Voltage Code 6.6 kV... -
Page 37: Energy Storage Code
“1” in their code, while single units are identified by the number “0”. For example, if the total load is 9 MVA, the system shall be composed of 4 HiPerGuard MV UPS units with the number “1” in their type code. -
Page 38: Demand Response Interface
H I P E R G U A R D M V U P S U S E R M A N U A L — 4.12 Demand response interface The HiPerGuard MV UPS can provide a demand response (DR) interface for an external demand response control- ler (DRC). The demand response interface allows the customer to manage changes in supply/demand for electrical power. -
Page 39: Technical Specifications
> 0.96 Under nominal conditions supply Battery charging current 10-20% Grid supplied on top of the load current Please contact ABB for other distribution Power Distribution system IT, 3-Wire Input systems Full linear load, under nominal conditions, Current distortion THDi <... -
Page 40: Load Output
Battery sizing dependent 110%, 60 min Power conditioning mode 125%, 5 min From nominal conditions 150%, 1 min Please contact ABB for other distribution Power Distribution system IT, 3-Wire Output systems Full linear load, under nominal conditions, Voltage distortion THDv <... -
Page 41: Environmental Conditions 1
— 5.4 Environmental conditions Environmental Excluding energy storage. Daily and yearly max. Aver- Operating temperature range 0 °C - 40 °C ages apply, nominal system temperature is based on 25°C Storage temperature range -20 °C - +60 °C Excluding energy storage Relative humidity 5 –... -
Page 42: Dimensional Data
Dimensions in mm (W x H x D) Including isolating line reactor and coupling 2,434 transformer (+-10%) Weight in kg 13,875 Connections HiPerGuard MV UPS only, system input/out- AC Input / AC Output put MV switchgear is project dependent DC Input Top / Bottom Connection Type Cable —... -
Page 43: External Power And Control Connections
— 6.1 Overview of external connections The HiPerGuard MV UPS has different connection points for various external devices and functions. The medium voltage input and output power connection points are in the MVM enclosure. In contrast, the connections to the positive and negative poles coming from the energy storage are housed on the DCT enclosure. -
Page 44: Medium Voltage Connections To Mvm Enclosure
H I P E R G U A R D M V U P S U S E R M A N U A L — 6.2 Medium voltage connections to MVM enclosure The medium voltage input and output cables coming from the switchgear are connected to the MV UPS on the top of the MVM enclosure. -
Page 45: Power And I/O Interfaces To Aps Enclosure
— 6.4 Power and I/O interfaces to APS enclosure 6.4.1 External auxiliary 3-phase power supply input An external power supply is required for system start-up. This is not needed once the system is running. The re- quirements are summarized in Table 6.01. External A.C. - Page 46 The stop input is activated on the falling edge, which means that a transition from 24 Vdc to 0 V will command the HiPerGuard MV UPS to stop. If the control via DI is not required, the terminals X11:5 and X11:6 on the APS enclosure...
- Page 47 The start input is activated on the rising edge; hence a transition from 0 V to 24 Vdc will command the HiPer- Guard MV UPS to start. Please note that the HiPerGuard MV UPS will not start if either the EPO or stop command is active (open circuit between terminals X11:1 and X11:2 for EPO and X11:5 and X11:6 for stop).
- Page 48 6.4.5 Demand Response Controller Application & Connections It is possible to configure the HiPerGuard MV UPS to provide grid support services to aid the utility grid in the sup- ply of power if ever the grid demand temporarily exceeds grid supply. This requires the connection to a third party “Demand Response Controller”...
- Page 49 Island detection routines in the HiPerGuard MV UPS based on phase and frequency change will need to be muted, and angle tracking filters sped up, to prevent this from causing frequent apparently spurious transitions from Power Conditioning mode to Inde- pendent mode and opening of Sin.
- Page 50 6.4.8 Auxiliary AC power outputs The HiPerGuard MV UPS has available two auxiliary 400Vac three-phase power supplies, for use as and when re- quired. The first power supply is internally fed, so is continuously available. This may be required, for example, by the En- ergy Storage enclosure(s) for fan supply.
- Page 51 6.4.9 Auxiliary DC power outputs The MV UPS provides 24 Vdc auxiliary power supply for the Energy Storage, Generators, and external Demand Re- sponse Controllers. Table 6.03 shows the terminals' configuration. The current on each output must not exceed 10 A. Terminal Number Description...
-
Page 52: Communication Between Mv Switchgear
6.5 Communication between MV UPS and MV Switchgear There is a high-speed optical communication link between the HiPerGuard MV UPS’s main controller and the switchgear. The purpose of the link is to read and write information from/to the I/O modules installed in the MV switchgear. -
Page 53: Modbus Tcp/Web Interfaces
It is possible to connect two or more HiPerGuard MV UPS units in a parallel configuration. The medium voltage in- put and output connections of the group are paralleled via the medium voltage switchgear. This enables the MV UPS system total output power capacity to be increased according to the number of units in parallel, and to achieve redundancy in the event of a fault with one of the units. - Page 54 The Figure 6.11 shows n HiPerGuard MV UPS units connected in parallel. Note that two network switches are re- quired (not included on MV UPS scope of supply), each with enough Ethernet ports to support the number of units in parallel.
-
Page 55: User Interface
The primary user interface for configuration of the HiPerGuard MV UPS is via the Graphic Display Module (GDM) which is mounted on the door of the PE120-1 enclosure. It allows local control of the HiPerGuard MV UPS and shows the system status and provides access to the operating parameters and event history. - Page 56 H I P E R G U A R D M V U P S U S E R M A N U A L Below the status bar, there is a symbol that indicates the MV UPS health with event code that displays the highest priority.
- Page 57 7.1.2 General Overview The Figure 7.04 shows the distribution of information across the GDM pages. The next sections will provide a detailed description of each page.
- Page 58 H I P E R G U A R D M V U P S U S E R M A N U A L — Figure 7.04: Pages map.
- Page 59 7.1.3 GDM main screen The GDM home menu is the “System Main Menu”, where it shows system status and real-time measurements. This page has three main columns : – Input • Shows input three-phase voltage (kV), frequency (Hz), reactive power (kvar), active power (kW) and apparent power (kVA) measurements on the left.
- Page 60 H I P E R G U A R D M V U P S U S E R M A N U A L The power flow in the MV UPS system is categorized into four system states. System states Bypassed Starting/Stopping Power Conditioning...
- Page 61 — Figure 7.07: MV UPS system view page. 7.1.5 Precharge This screen shows whether precharge conditions are achieved or not and if the DC bus voltage and energy storage bus voltage are the same or not. When system precharge conditions are not satisfied, the system transit to precharge mode. It generally occurs following commissioning or maintenance in which precharge process will need to be completed prior to the sys- tem is started.
- Page 62 H I P E R G U A R D M V U P S U S E R M A N U A L — Figure 7.09: Active Events page Icon Description/Function Indicates the number of active events (can be seen from any page) Indicates an active fault Indicates a warning Indicates the total number of active events...
- Page 63 Energy Storage bus system imbal- The center point voltage of Energy Storage bus is compared W5.49 ance detected with ground and has EXCEEDED A PRESET MAXIMUM LIMIT. The feedback contact on an Energy Storage MCCB indicates W5.51 Energy Storage MCCB not closed this MCCB is OPEN.
- Page 64 H I P E R G U A R D M V U P S U S E R M A N U A L Output Switch circuit breaker is detected as being racked out W5.146 Sout racked out from its cubicle. W5.149 Sout relay warning Output switch circuit breaker relay warning.
- Page 65 7.1.6.2 List of Faults Event Description The averaged DC bus voltage has been detected as too high. The F5.23 DC bus voltage too high system has TRIPPED and the load has been transferred to BY- PASS. The averaged DC Bus voltage has fallen to a level where storage is F5.26 DC bus voltage too low deemed to be depleted.
- Page 66 H I P E R G U A R D M V U P S U S E R M A N U A L The RMS value of output line voltage has fallen below the low volt- F5.171 Output voltage too low age threshold value for more than a preset time.
- Page 67 7.1.8 Power Quality Events This page lists the power quality events detected since the MV UPS was first started, or since this record was last downloaded. Note that the log has a capacity of up to 10,000 events. The oldest events appear at the bottom of the log.
- Page 68 7.1.12 Settings The settings page gives access to the HiPerGuard MV UPS system parameters based on user login and their acces- sibility level. The parameters are organized into different groups, and each one has specific access rights.
- Page 69 — Figure 7.13: Set- tings page 7.1.12.1 List of Parameters Group Parameter Description Access Electrical System Nominal Voltage Read only Electrical System Nominal Current Read only Electrical System Nominal Frequency Read only System Configuration System Topology Read only General Date and Time Read/Write General Customer Name...
-
Page 70: Web Interface
A web version of the HiPerGuard GDM is also accessible from the Local Area Network. The web interface can be ac- cessed from any device inside the local network with a web browser by entering the HiPerGuard MV UPS's IP ad- dress into the address bar. - Page 71 7.3.1 List of user accounts The HiPerGuard includes an ABB Service account which is accessible via Secure Shell (SSH). No other accounts are enabled for SSH access. Operator parameter setting to temporarily allow ABB access for Service actions. SSH is disabled by default, however it can be enabled from the GDM through an Operator parameter setting to temporarily allow ABB access for Service actions.
-
Page 72: Operation
— 8.1 Machine State Flow diagram While the HiPerGuard MV UPS system is operational, it has two basic modes of operation Power conditioning mode (PCM) and Independent mode (IM). This section explains the HiPerGuard MV UPS machine different states transitioning between modes of operation and the logic driving the control of transitioning from one state to an- —... - Page 73 “PCM_Active state”. • The HiPerGuard MV UPS(s) will attempt to ride through the event if it is a shallow surge or sag event. • If during the event, the grid voltage goes outside the Sin input breaker(s) management curves, then the HiPerGuard MV UPS(s) commands (all) Sin to open.
-
Page 74: System Start
Before commencing precharge, check to ensure the HiPerGuard MV UPS(s) is (are) in “Bypass isolate mode”, as shown in Figures 8.02 and 8.03. Table 8.01 describes the precharging steps. - Page 75 Step User Action System Response User selects “Precharge” screen on GDM and presses “Precharge” button MV UPS performs self-check. The float charger will precharge the inverter DC bus at a con- trolled rate. The User shall confirm that the battery voltage and the DC bus voltage, as displayed on GDM screen, are matching.
- Page 76 H I P E R G U A R D M V U P S U S E R M A N U A L — Figure 8.05: System (hard parallel) after “Precharge” process of the DC bus is complete. 8.2.2 System start Once sufficient MV UPS units are pre-charged, the MV UPS system is now ready to start and in bypass.
- Page 77 After Sout and Sin are closed, the MV UPS unit opens Sabp. After the Sapb is opened, the MV UPS system starts the transition to power conditioning mode. — Table 8.02: MV UPS starting steps. — Figure 8.06: MV UPS operating in Power Conditioning Mode.
-
Page 78: System Bypass
H I P E R G U A R D M V U P S U S E R M A N U A L — 8.3 System Bypass The system can be bypassed from the GDM, digital I/O or Modbus TCP. If the System Stop button is pushed on the GDM and the MV UPS is in Independent mode or the utility voltage is not within acceptable limits, the system will ask the operator to confirm or abort the request. - Page 79 The MV UPS(s) is (are) fully supplying the load active and reactive power requirements while being disconnected from the input. The system monitors for the return of a reliable power supply to enable resynchronization. — Figure 8.08: MV UPS operating in Inde- pendent Mode (IM).
-
Page 80: Resynchronize Mode
H I P E R G U A R D M V U P S U S E R M A N U A L — 8.5 Resynchronize mode While the MV UPS(s) is (are) disconnected from the input and suppling the load, it monitors the input voltage for the return of the grid supply or a backup generator. -
Page 81: Hard Fault
— 8.7 Hard fault Hard faults are extremely rare situations where multiple failures occur at the same time, and the system is not ca- pable of holding the voltage for any longer. In the case of hard-parallel configuration, the remaining units will sup- port the load (N+1 configuration, for instance). -
Page 82: Energy Storage Depleted
H I P E R G U A R D M V U P S U S E R M A N U A L — 8.8 Energy storage depleted The energy storage autonomy definition is an essential part of the system design. Depending on the load condi- tions, the time which the MV UPS can support the load when operating on Independent mode can be extended (in case of the load is lower than the projected load) or reduced (when operating under overload condition). -
Page 83: Maintenance Schedule
The recommended intervals for maintenance and component replacement are based on the normal operating conditions of the HiPerGuard MV UPS. The HiPerGuard MV UPS should be checked at least annually by qualified personnel whose recommendations should be followed. Depending on the actual conditions of the MV UPS, main- tenance work can be carried out before or after the recommended interval. - Page 85 With regard to purchase orders, the agreed particulars shall prevail. ABB AG does not accept any responsibility whatso- ever for potential errors or possible lack of information in this document.
