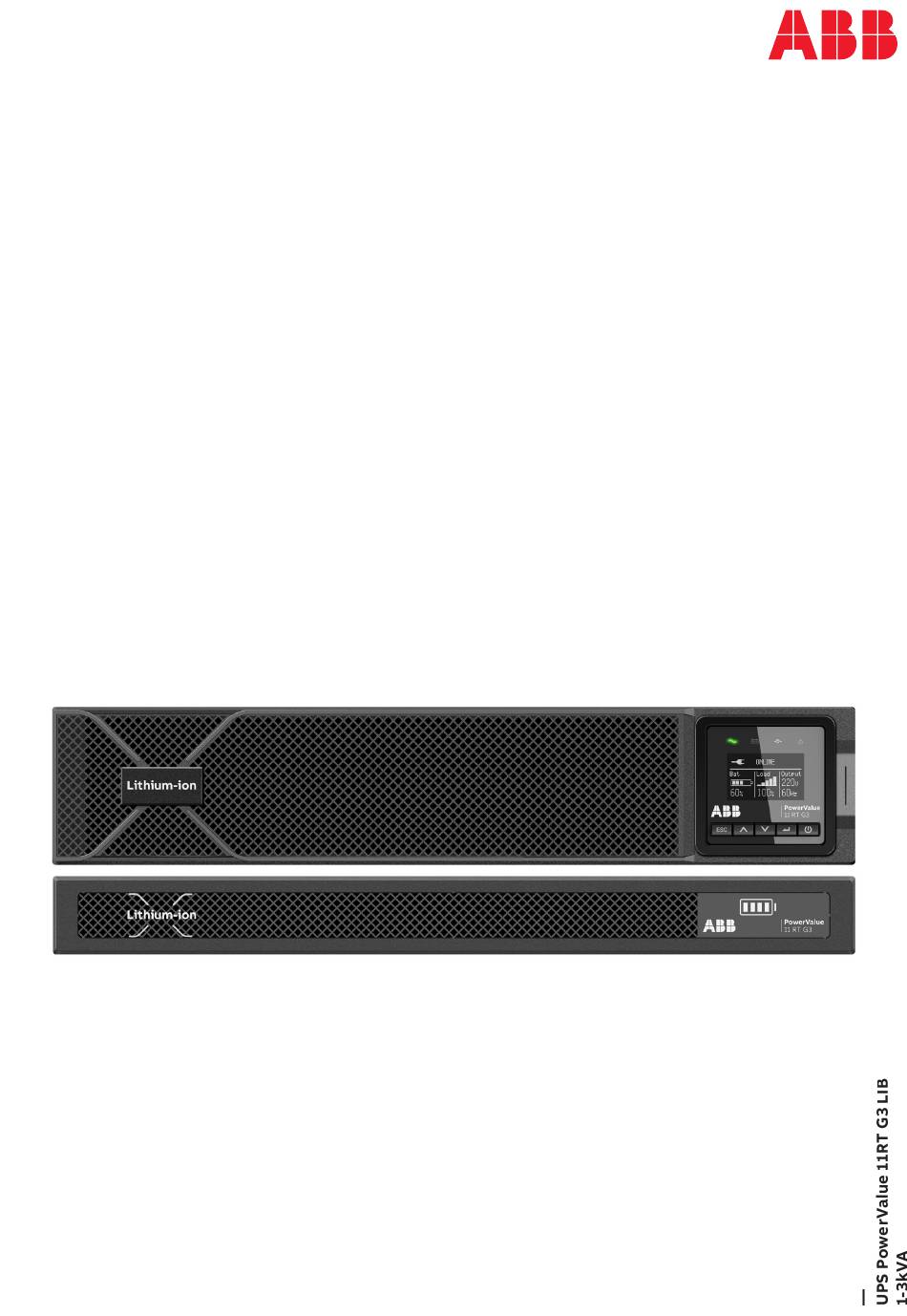

— U S E R M A N UA L UPS PowerValue 11RT G3 LIB 1-3 kVA...
Page 2
A B B U P S P R O D U C T S A N D S O L U T I O N S — About this manual — Document information File name 4NWD005720_OPM_ABB_PowerValue 11RT G3 LIB 1-3kVA_EN_REV-A UPS model UPS PowerValue 11RT G3 LIB 1-3KVA Date of issue September 15, 2024 Issued by Product marketing Checked by R&D Article number...
Page 4
A B B U P S P R O D U C T S A N D S O L U T I O N S 4.5 Operating mode ..........22 4.6 Control and product information .
Page 5
All service and maintenance work must be ELECTRICAL MAINTENANCE PERSONNEL performed only by service personnel qualified THAT THE CIRCUIT FEEDS A UPS. and authorized by ABB, refer to service MAKE SURE THAT WARNING LABEL manual(separate document). DANGER CONTAINS THE FOLLOWING TEXT OR EQUIVALENT: “ISOLATE THE UPS...
Page 6
DO NOT OPEN OR DESTROY THE BATTERIES. ESCAPING ELECTROLYTE CAN CAUSE INJURY TO THE SKIN AND EYES, AND MAY ALSO BE TOXIC. — 1.3 Declaration of safety conformity and CE marking The UPS PowerValue 11RT G3 LIB 1-3KVA is These products also meet the following designed, manufactured and commercialized in product standards: —...
Page 7
1.4 Inquiries Inquiries regarding the UPS should be before contacting ABB or the authorized agent. addressed to the local ABB office or agent The serial number is shown on the nameplate of authorized by ABB. Please have the model name the product.
Page 8
A B B U P S P R O D U C T S A N D S O L U T I O N S — 2. General characteristics UPS cabinet Article number Unit Size (W*H*D)(mm) Net weights (kg) UPS PowerValue 11RT G3 LIB 1 kVA 4NWP100300R0001 438*85.5*445 14.95 UPS PowerValue 11RT G3 LIB 1.5 kVA 4NWP100300R0002 15.2...
Page 9
— 2.2 UPS front panel and rear panel — 2.2.1 UPS front panel 2.2.1-1: UPS front panel for UPS PowerValue Figure 2.2.1-1 shows the front panel 11RT G3 LIB 1-3KVA Lithium-ion — 2.2.1-1 2.2.2 UPS rear panel — 2.2.2-1: UPS PowerValue 11RT G3 LIB 1/1.5K The figures below show the connectors and ports in the UPS rear panel.
Page 10
A B B U P S P R O D U C T S A N D S O L U T I O N S — 2.2.2-3 Description EBM auto detection Slot Card Box EBM Connector RPO/Dry in/Dry out RS232 Input Socket(1k/1.5k:10A,2K/3K:16A) Programmable Output Socket (1-3KVA:10A)
Page 11
G E N E R A L C H A R A C T E R I S T I C S — 2.3 EBM front panel and rear panel — 2.3.1 EBM front panel (external battery module) 2.3.1-1: EBM front panel —...
Page 12
A B B U P S P R O D U C T S A N D S O L U T I O N S — 3. Installation — 3.1 Delivery, transportation and storage 3.1.1 Visual inspection When receiving the goods, make sure that they The packing container of the UPS protects it from correspond to the material indicated in the mechanical and environmental damage.
Page 13
I N S TA L L AT I O N — 3.1.3 Unpacking UPS and EBM cabinet 3.1.3-1: unpackaging UPS cabinet THE SYSTEM MAY BE INSTALLED ONLY BY QUALIFIED ELECTRICIANS IN ACCORDANCE WITH THE APPLICABLE SAFETY REGULATIONS. THE CABINET IS HEAVY—IT MUST BE INSTALLED BY AT LEAST TWO PEOPLE. WARNING UNPACKING THE UNIT IN A LOW-TEMPERATURE ENVIRONMENT MAY CAUSE CONDENSATION IN AND ON THE CABINET.
Page 14
A B B U P S P R O D U C T S A N D S O L U T I O N S 3.1.4 Storage of the UPS If you store the equipment for a long period, recharge the battery according to the information of the below table by connecting the UPS to utility power.
Page 15
I N S TA L L AT I O N — 3.2.2 Rack-mount installation 3.2.2-1 Schematic diagram of guide rail installation — TO AVOID INJURY FROM FALLING 3.2.2-2 OBJECTS, MAKE SURE THAT THE RACK Ear mounting Diagram CABINET CAN ACCEPT THE UPS WEIGHT —...
Page 16
A B B U P S P R O D U C T S A N D S O L U T I O N S 3.2.3 Tower installation TO AVOID INJURY FROM TRIPPING, PLACE THE UPS AND EBM ENCLOSURES AND RUN CABLES WHERE THEY DO NOT POSE A TRIP HAZARD.
Page 17
I N S TA L L AT I O N — 3.3 Power cables connection This chapter describes how to connect AC input/output cables for the UPS and the connection of the UPS to the EBM. — 3.3.1 UPS functional block diagrams 3.3.1-1: Logic block diagram Bypass...
Page 18
A B B U P S P R O D U C T S A N D S O L U T I O N S 3.3.2 Input /output specification (recommended) UPS power rating (W) Input cable Output cable Main input breaker 1000 10A_ IEC C13 to SCHUKO 10A_ IEC C13 to IEC C14...
Page 19
O P E R AT I O N — 4. Operation — 4.1 LCD panel — The UPS provides useful information about the UPS itself, load status, events, measurements and 4.1-1 LCD panel settings. Indicators Button — 4.1-1 The LED: The following table shows the indicator status and description: Indicator Status...
Page 20
A B B U P S P R O D U C T S A N D S O L U T I O N S Scroll down Press to scroll down the menu option Enter menu Select/confirm the current selection Exit the current Press to exit the current menu to the main menu or the higher-level menu without menu...
Page 21
O P E R AT I O N — 4.4 Menu structure — 4.4-1 HMI Tree Language, output voltage, Start up user password, Date/Time Ini�al Se�ngs (First use) Online Mode, backup �me, Main percentage of load, Load Input 230v Pop-up screen input/output informa�on window...
Page 22
A B B U P S P R O D U C T S A N D S O L U T I O N S — 4.5 Operating mode TO SWITCH MODES, THE ORIGINAL MODE MUST BE DISABLED, AFTER WHICH THE NEW MODE IS SET.
Page 23
O P E R AT I O N Convert The UPS would free run with fixed output frequency Load Output 230v Converter mode (50Hz or 60Hz). The load should be derating to 60% in converter mode. Bypass Bypass mode is a mode in which the input power is Load Input 230v...
Page 24
A B B U P S P R O D U C T S A N D S O L U T I O N S — 4.6 Control and product information Main menu Submenu Menu function Go to Bypass Transfers the UPS to Bypass mode Load segments Load segment on/off...
Page 25
O P E R AT I O N — 4.7-1 Language Se�ngs Language The language setting Language English Español — User password Français Italiano 4.7-2 Audible alarm Deutsch Polski The setting of the 中文 Output voltage Español user password Output frequency Italiano —...
Page 26
A B B U P S P R O D U C T S A N D S O L U T I O N S — Auto bypass Se�ngs 4.7-7 The Auto bypass setting Audible alarm Enabled Output voltage —...
Page 27
O P E R AT I O N — 4.7-13 Dry in signal Se�ngs The setting of Dry in signal Start / Restart Func�on Disabled Site wiring fault — Overload prealarm 4.7-14 The setting of Dry in signal Dry out signal Dry out signal —...
Page 28
A B B U P S P R O D U C T S A N D S O L U T I O N S — 4.8 Starting the UPS with utility BEFORE STARTUP OF THE UPS, MAKE SURE THAT THE WIRING IS SECURELY CONNECTED, —...
Page 29
O P E R AT I O N — 4.9 Starting the UPS on battery — BEFORE USING THIS FEATURE, THE UPS MUST HAVE BEEN POWERED BY UTILITY POWER WITH 4.9-1 UPS standby to OUTPUT ENABLED AT LEAST ONCE. battery mode NOTE Cold start can be disabled;...
Page 30
A B B U P S P R O D U C T S A N D S O L U T I O N S — 4.10 UPS shutdown — If the UPS is operating in online mode and the power button is pressed for more than 3 seconds, the 4.10-1 Online mode to UPS will go into bypass mode if bypass mode is enabled, or into standby mode if bypass mode is...
Page 31
C O M M U N I C AT I O N — 5. Communication — 5.1 RS232 and USB 1. Communication cable to the serial or USB port on the computer. 2. Connect the other end of the communication cable to the RS232 or USB communication port on the UPS.
Page 32
A B B U P S P R O D U C T S A N D S O L U T I O N S — • Dry in 5.2-1: Dry in terminal The Dry in function can be configured (See 4.7 User Settings > Dry in signal) —...
Page 33
C O M M U N I C AT I O N — 5.3 Intelligent Card (Optional) Intelligent Card allow the UPS to communicate with different types of devices in variety of networking environments. The 11RT G3 LIB 1-3KVA could use the following connectivity cards, please contact your local distributor for details •...
Page 34
A B B U P S P R O D U C T S A N D S O L U T I O N S — 6. UPS Maintenance — 6.1 Equipment care For optimal preventive maintenance, keep the area around the equipment clean and dust free. If the atmosphere is very dusty, clean the outside of the system with a vacuum cleaner.
Page 35
U P S M A I N T E N A N C E — • Replacing the internal battery 6.4-1 Replacing the internal battery 1. Remove the front panel of the UPS by pushing down the tabs on both sides of the front panel of the UPS (Figure 1) 2.
Page 36
A B B U P S P R O D U C T S A N D S O L U T I O N S 1. Put the new battery pack into the UPS. 2. Screw back the metal protection covers and the front panel. 3.
Page 37
T R O U B L E S H O OT I N G — 7. Troubleshooting The UPS is designed for durable, automatic operation and also alert you whenever potential operating problems may occur. Usually the alarms shown by the control panel do not mean that the output power is affected.
Page 38
A B B U P S P R O D U C T S A N D S O L U T I O N S Conditions Possible cause Action Bypass mode An overload or a fault has occurred, Equipment is powered but not protected by the UPS. or a command has been received Check for one of the following alarms: and the UPS is in Bypass mode.
Page 39
ABB and its affiliates are not liable for damages and/or losses related to such security breaches any unauthorized access, interference, intrusion, leakage and/or theft of data or information.
