MCR41/MCR42 User Manual
STATUS MENU
RX1
Group
Modulation bar
(from -42 to 0 dB)
Peak deviation
≥
56KHz
Quick Menu
From FW version 3.0, pushing "Arrow down/scan" button or "Arrow up/sync"
button, it's possible to enter in a circular menu where you can see the main
parameters of the receiver as frequency, group, channel, Expander, RF level,
squelch and audio level.
By name
By Ch/Gr

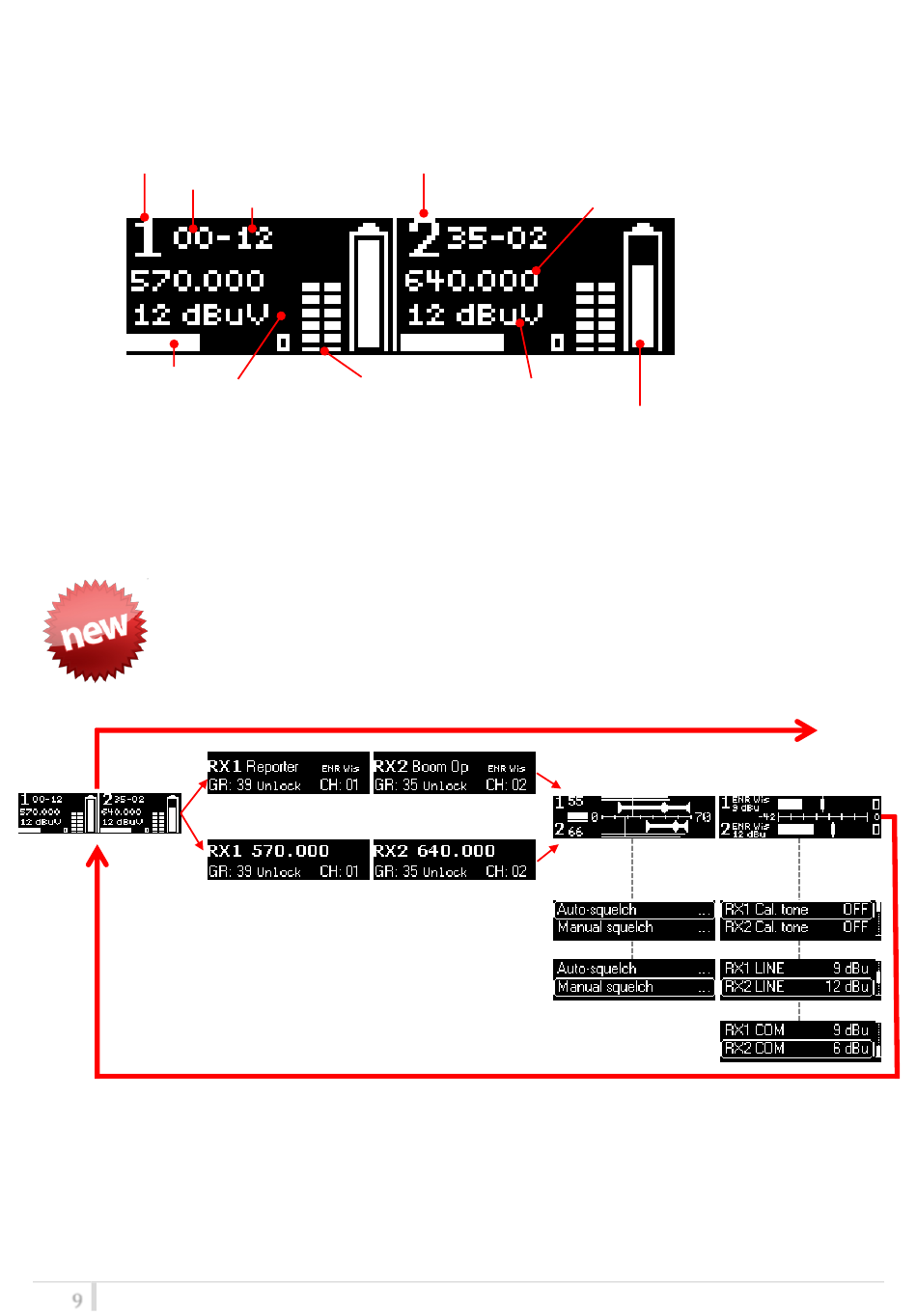

The screens of the circular menu are described in the following table
9
RX2
Channel
RF bar
(8 steps of 10dBµV,
from 10 to 80 dBµV)
Frequency
Squelch Level
TX battery
Level
Status Screen
