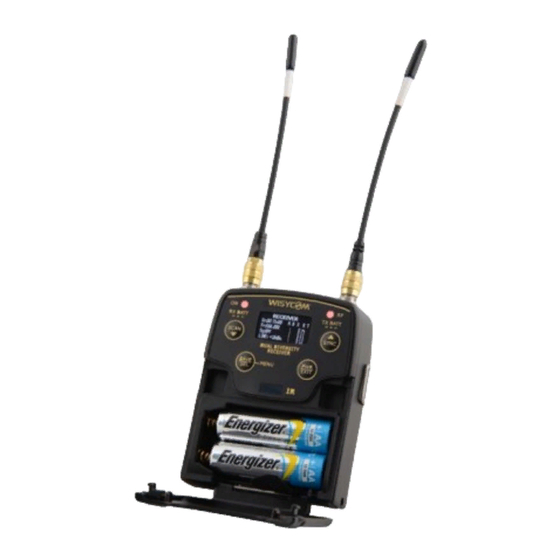

- Page 1 MPR52-ENG User Manual High performance Diversity Two channels Camera Receiver SN: ________________ rev.14 (ref. FW 1.1)
- Page 2 MPR52-ENG User Manual...
-
Page 3: Main Features
- 2 x AA batteries Operation and charger (lithium) thru USB connector Monitor & control through USB and Wisycom Manager 2.0 (computer SW): This transform MPR52 in a quick and low noise portable spectrum scanner Please note that the two channels, in order to protect them from potential interferences coming from having the ultra-wide band, must use frequencies included into a 30 MHz filter range. - Page 4 Reduce the power or suspend the hearing in case of any kind of hearing problem. BATTERIES MPR52-ENG works with standard camera battery: 2xIEC-LR6 1.5 size-AA alkaline or NiMh rechargeable KLIC 8000 (lithium-ion, rechargeable) DB50 (lithium-ion, rechargeable)
- Page 5 MPR52-ENG User Manual dedicated charger thru the integrated micro-usb-B connector thru ACM50 battery charger We don't recommend to use the device during the batteries charging with lithium-ion rechargeable batteries inside. Don’t use the receiver without batteries . The receiver powered thru micro-USB or mini-XLR connector without batteries doesn't work correctly.
- Page 6 MPR52-ENG User Manual VARIANTS: MPR52-ENG- <Freq Range> ▪ FREQUENCY RANGE 470-800 MHz, 940-960 MHz (for USA), 960-1160 MHz (DME) 470-800 MHz, 960-1160 MHz (DME), 1240-1260 MHz (for Japan) 470-800 MHz, 960-1160 MHz (DME), 806-810 MHz (for Japan) USA: , 47 CFR 15 Subpart B...
-
Page 7: Front Panel
MPR52-ENG User Manual FRONT PANEL MPR52-ENG allows an easy and quick configuration using buttons, RGB LED’s and a high contrast OLED Display. Infrared port USB port SCAN/DOWN Button Push this button together with PWR/EXIT (C) to run the auto scan. When inside any menu use this button to scroll down. -
Page 8: Front View
SMA connectors Antenna A & B SMA antenna Connector A and B MPR52-ENG is supplied with a pair of antennas tuned on 232 MHz bandwidth. Depending on the working bandwidth, it can be provided with different antenna ranges. For more details see the “Products” “MPR52-ENG” “Accessories” section on our website www.wisycom.com. - Page 9 MPR52-ENG User Manual TREE MENU Infrared Preset •Active •Load [Preset1,Preset2,Preset3, User1, User2, factory] •Save [User1, User2] Audio Settings •Headphones •Volume [Min, -56,...,-5, Max] •Rx [Rx1(L); Rx2[r]... •Signal [LINE, TSQ>LINE] •Output type [Analog, AES3] •OUT RX1 [-35, .., 18dBu] •OUT RX2 [-35, ..,18dBu] •Sig.ph.RX1 [0,180]...
-
Page 10: Technical Data
• Noise Reduction : ENR / ENR-1.2 (Wisycom Extended-NR) , noise optimized ENC / ENC-1.2 (Wisycom Extended-NC), voice optimized & with reduced pre-emphasis ENS (for live application) ⇒ Others, compatible with most systems, thru an internal DSP emulation of SA572,... -
Page 11: Italy Only
MPR52-ENG User Manual ITALY ONLY Obblighi di informazione agli utilizzatori Modello di informazioni agli utenti dei prodotti di tipo “professionale” INFORMAZIONE AGLI UTENTI Ai sensi dell’art. 13 del Decreto Legislativo 25 luglio 2005, n. 151 “Attuazione delle Direttive 2002/95/CE, 2002/96/CE e 2003/108/CE, relative alla riduzione dell’uso di sostanze pericolose nelle apparecchiature elettriche ed elettroniche, nonché... - Page 12 MPR52-ENG User Manual Via Spin 156 I-36060 Romano d’Ezzelino Italy Tel. +39 -0424 -382605 Fax +39 - 0424 - 382733...
