WisyCom MCR42 Manual

HIGH PERFORMANCE DUAL TRUE DIVERSITY RECEIVER
DIGITAL AUDIO DSP BASED
Up to 240 MHz bandwidth in 470/822 MHz range
Modular stand-alone or slot-in format
40 groups of 60 frequencies fully user programmable
Broadcast superlative quality of any audio-signal transposition
DSP fully digital audio processing for broadcast superlative
quality and multicompander compatibility
Infrared interface for programming and transmitter
synchronization
Easy setup and operation thru a OLED display
Wisycom exclusive digital sub-carrier telemetry
technology allows:
MCR42

Main Features

remote TX battery monitoring
advanced tone-squelch operating
PTT function (An optional back-
panel module is available, with the
secondary intercom output)
Exceptional sturdiness and absolute
reliability even in very congested
environments
Amazing small size
Very easy and pleasant use with easy status indication by
means of RGB LEDs

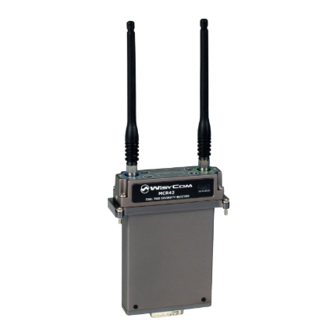

MCR42 is a camera dual true diversity wireless-microphone receiver system
in a modular stand-alone or slot-in configuration (compatible with most
camera's slot).

 camera "slot-in" receiver (for Ikegamy, Philips, Sony cameras)
camera "stand-alone" very small dual true-diversity receiver,
powered by 4 ÷ 18 Vdc external source
All audio processing is managed by a powerful DSP to allow
multicompanding, audio enhancement and a digital control data.
Very easy and versatile thanks to its:
Oled display,
navigation button controls,
infrared sinc and programming,
automatic scan.
Wisycom Srl Unipersonale - Via Spin, 156 - I-36060 Romano d'Ezzelino (VI) - Italy
tel. +39 0424 382605 fax. +39 0424 382733 http:// www.wisycom.com - e-mail: sales@wisycom.com
Iscrizione al Registro A.E.E. n. IT09100000006319
WIDEBAND DUAL TRUE DIVERSITY ENG RECEIVER

GENERAL DESCRIPTION

Subject to change without notice
