WisyCom MPR30-IEM User Manual

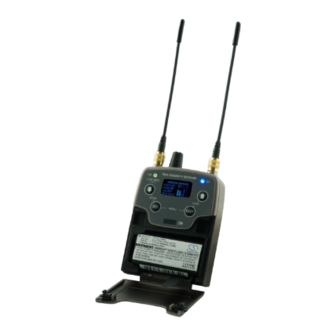

High performance true diversity receiver
Hide thumbs Also See for MPR30-IEM:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Manual
MPR30-IEM User Manual
High performance
True diversity
Receiver
SN: ________________
Rev. 01 (rif. FW v0.2)
Date: 09 May 2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MPR30-IEM and is the answer not in the manual?

Questions and answers

Related Manuals for WisyCom MPR30-IEM

Summary of Contents for WisyCom MPR30-IEM

  • Page 1 MPR30-IEM User Manual High performance True diversity Receiver SN: ________________ Rev. 01 (rif. FW v0.2) Date: 09 May 2013...

  • Page 2: Brief Description

    MPR30-IEM-N: 470/700 MHz (TV ch 21/49) MPR30-IEM-M:566/798 MHz (TV ch 33/61)  “best in class performances”, thanks to the latest Wisycom technology the unit has extreme RF sensitivity and immunity and superb audio quality  “a durable & upgradable investment”, thanks to the very robust design (aluminium housing) and the possibility to upgrade/enhance units performances.

  • Page 3: Safety Instruction

    AFETY INSTRUCTION  Read this safety instruction and the manual first  Follow all instructions and information.  Do not lose this manual.  Do not use this apparatus under the rain or near the water.  Do not install the apparatus near heaters or in hot environments, do not use outside the operating temperature range.
  • Page 4 ATTERIES MPR30-IEM works with standard camera battery: 2xIEC-LR6 1.5 size-AA alkaline or NiMh rechargeable KLIC 8000 (lithium-ion, rechargeable) Ricoh DB-50 (lithium-ion, rechargeable) DR9708 Duracell (lithium-ion, rechargeable) Battery status can be checked on OLED display or looking the status of LED indicator ON.

  • Page 5: Product Overview

    SMA connector Antenna B SMA connector Antenna A SMA antenna Connector A and B MPR30-IEM is supplied with a couple of antennas. According to the working band, different antenna models can be supply. All the models have Antenna Code label black cap and a black label with code in white colour.

  • Page 6: Front Panel

    Front panel MPR30-IEM allows an easy and quick configuration using buttons, RGB LED’s and an OLED display. ON Led Indicator RF Led Indicator SYNC/UP SCAN/DOWN Button MENU/SELECT MENU/EXIT Button Button Infrared Interface (IR) OLED Display The receiver has a high contrast display. Pushing one of the 4 buttons while the receiver is active (but the display is off), turn on automatically the display.
  • Page 7 * to put the MPR30-IEM in boot mode: power on the device push and keep both UP and DOWN buttons for few seconds (until the led indicators light up, then release the buttons)

  • Page 8: Putting The Diversity Receiver Into Operation

     verify the setting and eventually adjust the settings using the Operating Menu Status display - Receiver Name (ex. MPR30-IEM RX) - Group (ex. Gr:00) and Channel (ex. Ch:01) - Frequency (ex. Fr:697.000 MHz) - Squelch (ex. Sq:12dBuV) - Mode Stereo/Mix (ex. Stereo)
  • Page 9 PERATING From Status Display push SEL and EXIT together to enter on the Main menu Use UP/DOWN to navigate on all available menus Push SEL to select a menu item Use UP/DOWN to move on the different parameters of the menu Push SEL to modify the parameter menu Use UP/DOWN to change the parameter value Keep push SEL to save changing...

  • Page 10: Audio Settings

    Audio settings The Audio settings menu allows to configure the audio output. PARAMETER SETTING MEANING The left and right signals are available as usual. The Stereo Balance setting serves to adjust the balance between the left and right stereo signal. The left-right signals are mixed and are available as a Out mode mono signal in both headphone channels.
  • Page 11 (*)As per Wisycom standard, group 00 and group 01 or 09 are special; respectively the “center frequency” (474,482/… MHz) and the intergap frequency (i.e. 470/478/486/… MHz). A scan on...
  • Page 12 Infrared menu By this menu, MPR30-IEM can be connected to IRDA for setup or firmware upgrades. When the Infrared interface is active, the following screen is displayed. NOTE: while in this menu display is not automatically turned off.
  • Page 13 (for the transmitter with this advanced capability). Use the UP/DOWN buttons to change the selected character and push SEL button to switch to the next character. Info menu the INFO function shows many important features or information of MPR30-IEM receiver: PARAMETER example MEANING MPR30-...

  • Page 14: Preset Menu

    Preset menu This menu allows to load/save 3 user presets or load the Factory configuration. PARAMETER SETTING MEANING Select the Restore submenu and chose the presets to Restore 1/2/3/Factory load: user presets (1 or 2 or 3) or Factory preset. Push and keep SEL button to load the preset.

  • Page 15: Error List

    : When the receiver is reset the error information (code and error type on the list) are lost, with the exception of errors codes 87/88/89/8A. NOTE : To reset the error counter and the errors list, it is necessary to contact Wisycom. Message on display Error type...

  • Page 16: Troubleshooting

    Error during batteries charger message appears on the - change batteries (damage batteries or wrong batteries) display “I2C communication error” - send to repair at Wisycom message appears on the Communication error on bus I2C Repair Centre display “Device ID copy1 invalid Error during the initialization phase.
  • Page 17 (wdf) in the frequency memory frequency of the receiver of the receiver and (according to the receiver - contact Wisycom for more 470 MHz for MPR30-IEM-N 566 MHz for MPR30-IEM-M) information if the error code 86 appears on...

  • Page 18: Accessories And Parts

    ACCESSORIES AND PARTS AWNL30 For MPR30-IEM-N Band 470 ÷ 574 MHz Antenna Code label AWNH30 For MPR30-IEM-N Band 574 ÷ 700 MHz Antenna Code label AWML30 For MPR30-IEM-M Antenna Code Band 566 ÷ 654 MHz label Antenna Code label AWMH30 For MPR30-IEM-M Band 654 ÷...

  • Page 19: Technical Specifications

    : Stereo Plug 3.5mm(TRS) Locking (M6 x 0.5 thread) with 2 X 150mW @ 32 Ohm • Battery life : approx.. 5 hours (alkaline batteries), 8 hours (lithium batteries) NOTE [1]: RMS value, 22 Hz / 22 kHz, unweighted. The MPR30-IEM receiver complies with ETSI specifications: ETS 300 422.
  • Page 20 ECHANICAL RAWING Note: unit is mm...
  • Page 22 ITALY ONLY Obblighi di informazione agli utilizzatori Modello di informazioni agli utenti dei prodotti di tipo “professionale” INFORMAZIONE AGLI UTENTI ai sensi dell’art. 13 del Decreto Legislativo 25 luglio 2005, n. 151 “Attuazione delle Direttive 2002/95/CE, 2002/96/CE e 2003/108/CE, relative alla riduzione dell’uso di sostanze pericolose nelle apparecchiature elettriche ed elettroniche, nonché...
  • Page 24 • WISYCOM srl • Via Spin 156 • I-36060 Romano d’Ezzelino • Italy Tel. +39 -0424 -382605 • Fax +39 - 0424 – 382733 • www.wisycom.com • e-mail: sales@wisycom.com...
