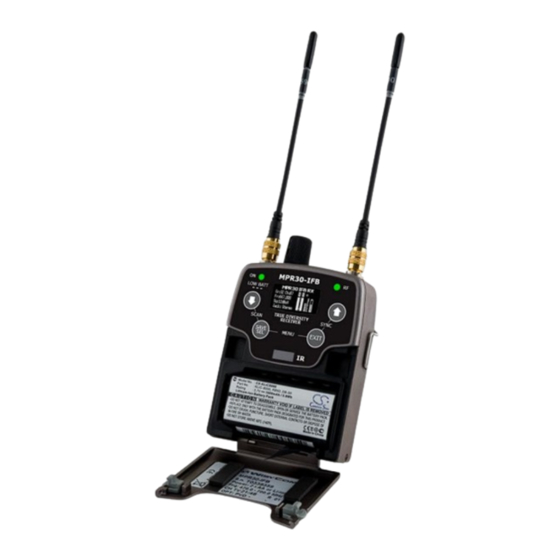

WisyCom MPR30-IFB User Manual

High performance true diversity
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MPR30-IFB User Manual
High performance
True diversity
Receiver
SN: ________________
Rev. 03 (rif. FW v1.5)
Date: 21 March 2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MPR30-IFB and is the answer not in the manual?

Questions and answers

Related Manuals for WisyCom MPR30-IFB

Summary of Contents for WisyCom MPR30-IFB

  • Page 1 MPR30-IFB User Manual High performance True diversity Receiver SN: ________________ Rev. 03 (rif. FW v1.5) Date: 21 March 2014...
  • Page 2 Rev. 03 MPR30-IFB User Manual...

  • Page 3: Brief Description

    MPR30-IFB User Manual RIEF DESCRIPTION MPR30-IFB is a compact true diversity receiver mono, designed for professional in-ear monitoring applications. This receiver features a real TRUE DIVERSITY configuration along with a unique wideband tuning range up to 232 MHz. The audio processing is mono based.

  • Page 4: Safety Instruction

    Rev. 03 MPR30-IFB User Manual AFETY INSTRUCTION  Read this safety instruction and the manual first  Follow all instructions and information.  Do not lose this manual.  Do not use this apparatus under the rain or near the water.
  • Page 5 Rev. 03 MPR30-IFB User Manual ATTERIES MPR30-IFB works with standard camera battery: 2xIEC-LR6 1.5 size-AA alkaline or NiMh rechargeable KLIC 8000 (lithium-ion, rechargeable) Ricoh DB-50 (lithium-ion, rechargeable) DR9708 Duracell (lithium-ion, rechargeable) Battery status can be checked on OLED display or looking the status of LED indicator ON.

  • Page 6: Product Overview

    SMA connector Antenna B SMA connector Antenna A SMA antenna Connector A and B MPR30-IFB is supplied with two couple of antennas. According to the working band, different antenna models can be supply. All the models have Antenna Code label black cap and a black label with code in white colour.

  • Page 7: Front Panel

    Rev. 03 MPR30-IFB User Manual Front panel MPR30-IFB allows an easy and quick configuration using buttons, RGB LED’s and an OLED display. ON Led Indicator RF Led Indicator SYNC/UP SCAN/DOWN Button MENU/SELECT MENU/EXIT Button Button Infrared Interface (IR) OLED Display The receiver has a high contrast display.
  • Page 8 The device is in the boot mode * to put the MPR30-IFB in boot mode: power on the device push and keep both UP and DOWN buttons for few seconds (until the led indicators light up, then release the buttons)

  • Page 9: Putting The Diversity Receiver Into Operation

     verify the setting and eventually adjust the settings using the Operating Menu Status display - Receiver Name (ex. MPR30-IFB RX) - Group (ex. Gr:00) and Channel (ex. Ch:01) - Frequency (ex. Fr:567.000 MHz) - Squelch (ex. Sq:9dBuV) - Jack (ex. Stereo)

  • Page 10: Display Menu

    Rev. 03 MPR30-IFB User Manual ISPLAY MENU Head Jack Stereo/Mono Low (-12÷+12) Equalizer Hi (-12÷+12) Audio Vol. boost -12÷+12dB Settings Output load 32Ω/16Ω Pwr limit OFF/100mW/50mW/30mW GR (0÷39) Gr-Ch CH (0÷59) N: 470.000÷700.000 Frequency M: 566.000÷798.000 *Only using lithium battery Squelch OFF*-0/3/6/9/12/15/18/21/24//28/32/36/40/46 dBµV...

  • Page 11: Audio Settings

    Rev. 03 MPR30-IFB User Manual From Status Display push SEL and EXIT together to enter on the Main menu Use UP/DOWN to navigate on all available menus Push SEL to select a menu item Use UP/DOWN to move on the different parameters of...
  • Page 12 From the transmitter it’s possible to see the graphic of the last scan and choose the frequency to tune. (*)As per Wisycom standard, group 00 and group 01 or 09 are special; respectively the “center frequency” (474,482/… MHz) and the intergap frequency (i.e. 470/478/486/… MHz). A scan on group...
  • Page 13 Rev. 03 MPR30-IFB User Manual “Scan now” menu The following table lists the three types of scans that can be performed Once started a Channel scan operation the receiver asks for group to be used*. Press and hold the SEL button to select the group to scan.
  • Page 14 Rev. 03 MPR30-IFB User Manual After few seconds, scan results are displayed on a histogram. Each column of the histogram is divided into two parts by a black line. The lower part indicates the number of free channels (RF level < Squelch level - 6dBµV) in the group, while the upper one the number of channels almost free (Squelch level <...
  • Page 15 OFF: LED indicators remain off. Infrared By this menu, MPR30-IFB can be connected to IRDA for setup or firmware upgrades. When the Infrared interface is active, the following screen is displayed. NOTE: while in this menu display is not automatically turned off.
  • Page 16 Operating menu for more details). From firmware version v1.3 the MPR30-IFB is able to manage up to 24 clones (from 00 to 23). The menus of the clone management allow to add/load and delete a clone. * It appears if exist at least a1 clone...
  • Page 17 Rev. 03 MPR30-IFB User Manual How to add a clone Out mode Balance Equalizer Vol boost Pilot tone Gr-Ch Squelch RX Name Clone name Enable the IRDA interface on the RX from which take the configuration (Infrared menu) Put the receivers face...
  • Page 18 NOTE: the clones are saved on the EPROM and remains saved also after a reboot of the device. NOTE: If a clone is loaded and then a reboot is executed, the MPR30-IFB always restarts with the previous configuration (default clone).

  • Page 19: Error List

    : When the receiver is reset the error information (code and error type on the list) are lost, with the exception of errors codes 87/88/89/8A. NOTE : To reset the error counter and the errors list, it is necessary to contact Wisycom. Message on display Error type...

  • Page 20: Troubleshooting

    Error during batteries charger message appears on the - change batteries (damage batteries or wrong batteries) display “I2C communication error” - send to repair at Wisycom message appears on the Communication error on bus I2C Repair Centre display “Device ID copy1 invalid Error during the initialization phase.
  • Page 21 (wdf) in the frequency memory frequency of the receiver of the receiver and (according to the receiver - contact Wisycom for more 470 MHz for MPR30-IFB-N 566 MHz for MPR30-IFB-M) information if the error code 86 appears on the error list:...

  • Page 22: Accessories And Parts

    Antenna Code label AWMH30 For MPR30-IFB-M Band 654 ÷ 798 MHz Antenna Code label Other accessories available: CAUSBM1 Micro USB cable (to configure MPR30-IFB and to recharge lithium battery) UPK300E Infrared programming kit (interface + software) USB interface MPRLBP Lithium-ion battery pack CS-KLIC8000 type Rating: 3.7Vdc @1600mAh (5.9Wh)
  • Page 23 MPR30 RX M OW TO USE ANAGER Wisycom MPR30 RX Manager can be used to load or save the channels memory and upgrade the firmware. Instruction to connect MPR30 using UPK300 / UPK300E Connect to the PC the infrared programming interface (UPK300 or UPK300E) using a USB cable (NOTE: it is not possible to use IR interface of MRK950 or MRK960) Check if the version of ENG RX Manager installed in your PC is the latest version.
  • Page 24 Rev. 03 MPR30-IFB User Manual If the connection is ended well, the Connected icon is showed on the top of the panel and “Connected on USB by UPK” is displayed on the information panel...
  • Page 25 Rev. 03 MPR30-IFB User Manual Instruction to connect MPR30 using USB cable: In order to use the micro USB port to configure the MPR30, it is necessary to install the MPR30 USB driver (see How to install MPR30 USB driver)

  • Page 26: How To Load/Save Channels Memory

    Rev. 03 MPR30-IFB User Manual How to load/save channels memory Write: Push the button Write from WDF file… and select the wdf file to load on the MPR30. Read and save: Push the button Read and save to WDF file… , insert the .wdf file name and the path where to save the wdf file.

  • Page 27: Technical Specifications

    • Headphone-output : Stereo Plug 3.5mm(TRS) Locking (M6 x 0.5 thread) with 2 X 150mW @ 32 Ohm • Battery life : approx.. 5 hours (alkaline batteries), 8 hours (lithium batteries) The MPR30-IFB receiver complies with ETSI specifications: ETS 300 422.
  • Page 28 Rev. 03 MPR30-IFB User Manual ECHANICAL RAWING Note: unit is mm...
  • Page 29 Rev. 03 MPR30-IFB User Manual...
  • Page 30 Rev. 03 MPR30-IFB User Manual ITALY ONLY Obblighi di informazione agli utilizzatori Modello di informazioni agli utenti dei prodotti di tipo “professionale” INFORMAZIONE AGLI UTENTI ai sensi dell’art. 13 del Decreto Legislativo 25 luglio 2005, n. 151 “Attuazione delle Direttive 2002/95/CE, 2002/96/CE e 2003/108/CE, relative alla riduzione dell’uso di sostanze pericolose nelle apparecchiature...
  • Page 31 Rev. 03 MPR30-IFB User Manual...
  • Page 32 Rev. 03 MPR30-IFB User Manual Wireless System Communications Via Spin 156  I-36060 Romano d’Ezzelino  Italy Tel. +39 -0424 -382605  Fax +39 - 0424 - 382733  e-mail: sales@wisycom.com www.wisycom.com...
