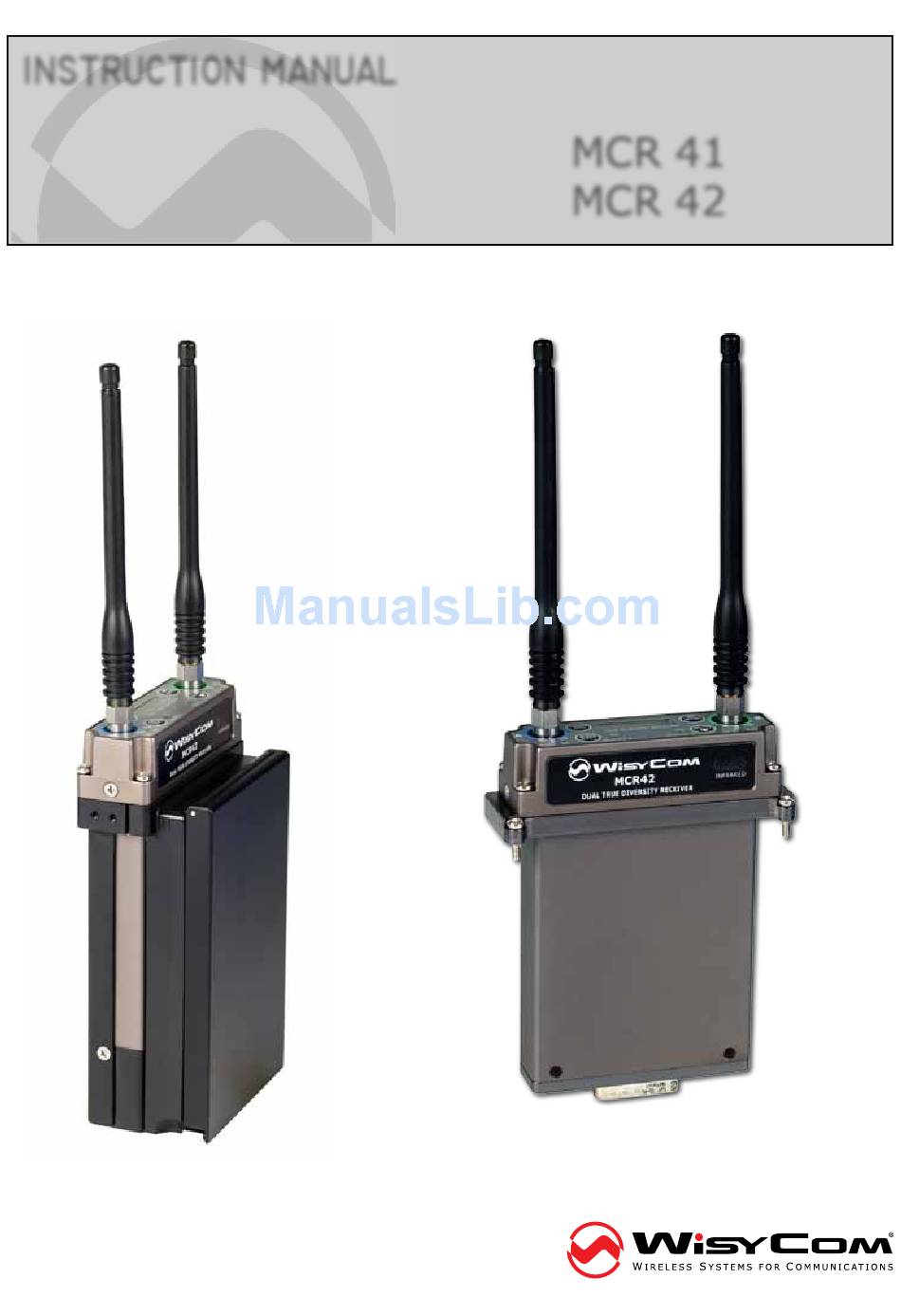

INSTRUCTION MANUAL
DUAL TRUE DIVERSITY WIRELESS CAMERA RECEIVER
MCR41/MCR42
s.n.:
__________________
FW rev: __________________
Options: __________________
STAND ALONE AND SLOT IN EXECUTIONS
MCR 41
MCR 42
