MCR41/MCR42 User Manual
NOTE: As per Wisycom standard, group 00 and group 01 or 09 are special; respectively the "center
frequency" (474,482/... MHz) and the intergap frequency (i.e. 470/478/486/... MHz). A scan on
group 00 will reveal in few seconds the overall DVB-T occupation on the area, while a scan on group
0 or 09 will give possible working frequency, usable also in presence of strong DVB-T signal (sort to
speak working in the band-guard of 2 digital television channel).

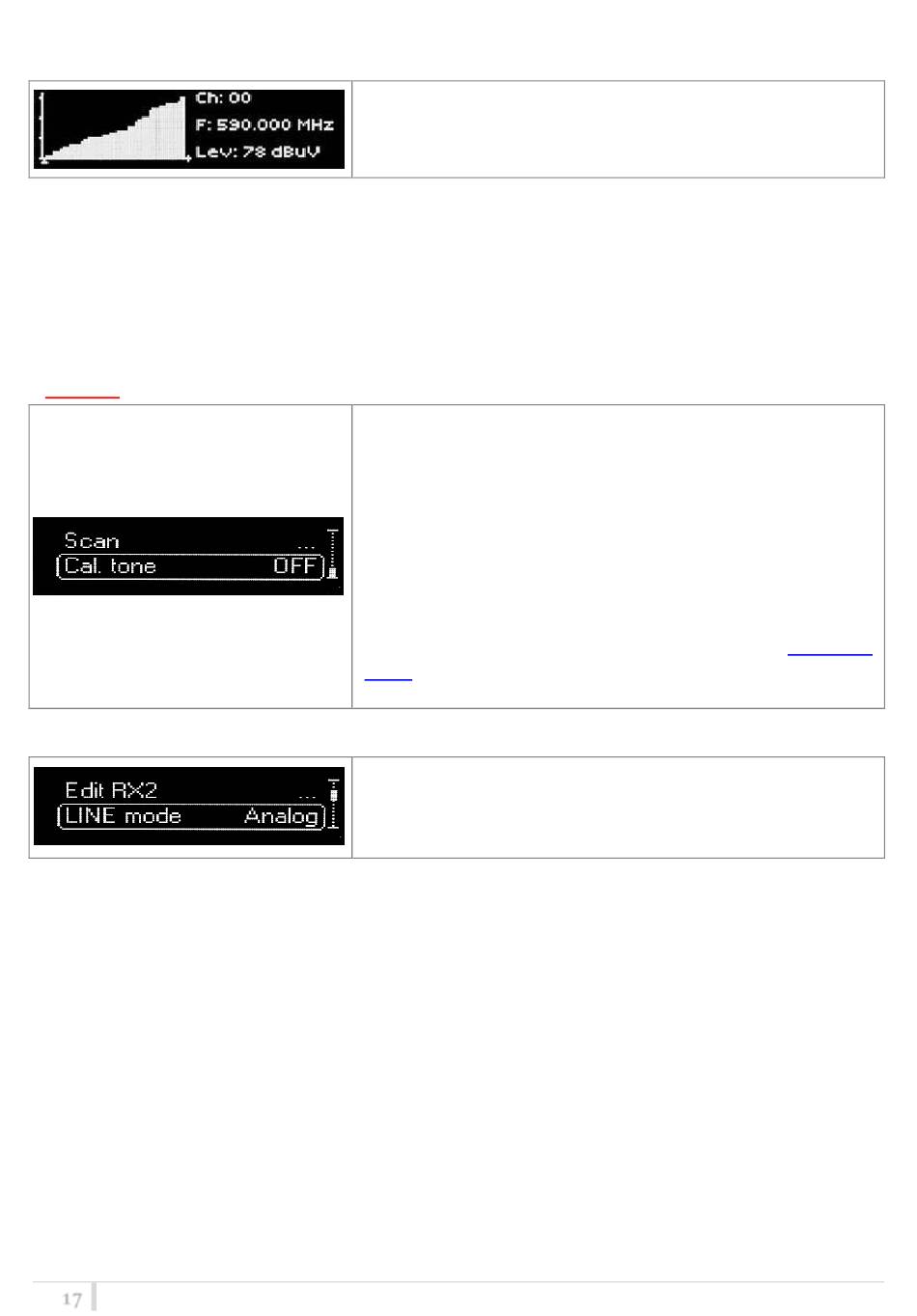

Edit RX: Cal. tone

LINE mode:

17
Results can be also displayed sorted by level (pushing
together SYNC and SCAN buttons), making easier to pick up
the best one.
If Cal. tone is enabled, a calibration tone is transmitted from
the outputs of the receiver and the audio LED of the relative
RX become blue (to turn off the calibration tone, go on the
menu Advanced > RX and press EXIT)
It's possible to select the audio level between -18dB and
dB.
The calibration tone at 0dB it's used to generate a tone at
1KHz at the maximum output level (depending on the
MIC/LINE max level or COM max level set in the
menu). It represent the reference of the peak deviation
(56KHz).
In LINE mode is settable the type of output between analog
and AES3 (digital).
NOTE: When LINE mode is set to AES3 the digital output
(Rx1+Rx2 in digital) is available on Rx1 output.
