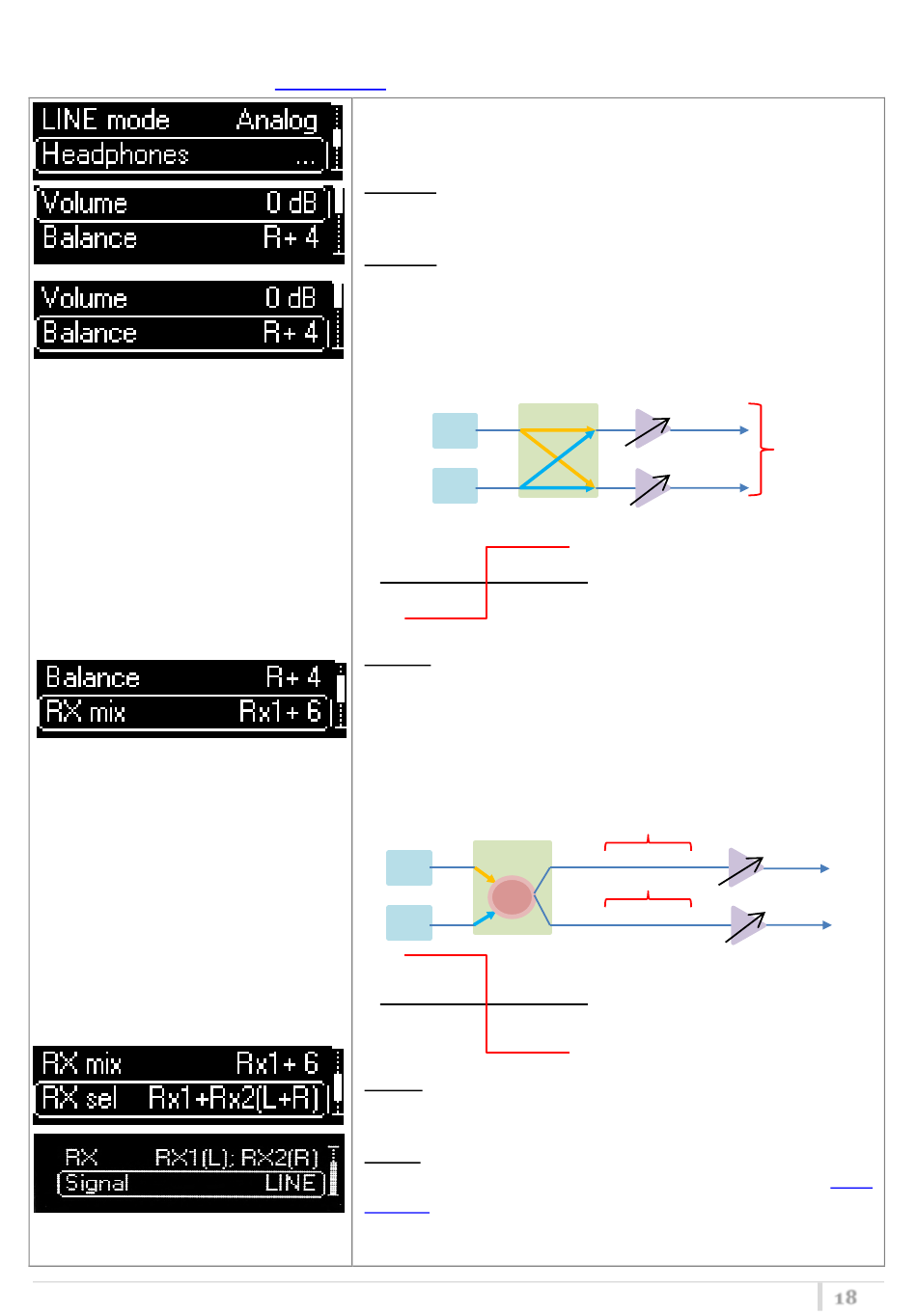

Headphones
(only for BPA42-HPN)
Cycle through menu's with up/down arrow to get your
desired configuration then confirm with SEL.
Volume: It is possible to set the desired output level from
Max (+6 dB) to min (-24 dB) in 1 dB step.
Balance: with this parameter it's possible to balance the
delta of the volume between Left and Right on the
headphones (it's possible to set up to 12dB between L/R).
For example: if volume is set to 0dB and Balance to R+4, in
the HP output, L will be -2dB and R will be 2dB.
Example: if Volume= 0dB & Balance= R+4
RX1
RX2
2dB
R
L
-2dB
RX mix: if the parameter RX sel is set to Rx1+Rx2(L+R), it's
possible to balance the delta of the volume between RX1
and RX2 (it's possible to set up to 12dB between RX1/RX2).
For example: if volume is set to 0dB, Rx signal to
Rx1+Rx2(L+R) and RX mix to Rx1+6, in the HP output, RX1
will be at 3dB and RX2 will be at -3dB.
Example: if Volume=0dB, RX sel= Rx1+Rx2(L+R) & RX mix= Rx1+6
DSP
RX1
+
RX2
3dB
RX1
RX2
-3dB
RX sel: Left and right channel of stereo jack can be mapped
respectively on RX1, RX2 or on RX1+RX2.
Signal: If set to LINE, on the headphones there is the same
signal of the output LINE. If set to TSQ>LINE and the
Squelch is enable (Tone Squelch ON or ADV), on the
headphones it is possible to hear the signal even when the
Tone Squelch is not detected.
