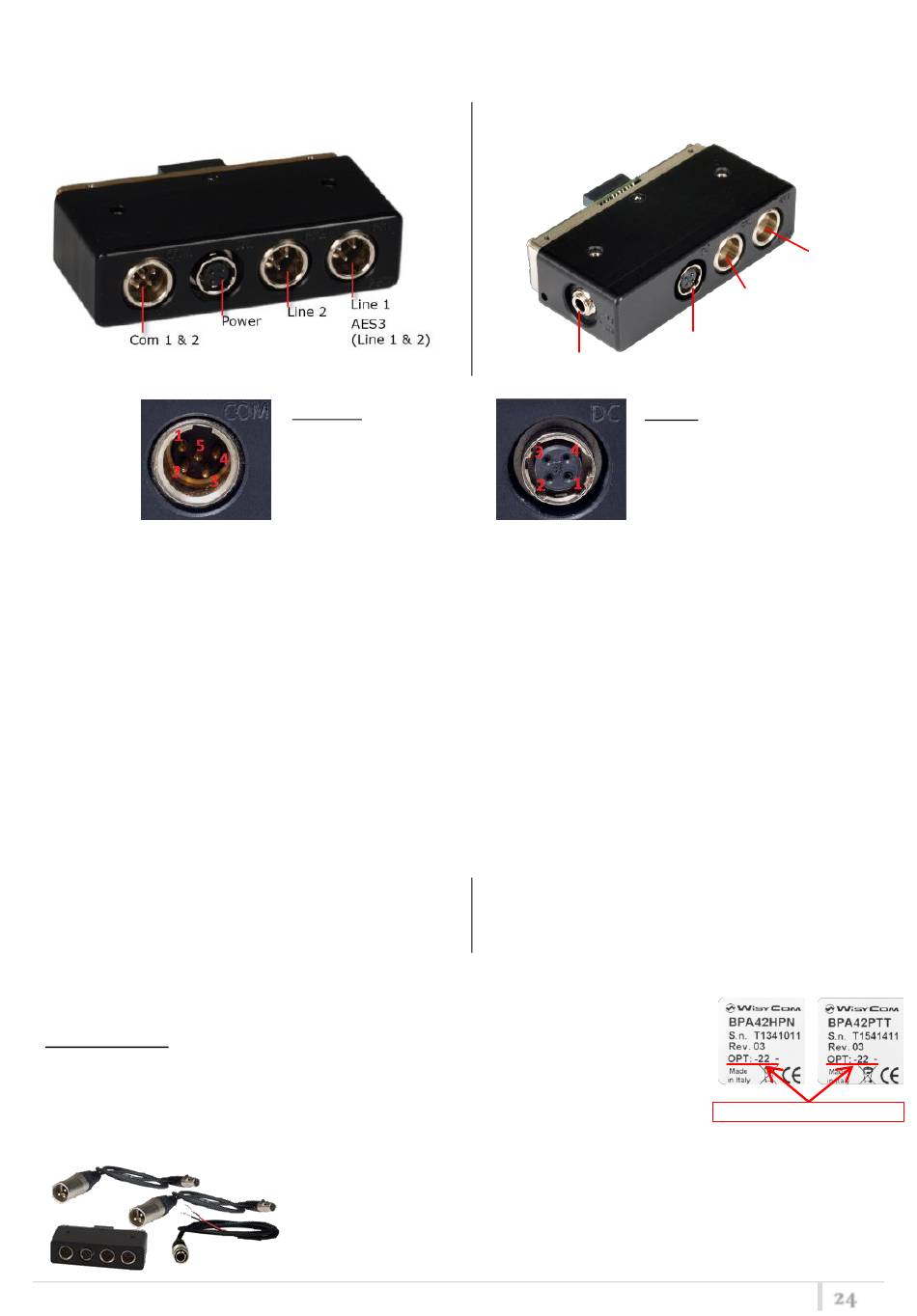

The standalone socket BPA42-PTT, BPA42-HPN and BPA42BAG supply the following connections.
BPA42-PTT: Stand alone socket
Analogue Audio Output (Line 1 & 2)
• Audio line-output 1 & 2 : electronically balanced on two 3 pin mini-XLR Female connector
• Audio line-output level : Adjustable in a one dB step between -30/-18dBu (depending on the
Hardware version) and +6 dBu (nominal) and MAX +12 dBu (peak deviation)
• Audio line-output imped. : ≤ 200 ohm.
Digital Audio Output AES3
• Digital line-output 1 & 2 : electronically balanced on 3 pin mini-XLR Male connector
• Digital line-output : AES3 @ 48 kHz
DC power supply (connector Hirose HR10A-F)
• pin 1 = ground
• pin 4 = +Vdc
Push to Talk (PTT) Audio Output (Com)
• PTT line-output 1 & 2 : electronically balanced
on a 5 pin mini-XLR Male connector
With the standalone socket BPA42-PTT and BPA42-HPN is available the option
OP-BPA42-R22 to have an attenuation of -22dB in Line 1 and Line 2 outputs.
NOTE: With this option, it's not possible to use the AES3 output in the
standalone socket and it's not guaranteed the correct functionality of the AES3
output in the top feed.
COM pin: 1) GND
2) COM1+
3) COM1-
4) COM2+
5) COM2-
BPA42-K
"Stand-alone" KIT for MCR42
BPA42PTT + 2 x CAM 50-2 + CDC34
MCR41/MCR42 User Manual
BPA42-HPN: Stand alone socket
Headphone
DC pin: 4) +Vdc
Headphone output
• output on stereo 3.5 mm headphone
adapter (with locking)
Line 1
AES3
(Line 1 & 2)
Line 2
Power
1) GND
Option indicated in the label
