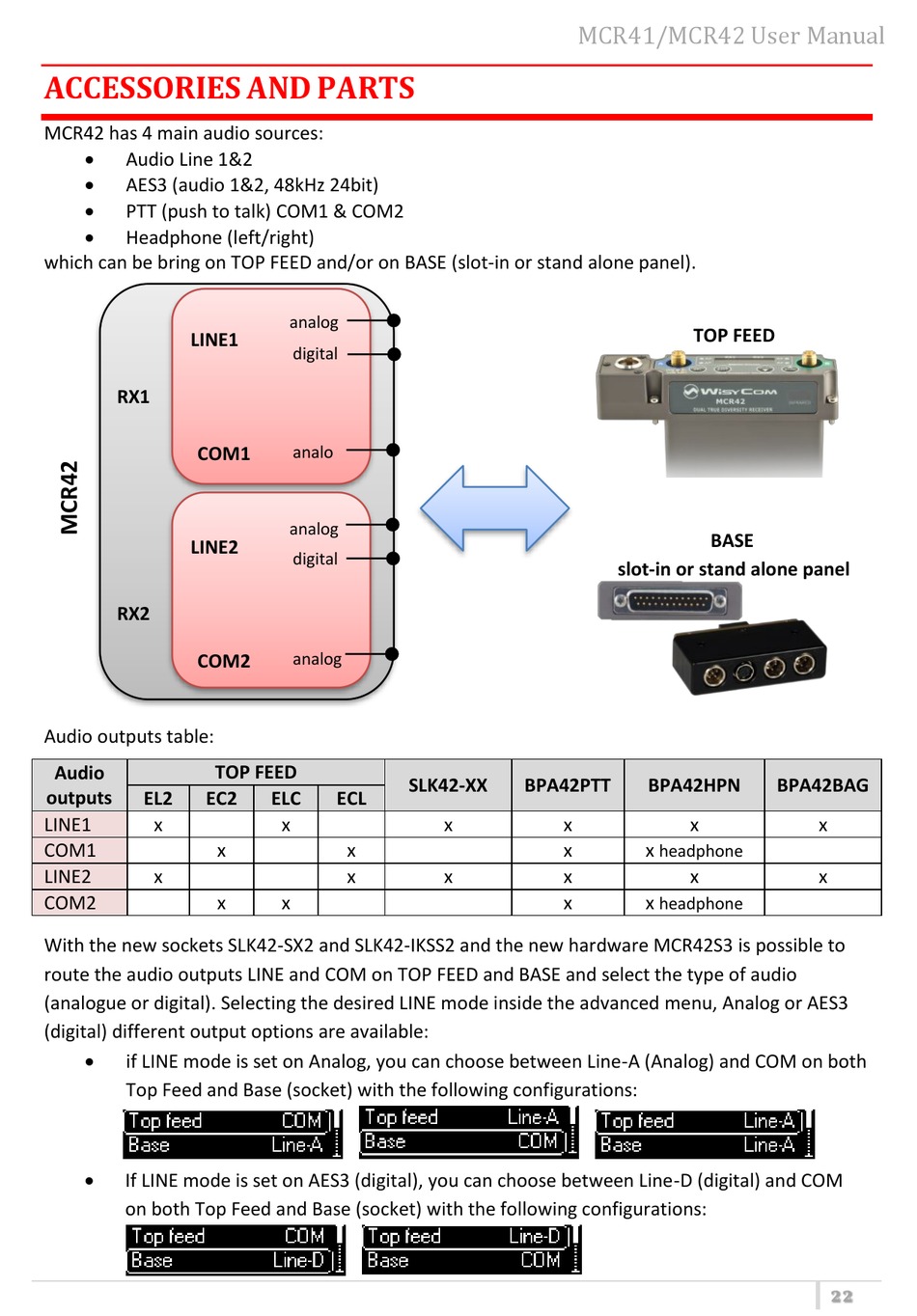

ACCESSORIES AND PARTS

MCR42 has 4 main audio sources:

Audio Line 1&2

AES3 (audio 1&2, 48kHz 24bit)

PTT (push to talk) COM1 & COM2

Headphone (left/right)
which can be bring on TOP FEED and/or on BASE (slot-in or stand alone panel).
LINE1
RX1
COM1
LINE2
RX2
COM2
Audio outputs table:
TOP FEED
Audio
outputs EL2 EC2
LINE1 x
COM1
LINE2 x
COM2
With the new sockets SLK42-SX2 and SLK42-IKSS2 and the new hardware MCR42S3 is possible to
route the audio outputs LINE and COM on TOP FEED and BASE and select the type of audio
(analogue or digital). Selecting the desired LINE mode inside the advanced menu, Analog or AES3
(digital) different output options are available:

if LINE mode is set on Analog, you can choose between Line-A (Analog) and COM on both
Top Feed and Base (socket) with the following configurations:

If LINE mode is set on AES3 (digital), you can choose between Line-D (digital) and COM
on both Top Feed and Base (socket) with the following configurations:
analog
digital
analo
g
analog
digital
analog
ELC ECL
x
x x
x
x x
MCR41/MCR42 User Manual
SLK42-XX BPA42PTT
x x
x
x x
x
TOP FEED
BASE
slot-in or stand alone panel
BPA42HPN BPA42BAG
x
x
headphone
x
x
headphone
x
x
