NEW DISPLAY

Front Panel

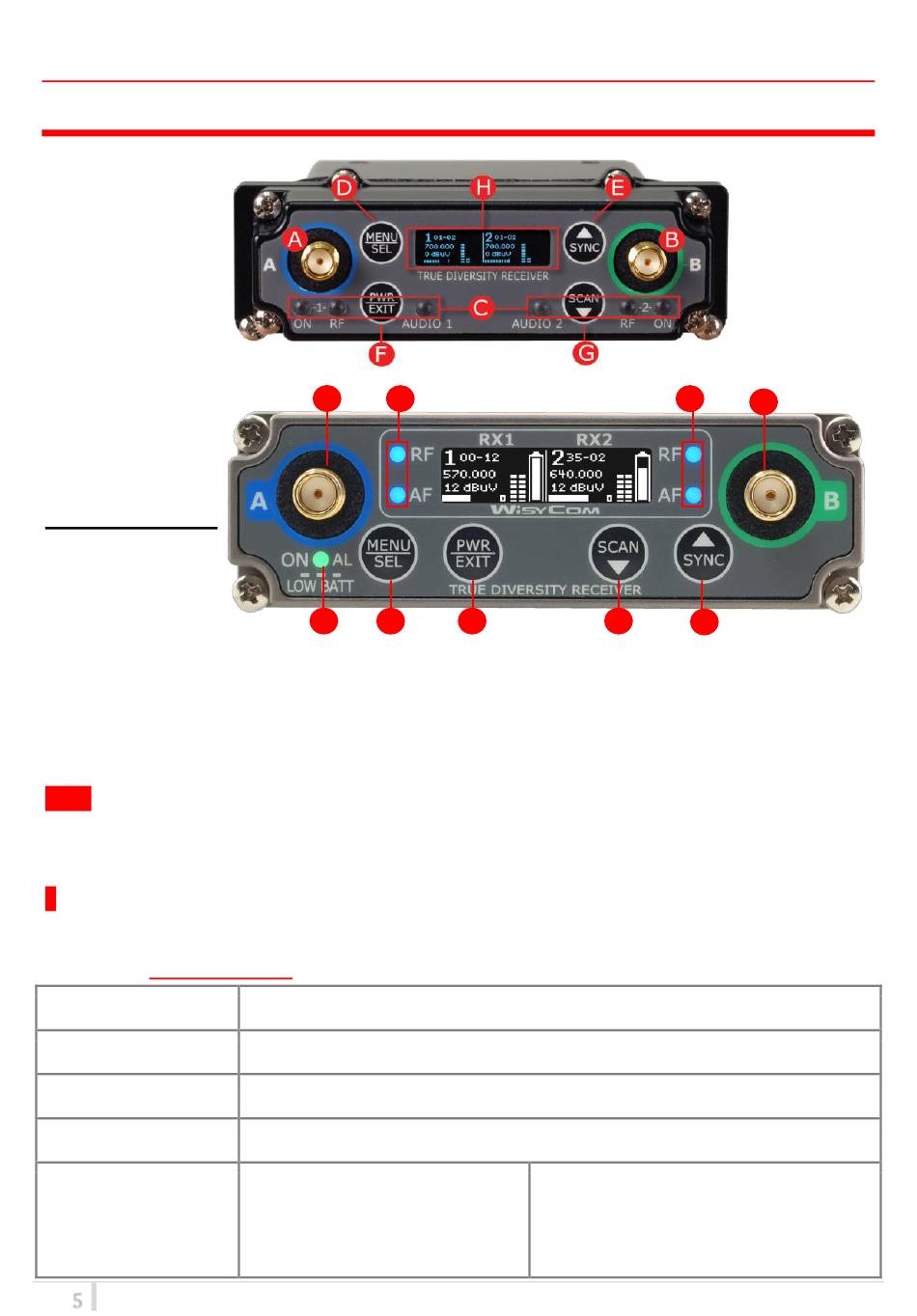

MCR42 allows an easy and quick configuration using buttons, RGB LED's and an OLED display. The
front panel is functionally divided in the following section:
A & B SMA antenna Connector:
MCR42 is supplied with a couple of antenna tuned on 400 MHz bandwidth suitable to be used with
MCR42-N, MCR42-M, MCR42-L, MCR42-H version.
C RGB Leds: Each of the 2 receivers has a dedicated set of LED's to give a clear indication of its
status.
"ON LED" (on NEW display)
GREEN
PALE GREEN
GREEN BLINKING
PALE GREEN BLINKING
RED BLINKING
5
A C
C
D
The receiver is on with an external power supply
The receiver is on with battery
The external power is low
The power of the battery is low
Relative transmitter battery is
low:
- slowly blinking if 25% lifetime
- quickly blinking if 12% lifetime
G
F
When the "ON LED" become red blinking,
the display, if it is off, it automatically turns
on and remains on until the alarm does not
fall.
C
B
E
