WisyCom MCR42 Quick Start Manual

HIGH PERFORMANCE DUAL TRUE DIVERSITY RECEIVER - DIGITAL AUDIO DSP BASED

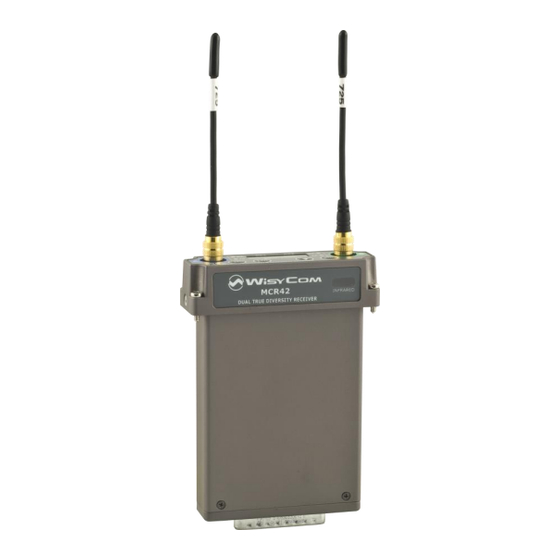

MCR42 is a camera dual true diversity wireless-microphone receiver system in a modular stand-alone or slot-in
configuration (compatible with most camera's slot).

 camera "slot-in" receiver (for Ikegamy, Philips, Sony cameras)
camera "stand-alone" very small dual true-diversity receiver,
powered by 5 ÷ 18 Vdc external source
All audio processing is managed by a powerful DSP to allow multicompanding, audio enhancement and a digital
control data.
Very easy and versatile thanks to its:
Oled display,
navigation button controls,
infrared sinc and programming,
automatic scan.
MCR42
Up to 240 MHz bandwidth in 470/798 MHz range
Modular stand-alone or slot-in format
40 groups of 60 frequencies fully user programmable
Broadcast superlative quality of any audio-signal transposition
DSP fully digital audio processing for broadcast superlative quality
and multicompander compatibility
Infrared interface for programming and transmitter synchronization
Easy setup and operation thru a OLED display
Wisycom exclusive digital sub-carrier telemetry technology
allows:
remote TX battery monitoring
advanced tone-squelch operating
PTT function (An optional back-panel module is available, with the
secondary intercom output)
Exceptional sturdiness and absolute reliability even in very congested
environments
Amazing small size
Very easy and pleasant use with easy status indication by means of
RGB LEDs

GENERAL DESCRIPTION

Wisycom Srl Unipersonale - Via Spin, 156 - I-36060 Romano d'Ezzelino (VI) - Italy
tel. +39 0424 382605 fax. +39 0424 382733 http:// www.wisycom.com - e-mail: sales@wisycom.com
Iscrizione al Registro A.E.E. n. IT09100000006319
WIDEBAND DUAL TRUE DIVERSITY ENG RECEIVER

Main Features

Wider Oled Display!

Optimized button layout!

Simplified software!

