WisyCom MCR54 Quick User Manual

MAIN ACCESSORIES
(for an updated and exhaustive list visit www.wisycom.com)
SL54-IK:
"Slot-in" compatible with
Sound Device SuperSlot, MRK16 Multi Slot
rack,Unislot (Ikegami, Panasonic cameras)
BPA54
: "Stand alone" rear panel
(2 mini XLR-5pin male outputs + 1 Hirose
for power
CDC34:
External power feeding cable,
hirose 4pin Male/raw wires (50 cm)
SL54-SX:
"Slot-in" kit for Sony camera
EU DECLARATION OF CONFORMITY
Manufacturer's Name: WISYCOM S.r.l.
Manufacturer's Address: via Tiepolo , 7/E- 35019 Tombolo (PD) - Italy
declare under our sole responsibility that the product

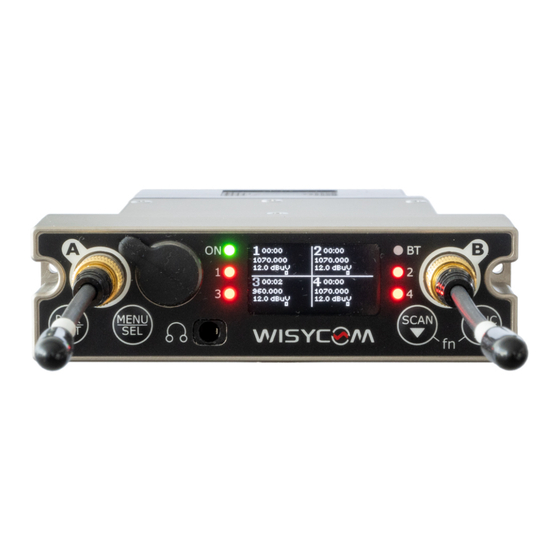

Model MCR54
Description Wireless ENG receiver
conforms to the essential requirements of the RADIO Directive 2014/53/EU
– Radio Equipment Directive (RED):
EN 300 422-1 v2.1.2
EN 301 489-1 v1.9.2
EN 301 489-9 v1.4.1
EN 62368-1 2014
EN 50581 2012
USA and CANADA
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions:
1 - This device may not cause harmful interference, and
2 - This device must accept any interference received, including interfer-
ence that may cause undesired operation.
In compliance with:
USA 47 CFR 15 Subpart B
CAN RSS-Gen/CNR-Gen
MCR54
QUICK USER GUIDE
CAM50-3:
AF cable (50 cm),mini XLR-5F
/ 2 XLR-3M connectors
CAM50-41:
AF cable (50 cm),
mini XLR-5F / 1 XLR-3M connector (Line 1)
CAUSBC1:
USB Cable 1m
USB B - USB C Male Black
BCA54:
Stand Alone with lithim battery
pack RRC2040 33.2Whr
- 2 mini XLR-5pin male audio outputs
- 1 Hirose connector for external power
Serial Number:
This guide is intended to assist you with initial quick setup and
operation for your Wisycom product.
You can refer to Wisycom Autorized Distributors for technical Sup-
port and information about service and repairs available in your
area or contact us directly by email.
WISYCOM ITALY
Via Tiepolo 7/E
35019 Tombolo (PD) - ITALY
+39 0424 382605
support@wisycom.com
sales@wisycom.com
Download Documentation and Firmware
Get latest user manual, tips, specifications,
firmware & software on the download page:
wisycom.com/products/d/MCR54
Product Registration and Warranty
Register your product to extend your warranty
and receive update on latest firmware:
wisycom.com/registration
Keep up with Wisycom online
Follow us on Facebook and Instagram. You
can also subscribe on Youtube for more.
wisycom.com/social
MCR54
QUICK USER GUIDE
Purchase Date:
WISYCOM USA
5228 Eisenhower Avenue
Alexandria, VA 22304 - USA
+1 (888) WISYCOM
+1 (888) 947-9266
support@wisycomusa.com
sales@wisycomusa.com
