Figure 3-2. Install The Unit Into A Rack Enclosure - Comtech EF Data DT-4500 Series Installation And Operation Manual

DT-4500 Series C- and Ku-Band Down Converters
Installation and Startup
Feature Description
1 Custom Rack Enclosure
2 DT-45XX chassis
3 Standard Rack Shelving
4 Rack Enclosure Threaded Front Rail (typical)
5 Unit Front Panel
6 User-supplied Screws

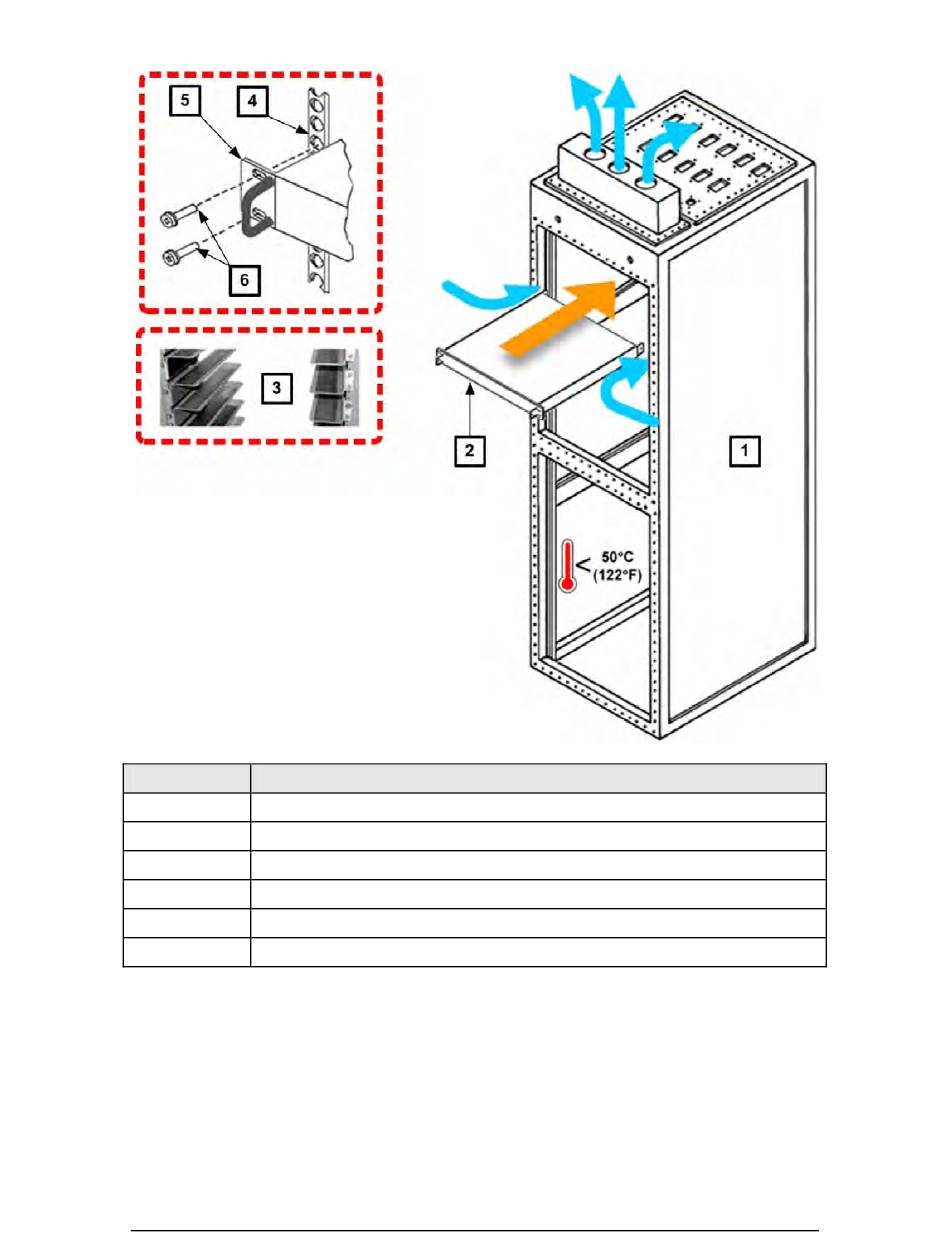

Figure 3-2. Install the Unit into a Rack Enclosure

3–4
MN/DT4500.IOM
Revision 2
