Removable "Personality" Modules

Contact Comtech EF Data Product Support for complete details and
specifications for the module(s) specific to your system.
See Chapter 2. SPECIFICATIONS for the listings of available modules for
use with the DT-4500 Series Down Converters and UT-4500 Series Up
Converters.

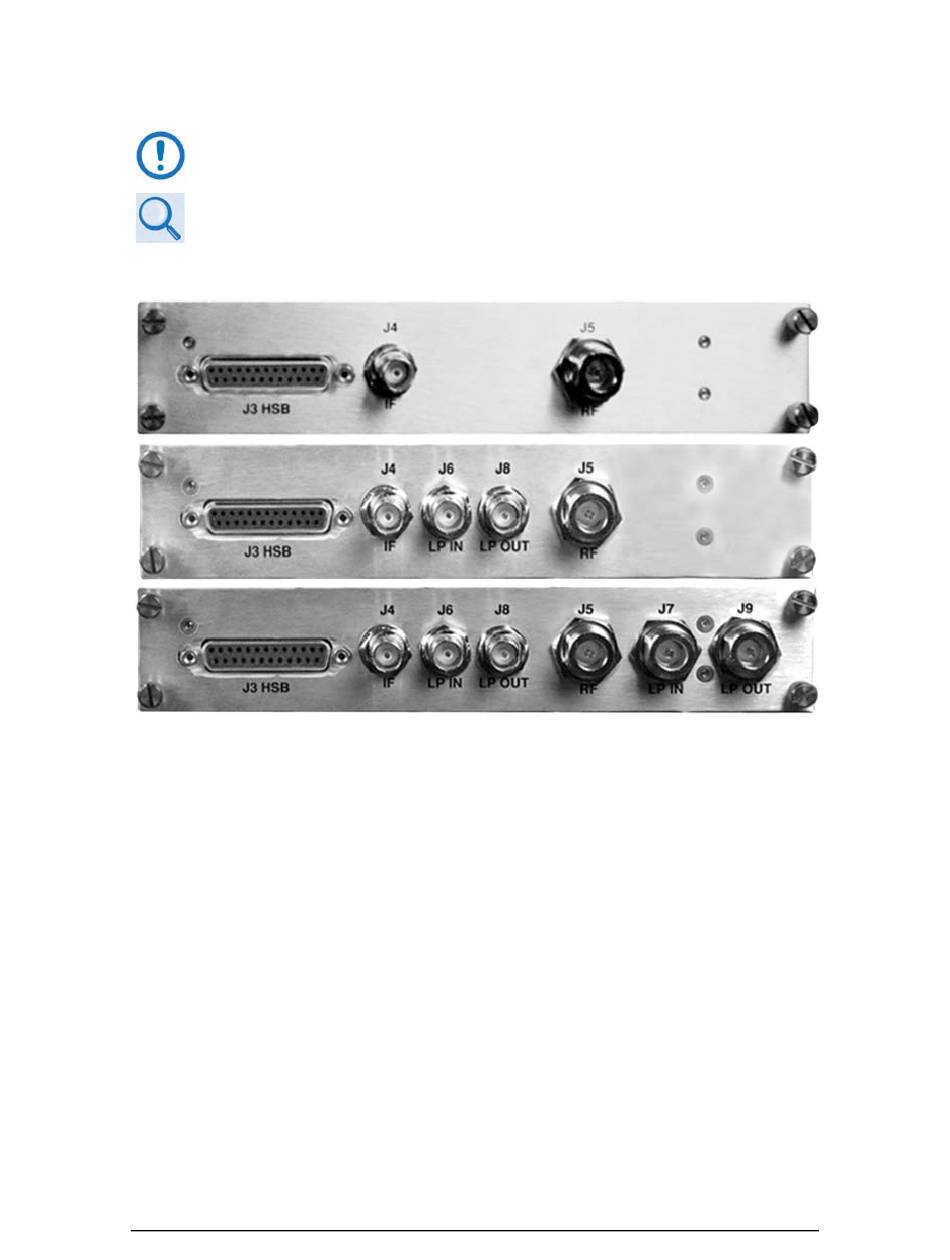

Figure 4-16. "Personality" Module Examples

Depending on the application, the converter chassis rear panel module slot
accepts an Input/Output Module (IOM), Polarity Switch Module (PSM), Transmit
Switch Module (TSM), Equalizer Module (EQM), or Receive Switch Module (RSM).
The converter RF, IF, and High-Speed Bus (HSB) connectors are integral to the
installed module.
Removable modules are available for both non-redundant (also referred to as
single thread or standalone) and redundant applications.
(TOP) Input/Output Switch Module (IOM)
(CENTER) Receive Switch Module (RSM)
(BOTTOM) Transmit Switch Module (TSM)
