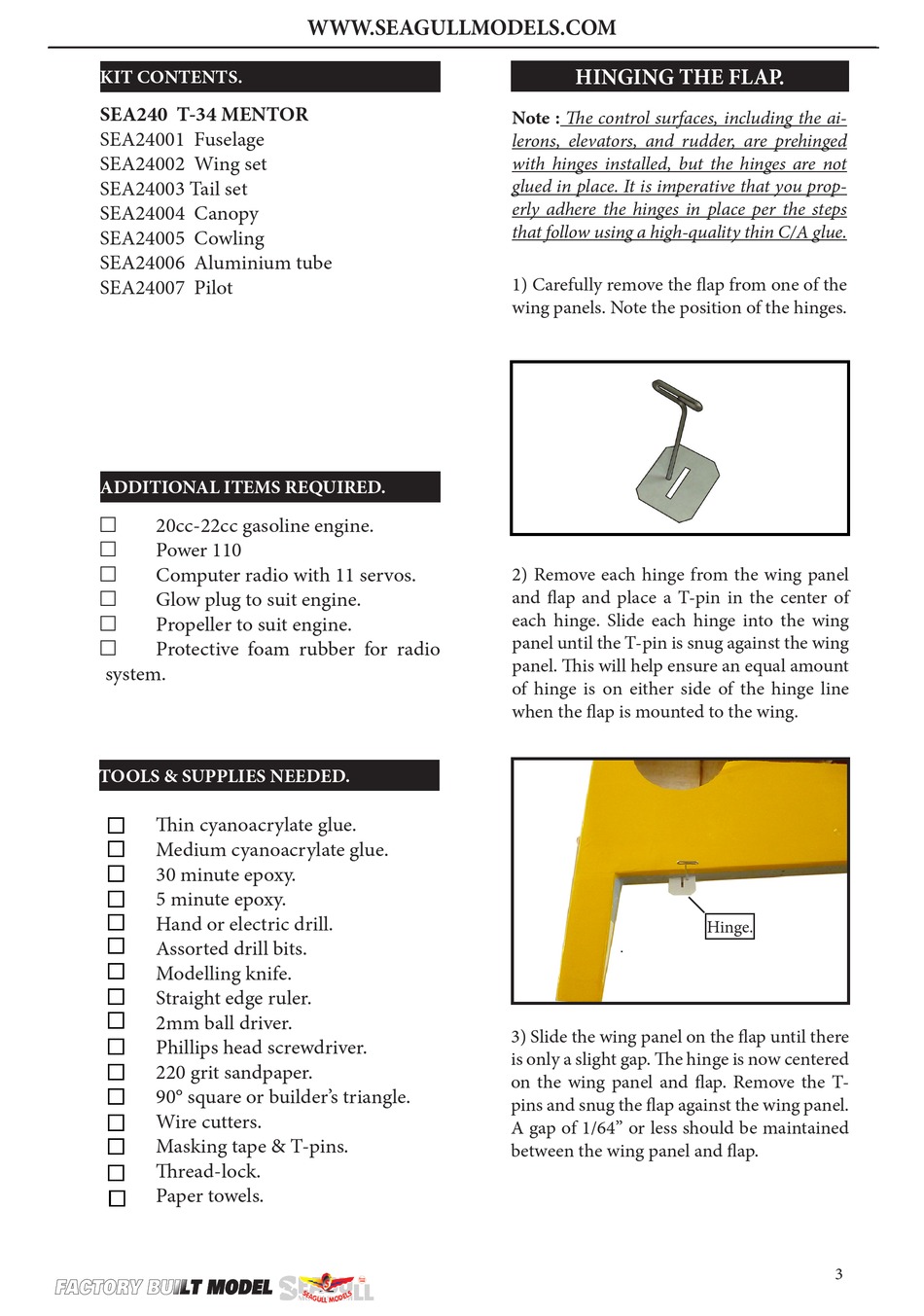

Additional Items Required; Tools And Supplies Needed - Seagull Models T-34C MENTOR Assembly Manual

KIT CONTENTS.
SEA240 T-34 MENTOR
SEA24001 Fuselage
SEA24002 Wing set
SEA24003 Tail set
SEA24004 Canopy
SEA24005 Cowling
SEA24006 Aluminium tube
SEA24007 Pilot

ADDITIONAL ITEMS REQUIRED.

20cc-22cc gasoline engine.
�
Power 110
�
Computer radio with 11 servos.
�
Glow plug to suit engine.
�
Propeller to suit engine.
�
Protective foam rubber for radio
�
system.
TOOLS & SUPPLIES NEEDED.
Thin cyanoacrylate glue.
Medium cyanoacrylate glue.
30 minute epoxy.
5 minute epoxy.
Hand or electric drill.
Assorted drill bits.
Modelling knife.
Straight edge ruler.
2mm ball driver.
Phillips head screwdriver.
220 grit sandpaper.
90° square or builder's triangle.
Wire cutters.
Masking tape & T-pins.
Thread-lock.
Paper towels.
WWW.SEAGULLMODELS.COM
HINGING THE FLAP.
Note : The control surfaces, including the ai-
lerons, elevators, and rudder, are prehinged
with hinges installed, but the hinges are not
glued in place. It is imperative that you prop-
erly adhere the hinges in place per the steps
that follow using a high-quality thin C/A glue.
1) Carefully remove the flap from one of the
wing panels. Note the position of the hinges.
2) Remove each hinge from the wing panel
and flap and place a T-pin in the center of
each hinge. Slide each hinge into the wing
panel until the T-pin is snug against the wing
panel. This will help ensure an equal amount
of hinge is on either side of the hinge line
when the flap is mounted to the wing.
.
3) Slide the wing panel on the flap until there
is only a slight gap. The hinge is now centered
on the wing panel and flap. Remove the T-
pins and snug the flap against the wing panel.
A gap of 1/64" or less should be maintained
between the wing panel and flap.
Hinge.
3
