VisualDSP++ Install and Session Startup


To disconnect from the target board, click the terminate button
(red box) or choose Run > Terminate.
To delete a session, choose Target > Session > Session List. Select
the session name from the list and click Delete. Click OK.

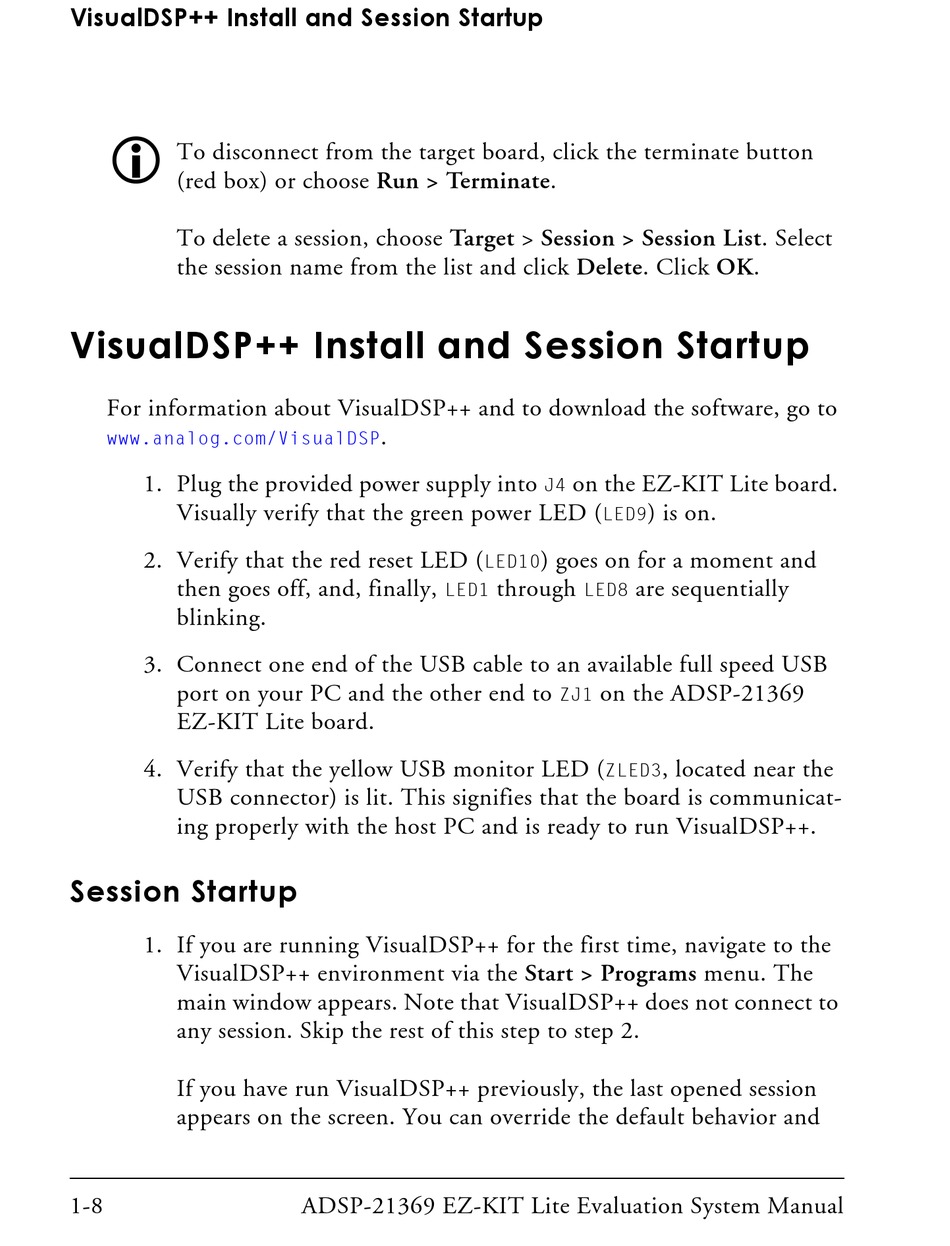

VisualDSP++ Install and Session Startup
For information about VisualDSP++ and to download the software, go to
www.analog.com/VisualDSP
1. Plug the provided power supply into
Visually verify that the green power LED (
2. Verify that the red reset LED (
then goes off, and, finally,
blinking.
3. Connect one end of the USB cable to an available full speed USB
port on your PC and the other end to
EZ-KIT Lite board.
4. Verify that the yellow USB monitor LED (
USB connector) is lit. This signifies that the board is communicat-
ing properly with the host PC and is ready to run VisualDSP++.

Session Startup

1. If you are running VisualDSP++ for the first time, navigate to the
VisualDSP++ environment via the Start > Programs menu. The
main window appears. Note that VisualDSP++ does not connect to
any session. Skip the rest of this step to step 2.
If you have run VisualDSP++ previously, the last opened session
appears on the screen. You can override the default behavior and
1-8
.
LED1
ADSP-21369 EZ-KIT Lite Evaluation System Manual
on the EZ-KIT Lite board.
J4
) is on.
LED9
) goes on for a moment and
LED10
through are sequentially
LED8
on the ADSP-21369
ZJ1
, located near the
ZLED3
