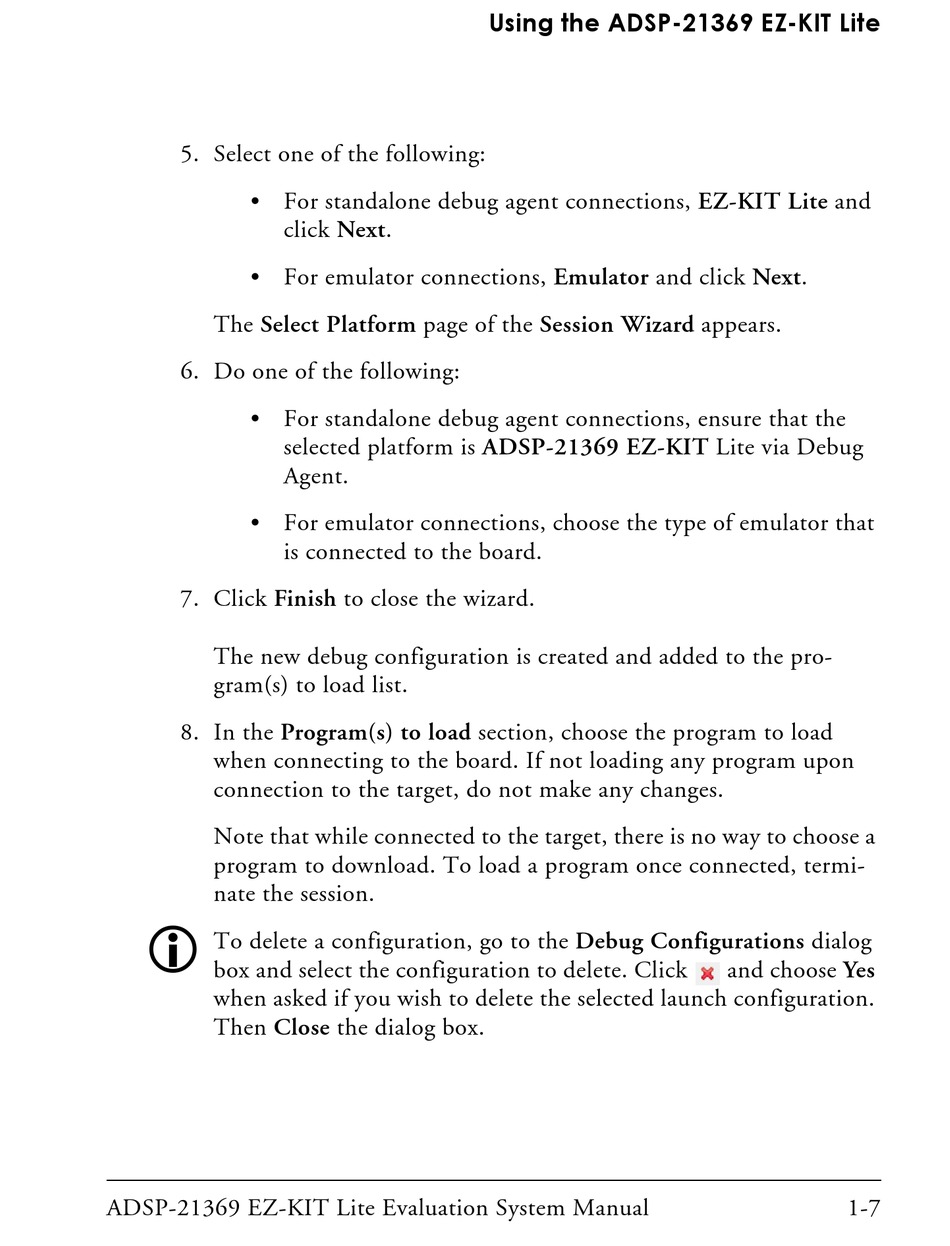

Analog Devices ADSP-21369 EZ-KIT Lite Manual page 27

5. Select one of the following:
• For standalone debug agent connections, EZ-KIT Lite and
click Next.
• For emulator connections, Emulator and click Next.
The Select Platform page of the Session Wizard appears.
6. Do one of the following:
• For standalone debug agent connections, ensure that the
selected platform is ADSP-21369 EZ-KIT Lite via Debug
Agent.
• For emulator connections, choose the type of emulator that
is connected to the board.
7. Click Finish to close the wizard.
The new debug configuration is created and added to the pro-
gram(s) to load list.
8. In the Program(s) to load section, choose the program to load
when connecting to the board. If not loading any program upon
connection to the target, do not make any changes.
Note that while connected to the target, there is no way to choose a
program to download. To load a program once connected, termi-
nate the session.

To delete a configuration, go to the Debug Configurations dialog
box and select the configuration to delete. Click
when asked if you wish to delete the selected launch configuration.
Then Close the dialog box.
ADSP-21369 EZ-KIT Lite Evaluation System Manual
Using the ADSP-21369 EZ-KIT Lite
and choose Yes
1-7
