Industrial Electronic Devices
LEDS:

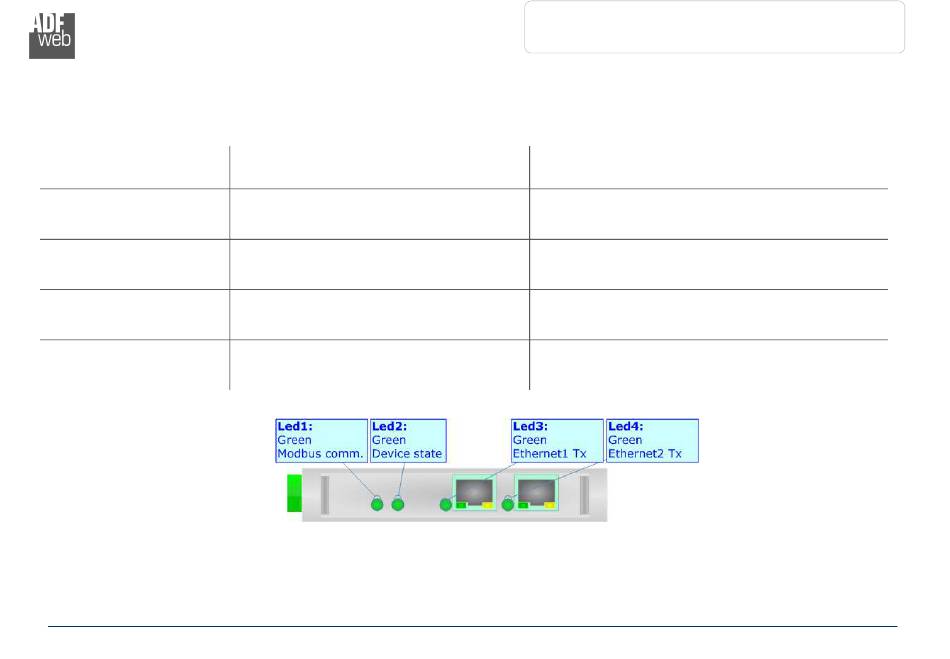

The devices has got four LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED
1: Modbus comm. (green)
2: Device state (green)
3: Ethernet1 Tx (green)
4: Ethernet2 Tx (green)
ADFweb.com S.r.l.
Normal Mode
Blinks when a Modbus response is received
Blinks slowly (~1Hz)
Blinks quickly for a short time when sends
Ethernet frames
Blinks quickly for a short time when sends
Ethernet frames
User Manual Modbus TCP Slave / Modbus Master
Document code: MN67508_ENG
Boot Mode
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Revision 1.100
Page 11 of 28
