User Manual Modbus TCP Slave / Modbus Master
Document code: MN67508_ENG
Revision 1.100
Page 14 of 28
Industrial Electronic Devices

RS422:

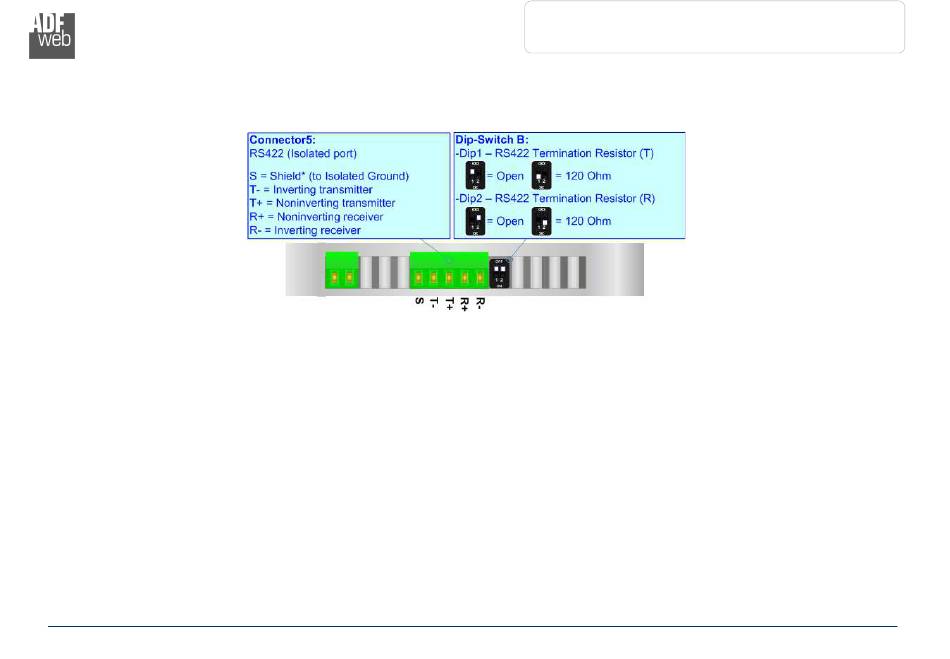

For terminate the RS422 line with a 120Ω resistor it is necessary to put ON dip 1 for T line and/or put ON dip 2 for R line, like in figure.
The maximum length of the cable should be 1200m (4000 feet).
