Control Board

UP
DOWN

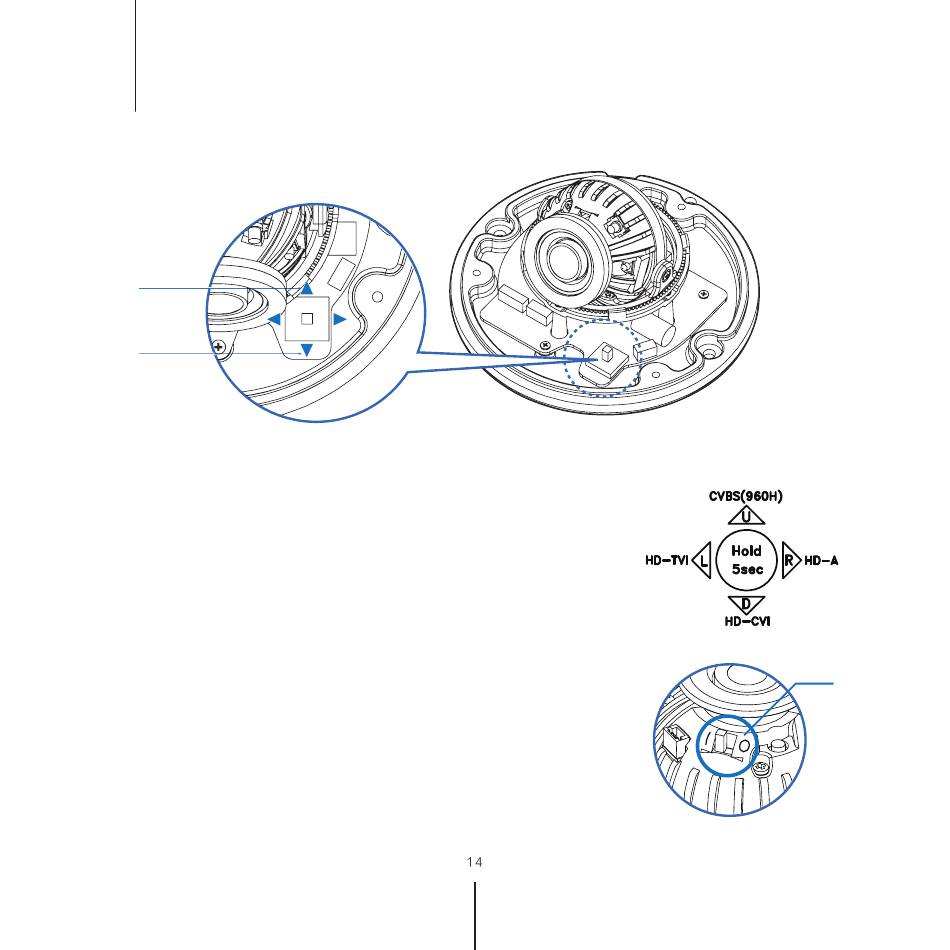

- OSD Joystick : The function setting and video output can be adjusted with OSD joystick. (default : HD-A)
Image Mode
Switches to HD-TVI mode when press OSD Joystick to left 5sec or longer.
Switches to HD-A mode when press OSD Joystick to right 5sec or longer.
Switches to CVBS mode when press OSD Joystick to up 5sec or longer.
Switches to HD-CVI mode when press OSD Joystick to down 5sec or longer.
- IR LED Switch : The camera has a manual IR switch, located under the camera's
lens. You can use this switch to manually turn the IR LED board
on or off according to the installation needs.
ON/OFF
