Control Board

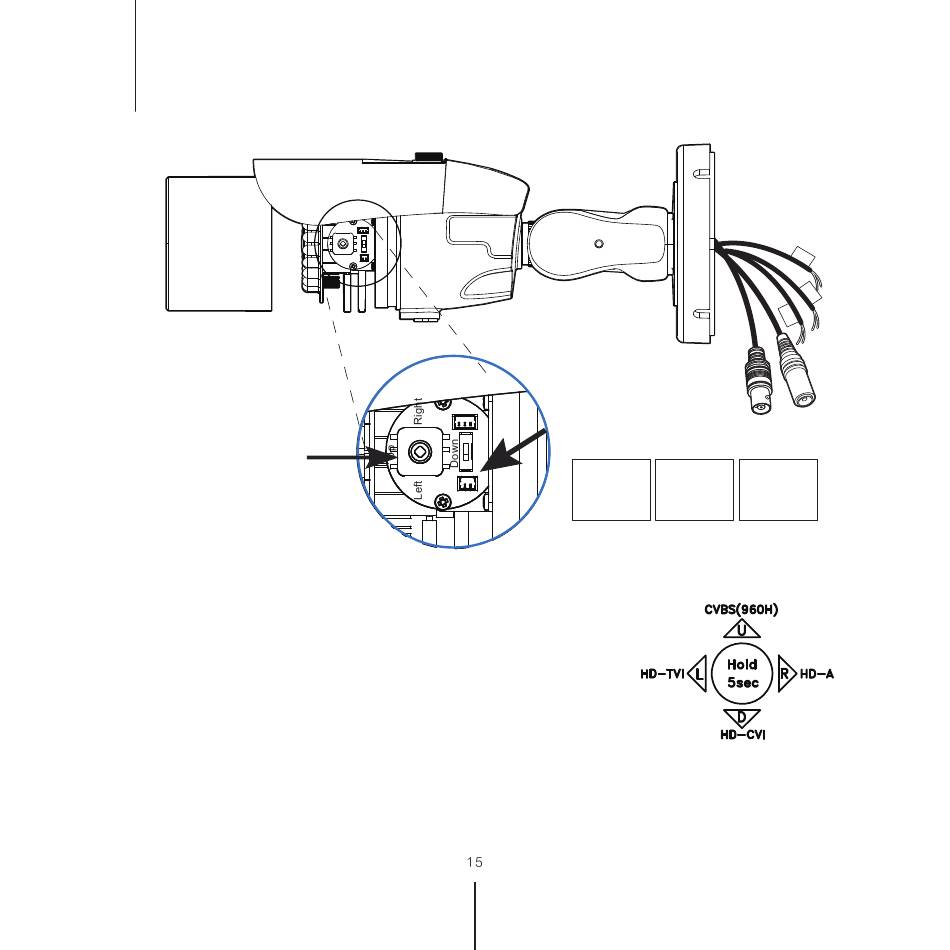

Joystick:
Controls the OSD menu.
- OSD Joystick : The function setting and video output can be adjusted with OSD joystick. (default : HD-A)
Image Mode
Switches to HD-TVI mode when press OSD Joystick to left 5sec or longer.
Switches to HD-A mode when press OSD Joystick to right 5sec or longer.
Switches to CVBS mode when press OSD Joystick to up 5sec or longer.
Switches to HD-CVI mode when press OSD Joystick to down 5sec or longer.
- RS485 Connectors : Connect the camera to a controller or the DVR using RS485.
1) Black Cable : RS485 +
2) White Cable : RS485 -
- UTP Cable : Connect when using UTP video output mode.
Blue +, White -
- Alarm Output Cable : Cable to output Motion Detection signal.
Test Video Connector:
Video Output Connector for
On-Site Configuration
1. 2.
RS 485 UTP
BK D+ BLUE +
WH D- WHITE -
3
2
1
3.
ALARM
