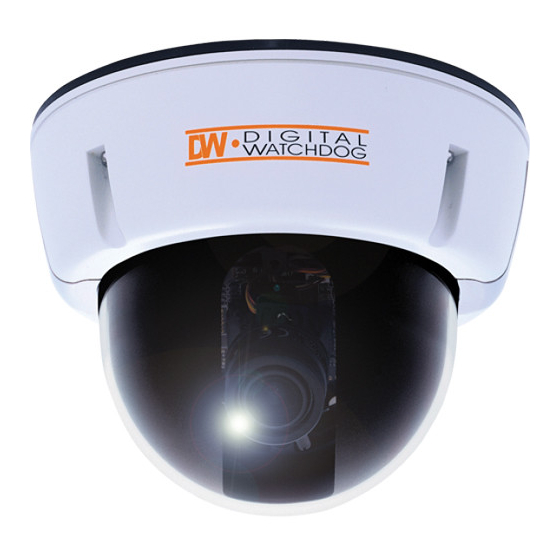

- Page 1 12X Zoom Vandal Dome Camera DWC-V1312XW Before installing and using the Digital Watchdog Camera, please read this manual carefully. Be sure to keep it handy for future reference.
-
Page 3: Table Of Contents
FEATURES PARTS DIMENSIONS IN MILLIMETERS INSIDE THE BOX CAMERA INSTALLATION INSTRUCTIONS JUNCTION BOX INSTALLATION INSTRUCTIONS WALL MOUNT INSTALLATION INSTRUCTIONS PENDANT MOUNT INSTALLATION INSTRUCTIONS CORNER MOUNT INSTALLATION INSTRUCTIONS CONNECTING TO MONITORS ADJUSTING THE 3-AXIS GIMBAL CONTROL BOARD OSD MENU AND GLOSSARY TROUBLESHOOTING WARRANTY INFORMATION LIMITS AND EXCLUSION... -
Page 4: Features
1/4” Sony EX-View HAD Double Scan CCD 600 TV Lines 3.6-44.3mm Varifocal Auto Iris Lens 12X Optical Zoom Electronic Day and Night with Color Removal Circuit WDR (Wide Dynamic Range) 3D-DNR (3D Digital Noise Reduction) Star-Light (Super Low Light Technology) DIS (Digital Image Stabilizer) Programmable Privacy Zones (12) &... -
Page 5: Parts
Lens Video Output Connector - BNC Power Input COnnector 12VDC/24VAC Dual Voltage RS485: BK(D+), WH(D-) Rubber Band Black Dome Insert Bubble Dome Upper Case Assembly Screws T20 M4X16 NPT Plug Bottom Case Rubber Pad Mounting Screws... -
Page 6: Dimensions In Millimeters
DIMENSIONS IN MILLIMETERS* UNITS : MM... -
Page 7: Inside The Box
INSIDE THE BOX* The following items are included with the V1312XW camera. 1. User Manual 2. Mounting Template 3. Four (4) Screws and Four (4) Dry Wall Anchors 4. Second Video Output Connector 5. L-Wrench 6. Tool - 0.89mm 7. Tool - 1.5/2.0mm Required Tools (Not Included) Phillips Head Screwdriver... -
Page 8: Camera Installation Instructions
CAMERA INSTALLATION INSTRUCTIONS* 1. Pull wires through and make connections. 2. Adjust the camera’s pan, tilt, and zoom. Refer to page 13. Use mounting template to See page 14 for details. mount the camera with dry wall mounts and wood screws. 1. -
Page 9: Junction Box Installation Instructions
JUNCTION BOX INSTALLATION INSTRUCTIONS* 1. Check to see all parts are in 2. Use the dry wall anchors and 3. Insert wires through the wall the box. wood screws to mount the and make the appropriate junction box and rubber gasket connections. -
Page 10: Wall Mount Installation Instructions
WALL MOUNT INSTALLATION INSTRUCTIONS* 1. Check to see all parts are in 2. Insert the wires from the 3. Attach the camera to the wall the box. camera through the wall mount mount housing. housing. 4. Use the mounting template to 5. -
Page 11: Pendant Mount Installation Instructions
PENDANT MOUNT INSTALLATION INSTRUCTIONS* 1. Check to see all parts are in 2. Attach the top shield to the 3. Slide the wires from the camera the box. pendant mount. through the pendant mount. 4. Attach the camera to the 5. -
Page 12: Corner Mount Installation Instructions
CORNER MOUNT INSTALLATION INSTRUCTIONS* 1. Check to see all parts are in the box. 2. Attach the two compression fittings to the corner bracket. 3. Attach the wall mount bracket to the corner 4. Mount the camera assembly to the corner of the mount using the machine screws. -
Page 13: Connecting To Monitors
CONNECTING TO MONITORS* Follow the diagram below to make proper connections to the CRT Monitor or the Monitor. 12VDC / 24VDC CCTV Monitor Right Dow n Left 2nd Video Output Monitor 30cm Power Connection: Dual Voltage 12VDC/24VAC (Auto Polarity Detection and Protection) All cameras are equipped with a service monitor output, which is located on the camera module. -
Page 14: Adjusting The 3-Axis Gimbal
ADJUSTING THE 3-AXIS GIMBAL* The Gimbal Mechanism yields maximum rotation and placement as shown below: Rotation 360 Tilt 90 Z-Axis: Rotation 360 Y-Axis: Tilt 90 Pan 360 X-Axis: Pan 360... -
Page 15: Control Board
CONTROL BOARD* Control Board Functions 1. Joystick Controller: Control of On-Screen Display Menu 2. CON1: Second Video Output Connector 3. CON2: RS-485 Connector Joystick Controller RIGHT DOWN LEFT CON1 CON2... -
Page 16: Osd Menu And Glossary
OSD MENU AND GLOSSARY* MAIN MENU DESCRIPTION CAMERA SET Camera Related Functions and Data INTELLIGENCE Motion Detection, Etc. PRIVAC Y ZONE Privacy Related Settings PRESET SET Preset Position and Preset ID OTHER SET Configure for Factory Defaults, Etc. COMMUNICATION Communication Settings SYSTEM INFO Displays System Information LANGUAGE... - Page 17 REVERSE Horizontal/Vertical Reverse OFF / H / V / HV POSI/NEGA Positive or Negative Video Output - / + Picture In Picture at Digital Zoom Operation OFF / ON INTELLIGENCE DESCRIPTION OPTIONS MOTION Motion Detection OFF / TRACKING / DETECTION ADVANCED Advanced Motion Detection OFF / FIXED / MOVED...
-
Page 18: Troubleshooting
TROUBLESHOOTING Before sending your camera for repair, check the following or contact our technical specialist. No VIDEO Check the coaxial cable and make sure it is connected securely. Check the lens’ iris adjustment at the menu setup of the camera. Check the power supply and make sure the camera has the proper voltage and current. -
Page 21: Specifications
SPECIFICATIONS* DWC-V1312XW Device 1/4” SONY EX-View HAD PS CCD (ICX-448) Total 811 x 508 768 x 494 Effective 15,734 / 59.94Hz Inter. H/V Sync. 15,750 / 60Hz LL H/V System Info More than 560TVL (Color) / 600TVL (B&W) Horizontal Resolution... - Page 22 OFF / ON (Area Setting) OFF / ON (Max Level Setting) ALC(Auto Level Control) Auto(DC)/Manual (Level Control) Line Lock OFF / ON (Phase Control) Camera ID OFF / ON (Maximum 54 Each and 2 Line) ATW1/ATW2/AWC/MANUAL White Balance (ATW1 : 2,500 ~ 9,500°K, ATW2 : 2,000 ~ 10,000°K) OFF / ON (Adaptive 3D + 2D) OFF / ON PRESET...
- Page 23 MEMO...
