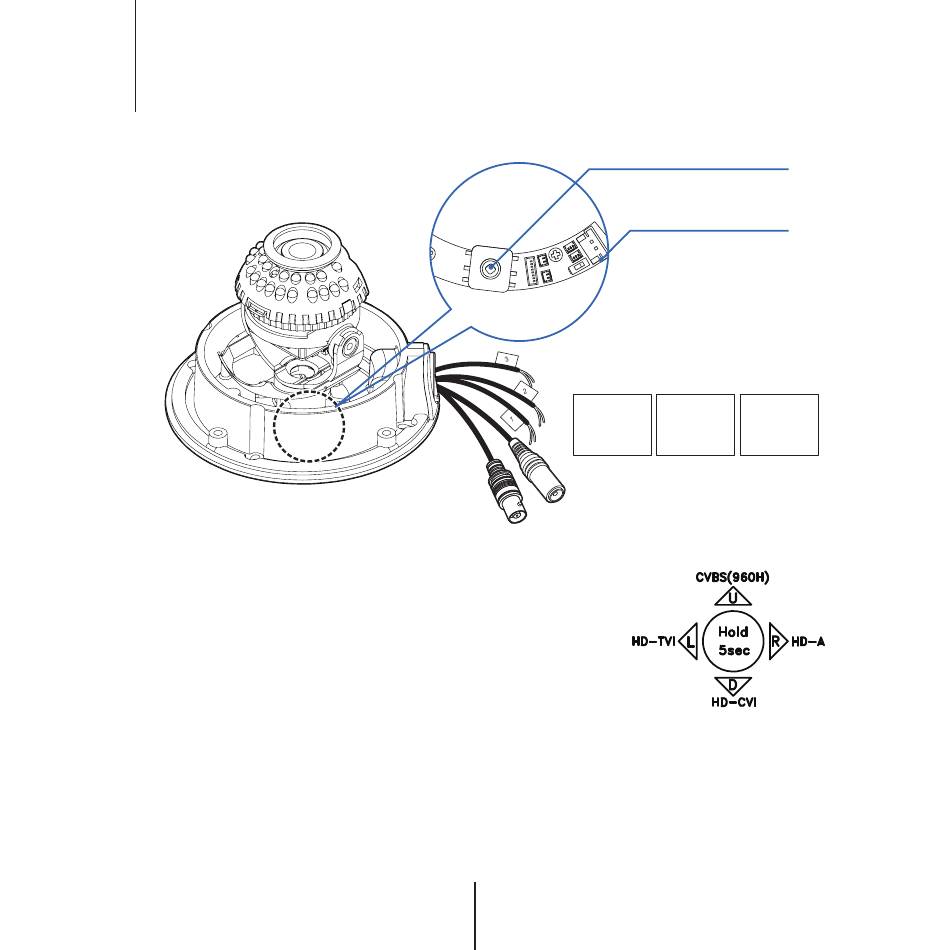

Control Board

- OSD Joystick : The function setting and video output can be adjusted with OSD joystick. (default : HD-A)
Image Mode
Switches to HD-TVI mode when press OSD Joystick to left 5sec or longer.
Switches to HD-A mode when press OSD Joystick to right 5sec or longer.
Switches to CVBS mode when press OSD Joystick to up 5sec or longer.
Switches to HD-CVI mode when press OSD Joystick to down 5sec or longer.
- RS485 Connectors : Connect the camera to a controller or the DVR using RS485.
1) Black Cable : RS485 +
2) White Cable : RS485 -
- UTP Cable : Connect when using UTP video output mode.
Blue +, White -
- Alarm Output Cable : Cable to output Motion Detection signal.
Up
Left
Right
Down
1.
RS 485
BK D+
WH D-
14
OSD Joystick Controller
Test Video Slot
2. 3.
UTP ALARM
BLUE +
WHITE -
