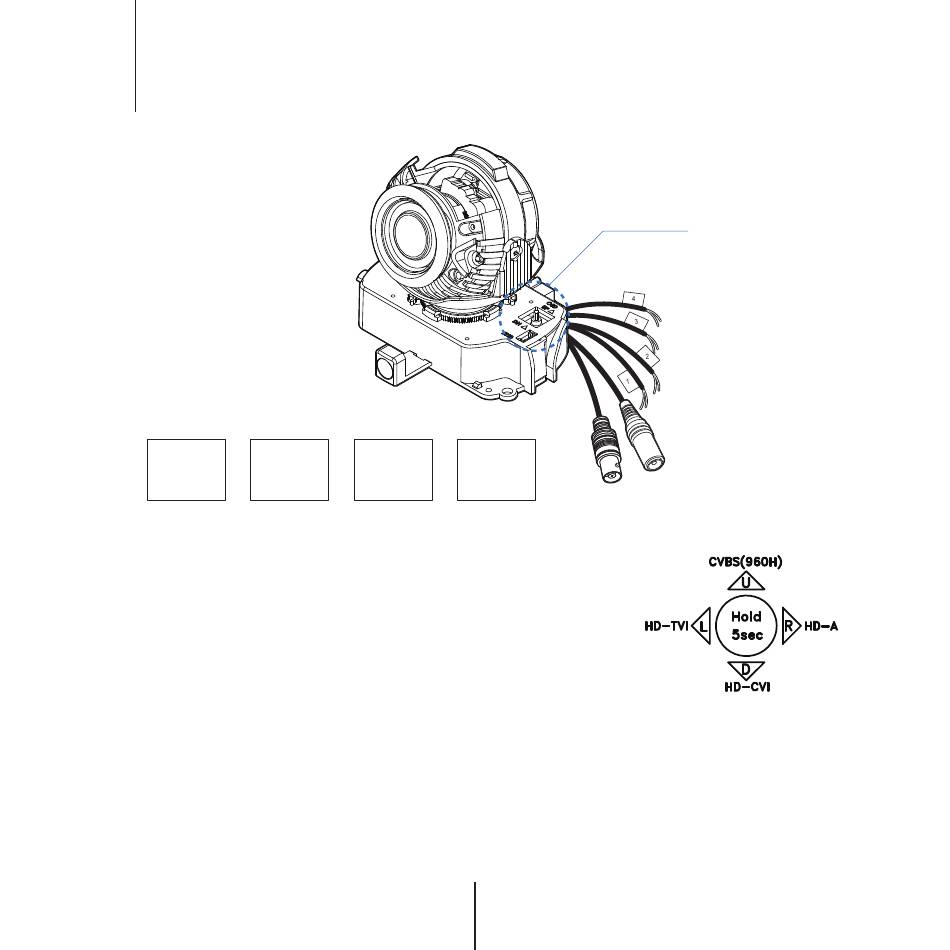

Control Board

1. 2.
RS 485 UTP
BK D+
WH D-
- OSD Joystick : The function setting and video output can be adjusted with OSD joystick. (default : HD-A)
Image Mode
Switches to HD-TVI mode when press OSD Joystick to left 5sec or longer.
Switches to HD-A mode when press OSD Joystick to right 5sec or longer.
Switches to CVBS mode when press OSD Joystick to up 5sec or longer.
Switches to HD-CVI mode when press OSD Joystick to down 5sec or longer.
- RS485 Connectors : Connect the camera to a controller or the DVR using RS485
Black : RS485 +, White : RS485 -
- UTP Cable : Connect when using UTP video output mode.
Yellow : UTP +, Black : UTP -
- Alarm Output Cable : Cable to output Motion Detection signal.
Yellow : Alarm , Blue : GND
- Audio Cable : Support the built-in microphone.
White : Audio, Black : GND
3. 4.
ALARM AUDIO
14
OSD Joystick
